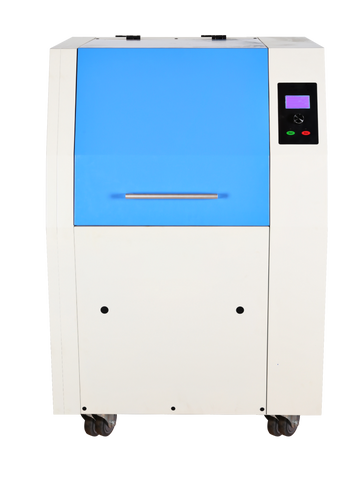

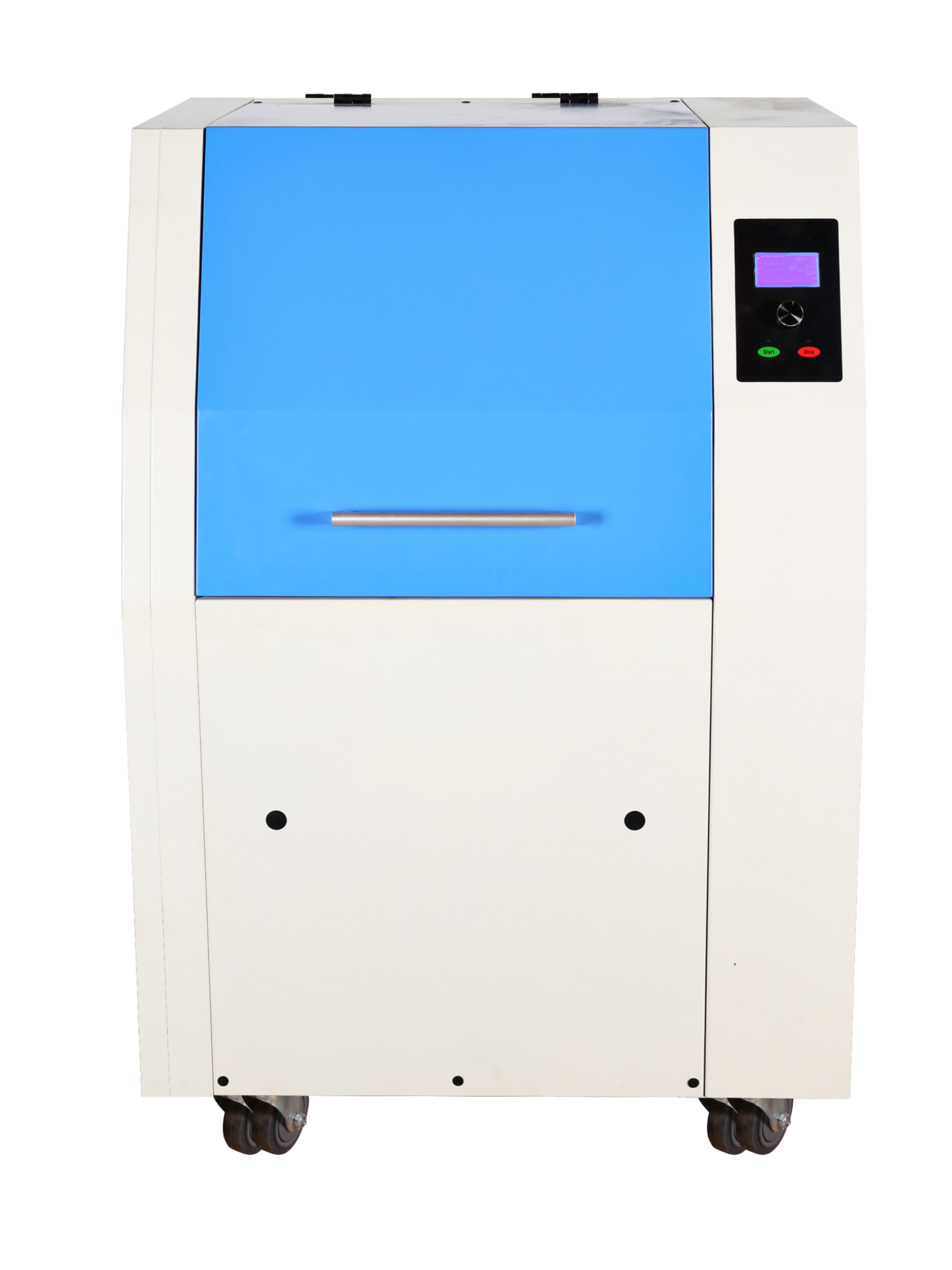

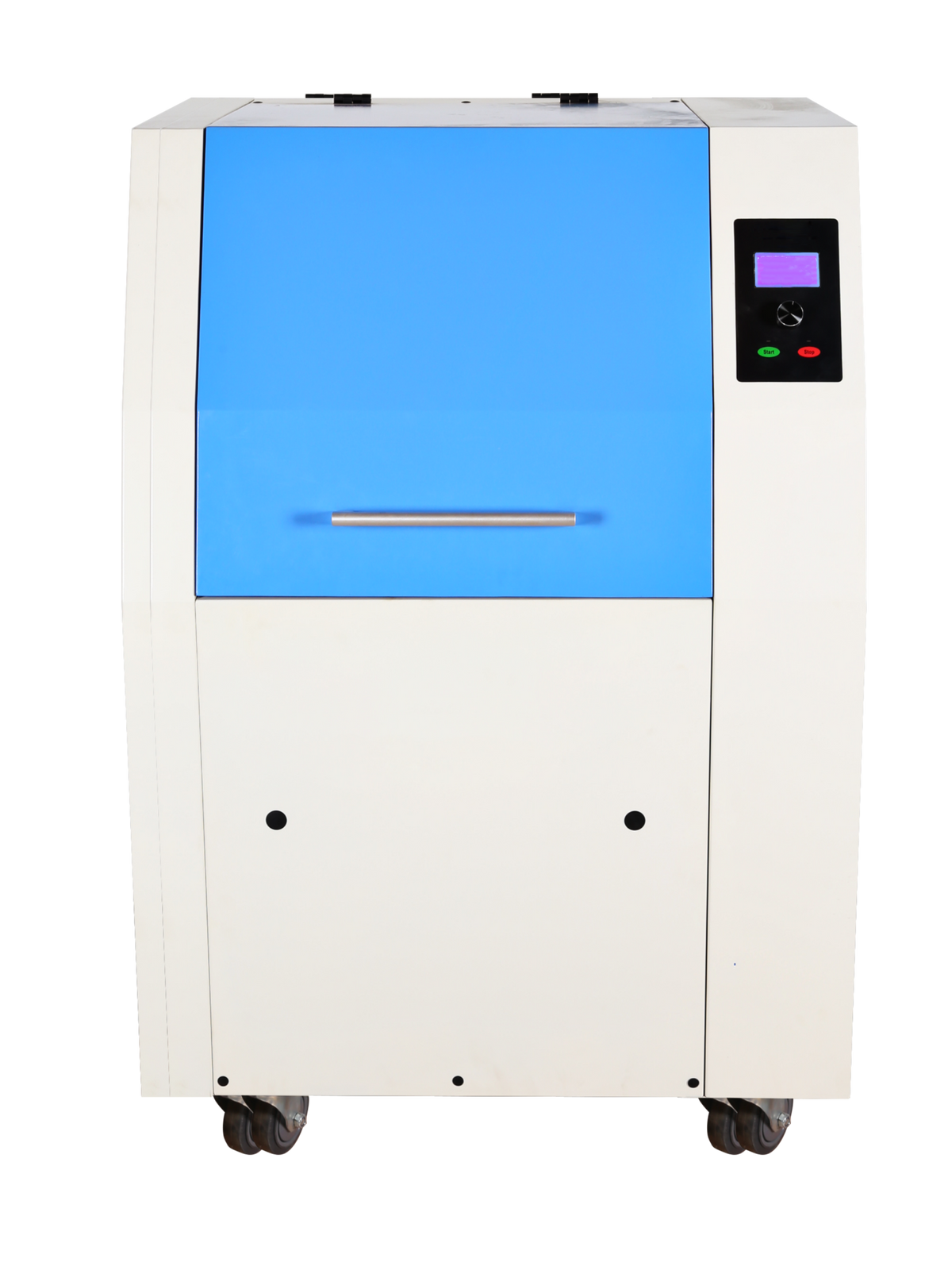

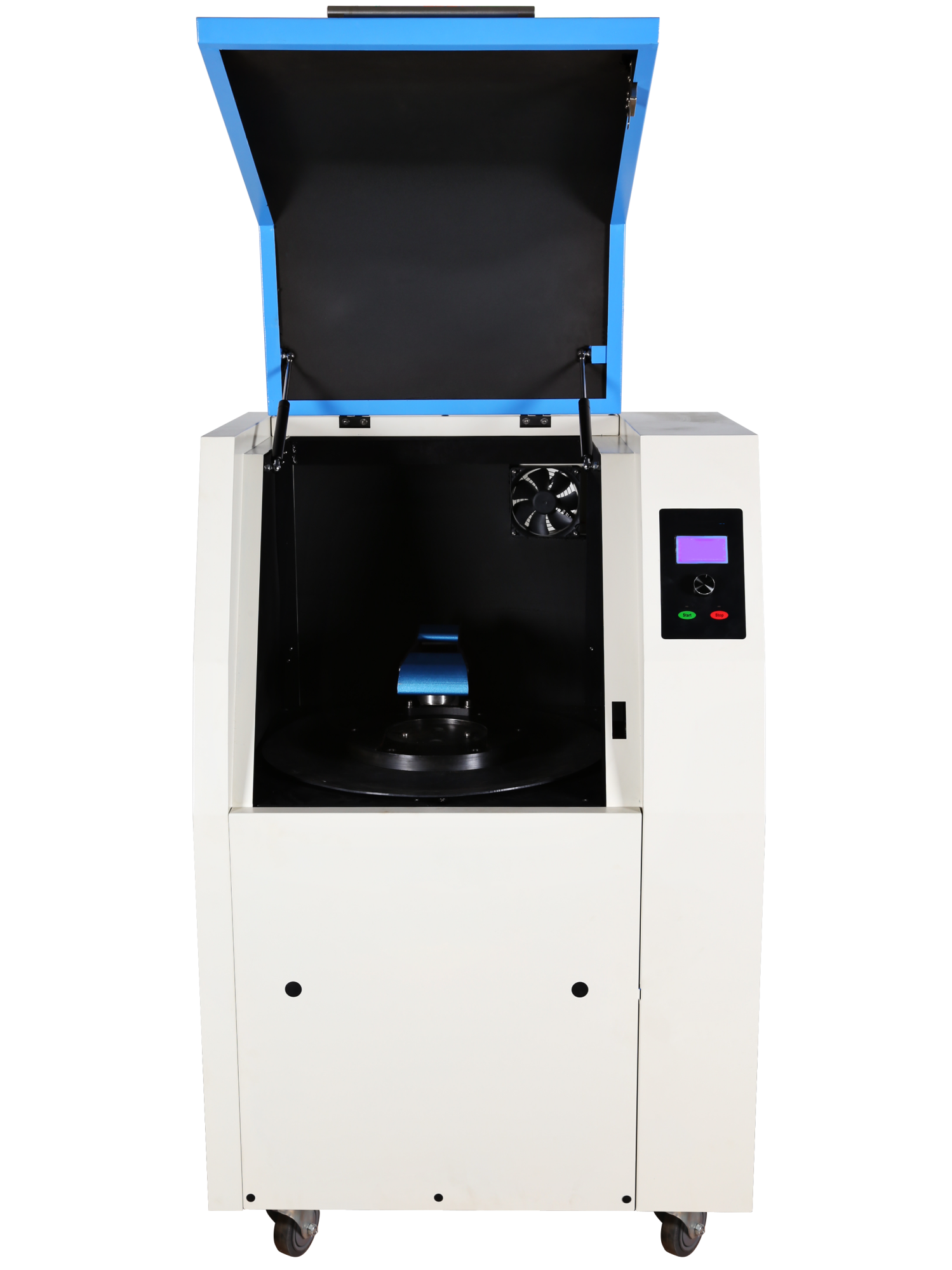

MSE PRO Laboratory Vibratory Disc Mill
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers a Laboratory Vibratory Disc Mill, which is primarily used for sample preparation in spectral analysis. This device is especially suitable for rapidly grinding medium-hard, brittle, and fibrous materials to achieve analytical fineness without any loss.
Contact us today to discuss your needs.
Working Principle

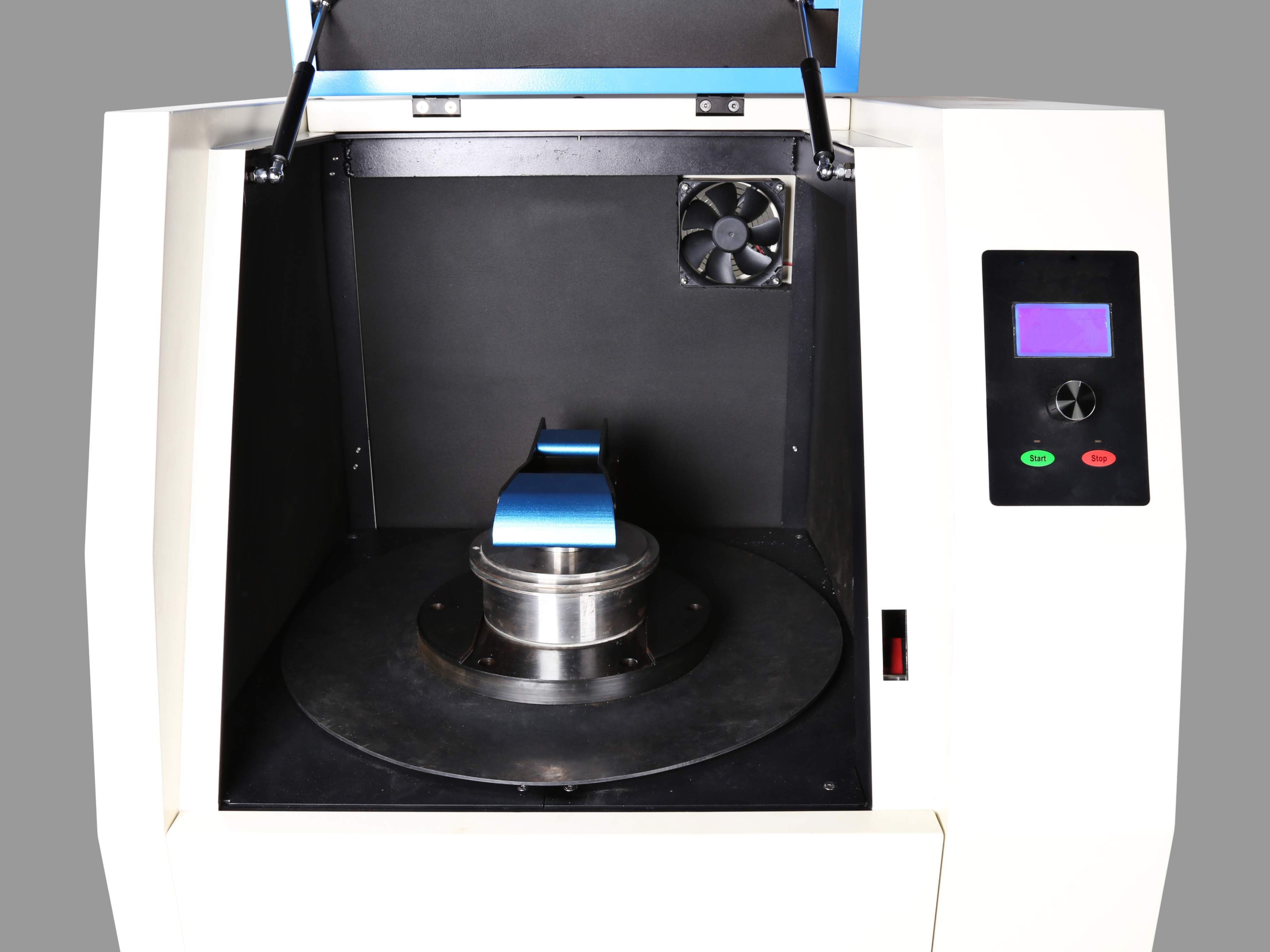

The Vibratory Disc Mill crushes samples through pressure, impact, and friction. The quick-action clamping device securely attaches the grinding set to the vibrating plate. The vibrating plate generates intense three-dimensional vibrations through transmission, resulting in significant impact, friction, and grinding forces acting on the grinding set. These forces are concentrated on the samples, rapidly transforming them into powder.
Features and advantages
-
Extremely short grinding time.
-
High final fineness (d95 < 75μm).
-
Speed: 700-1500rpm, continuously adjustable.
-
Quick-action clamping device for the grinding set.
-
Various types of grinding sets to choose from.
-
Automatic speed reduction to 700rpm with agate recognition.
Applications of Vibratory Disc Mill:
- Ceramics and glass: oxide ceramics, glass
- Building materials: cement, stone, concrete
- Environmental area: soil, paving stone
- Minerals & Metallurgy: coal, coke, corundum, ore, slag
Technical Data
| SKU | MA1127 |
| Feed size | <15mm |
| Final fineness | <75μm |
| Speed | 700-1500rpm |
| Time setting | 00:01-99:59 (min/s) |
| Batch quantity | 20-250g |
| Grinding set volume | 50ml/100ml/250ml |
| Grinding set material | hardened steel/tungsten carbide/agate (speed 700rpm)/zirconium oxide |
| Rated power | 1.5kW |
| Power supply | 110V, 60Hz |
| Instrument size (W*D*H) | 800*655*1255mm |
| Package size (W*D*H) | 1130*1030*1470mm |
| Weight | 277kg |
