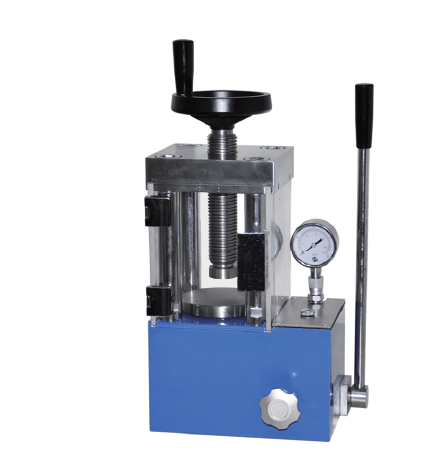

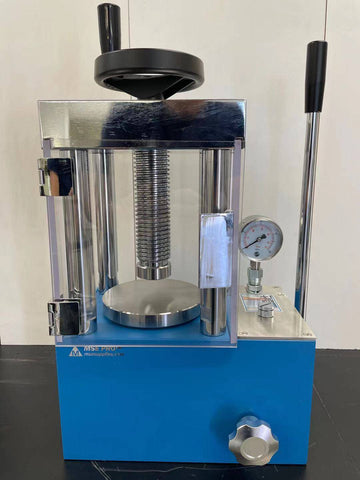

MSE PRO Lab Scale 24-Ton Manual Hydraulic Pellet Press with Safety Shield

  • $ 1,99595


Our lab scale 24-Ton manual hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.

If you need other maximum pressure requirements or customized designs, please contact MSE Supplies.

If you use this press inside a glove box, please check the O-ring seal periodically to avoid oil leak.

    Product SKU # PR0302
    Pressure range 0-24 Metric Tons
    Max pressure 24 Tons
    Diameter of piston 95mm
    Maximum travel distance of the piston 30mm
    Maximum distance between two plates 120mm
    Pressure stability ≤1 MPa/10min
    Sample stage diameter 105mm
    Working area 80mm x 150mm

    245mm x 175mm x 415 mm
    Net weight 65 kg
    Safety shield Polycarbonate safety shield
    Warranty Limited one year warranty, not responsible for the damage caused by improper use
    Note Please clean the press after each use to ensure the best performance and longer life time
