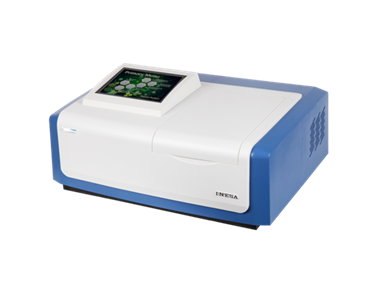

MSE PRO™ L7 Double Beam UV-VIS Spectrophotometer 190-1100nm
L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.
They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
- Full-spectrum scanning
- Linear regression
- Detailed spectrum scanning
- Concentration direct reading
- Time-based kinetics determination
- Peak / Valley detecting
- GOTO λ
- Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
With USB COM port the device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features
- Double beam optical system
- 8-inch color touch-screen
- Automatic zero and full scale adjustment
- Automatic wavelength settings
- Equipped with USB COM port
- UV WIN8 Spectrum Data Processing Software optional
- Thermal plotter optional
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4615 |
|
Photometry |
Double Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Wavelength Range | 190-1100nm |
| Bandwidth | 1.8 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength Repeatability | ≤0.1nm |
| Scanning Speed | Fast-Medium-Slow |
| Wavelength Setting | 8-inch multi color touch-screen |
| Photometric Repeatability |
≤0.15% T 0.001 Abs (0-0.5A) 0.002 Abs (0.5-1A) |
| Photometric Range |
0.0-200.0% T -0.301-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.3% T ±0.002 Abs (0-0.5A) ±0.004 Abs (0.5-1A) |
| Stray Light | ≤0.03%T( at 220nm NaI, 360nm NaNo2 ) |
| Grating | 1200 lines/mm |
| Baseline | ≤±0.002 A(200-1090nm) |
| Noise |
100%（T）noise≤0.15%(T) 0%（T）noise≤0.1%(T) |
| Drifting | ≤0.0009 Abs/h (250nm and 500nm after 2h warm up) |
| Detector | Silicon Photocell |
| Power Requirements | AC220V±22V 50Hz±1Hz, 200W |
| Dimension | 710mm X 590mm X 505mm |
| Weight | 36 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 pcs |
| 2 |
Glass cuvette 10mm |
4 Pcs |
| 3 | Quartz cuvette 10mm | 2 pcs |
| 4 |
Power cable |
1 Pcs |
| 5 |
Fuse |
2 Pcs |
| 6 |
Cuvette holder 10mm |
1 Pcs |
Optional Accessories
- UV WIN8 Spectrum Data Processing Software
- Thermal Plotter
