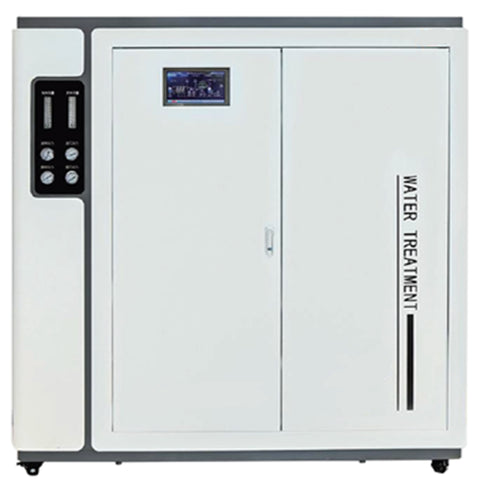

MSE PRO Industrial Pure Water/Ultra Pure Water Deionized Water Purification System
SKU: MA0066201
MSE PRO™ Industrial Pure Water/Ultra-Pure Water Deionized Water Purification System
The Industrial water purification machine is used to supply pure water for industrial production lines.
Application Scopes:
- 7-inch touch color screen control interface, manual automatic mode switch.
- The host is built in a 200L 304 stainless steel level control tank.
- Built-in large flow frequency conversion transmission module, flow rate, water pressure automatic adjustment to meet all kinds of water demand.
- Built-in self-flushing type large capacity sand carbon tank, tank diameter 25cm height 1.6 meters. Pretreatment is used for 1.5 years without core change
- Water and electricity separation technology, small square box fully sealed electric control system.
- The working state of the equipment can directly see the real-time online monitoring of the working pressure and post-pump pressure, and the online monitoring of water inlet and double conductivity of water quality.
- The wheel foot strip at the bottom of the equipment can be moved and fixed quickly.
- Side and back buckle type removable door panel to facilitate the replacement of later consumables.
- Double door design internal structure is clearly visible for maintenance and equipped with a special key.
- Ergonomic design, beautiful machine meets GLP requirements.
- Gift of the TDS water quality test pen.
- Equipped with super-large capacity purification tank supplies are more durable.
Technical Parameters:
| Water rate | 250 liter per hour |
| Production speed | 5 L/min |
| The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃, TDS<200ppm |
| RO water Parameter | |
| Ion rejection rate | 97%-99% (when using a new RO membrane) |
| Organic matter rejection rate | 99% when MW>200 Dalton |
| Particle and bacterial rejection | 99% |
| Application | Clean glassware |
| EDI water Parameter (ASTM TYPE II grade water) | |
| Resistivity (25℃) | 10-16 M Ω. cm @ 25 ℃ |
| Conductivity | <0.1 μ S/cm |
| Application | For general biological experiments, microbial medium with water, chemical and biochemical reagent configuration, photographic film washing, stability test chamber, meteorological experiment equipment, Hydrogen generator, humidifier and other instruments continue to supply water. |
| Electrical requirements | 110-240V/50-60Hz, 48-72W |
Process:
