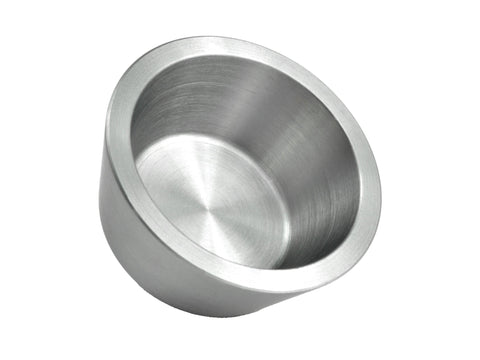

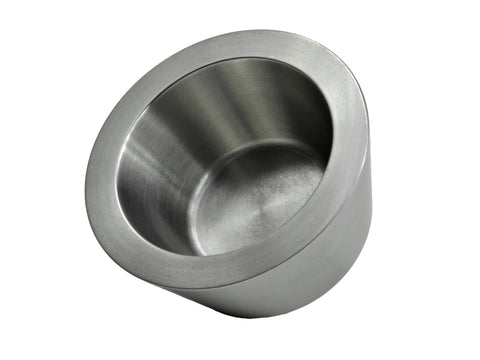

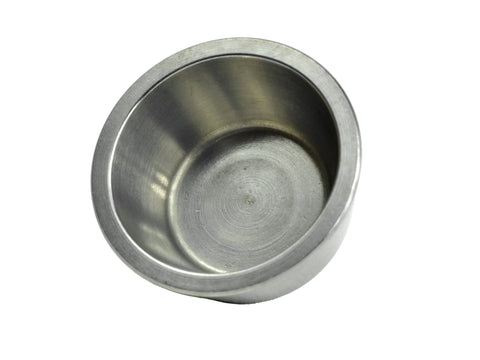

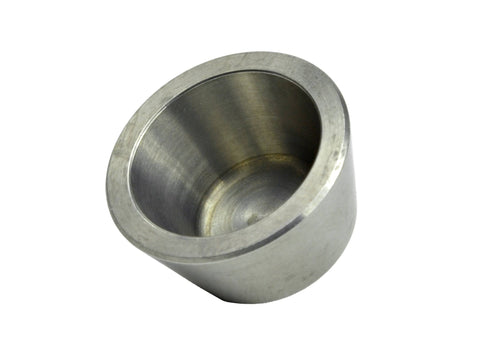

MSE PRO High Purity (99.95%) Molybdenum (Mo) Crucibles
High purity Molybdenum has a high melting point, high-temperature strength, low outgassing, and good machinability. Molybdenum crucibles are mainly used in the metallurgical industry, rare earth industry, monocrystalline silicon and crystal growth. Molybdenum crucibles offered by MSE Supplies are made of 99.95% high purity Mo and are ideal for sapphire crystal growth and rare-earth melting.
Powder processing is recommended before the calcination. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.
Standard Products and Specifications
Material: Molybdenum (99.95%)
Melting point: 2630 ℃
Recommended fill rate: 67~75%
Recommended use temperature: <1700 ℃, continuous heating above 1700 ℃ will shorten the crucible life time.
Recommend to use under inert gas. Use under air will cause the oxidation and shorten the crucible life time.
|SKU#||Capacity (mL)||Top Diameter A (mm)||Height B (mm)||Wall thickness C (mm)||Angle D (°）||Comparable to|
|JA1326||2||21.5 (0.846")||11.8 (0.465")||2.4 (0.093")||15|
|JA1327||7||28.6 (1.125")||13.2 (0.52")||2.4 (0.093")||15||Krut J. Lesker EVCEB-23MO|
|JA1328||15||37.6 (1.48")||17.0 (0.67")||3.2 (0.125")||15||Krut J. Lesker EVCEB-13MO|
|JA1329||40||51.6 (2.03")||25.9 (1.02")||6.4 (0.25")||15||Krut J. Lesker EVCEB-6MO|
Molybdenum Crucible dimensions can be customized upon request.
