MSE PRO GFET Sensor Chip for Measurements in Liquid Medium
SKU: LS0067
MSE PRO™ GFET Sensor Chip for Measurements in Liquid Medium

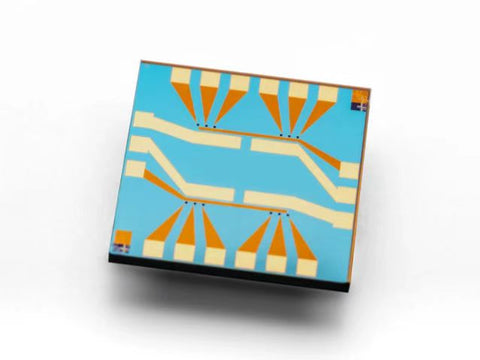

MSE PRO™ provide GFET Sensor Chip for Measurements in Liquid Medium. The chip is designed for measurements in liquid medium. The new version provides 4 independent set of graphene devices, each set with 3 individual channels, with encapsulation on the metal pads to avoid degradation and reduce leakage currents; the probe pads are located near the periphery of the chip. It also includes a non-encapsulated electrode at the center of the chip, which allows liquid gating without the need of an external gate electrode (such as Ag/AgCl probes). This device architecture enables each one of the set of devices to be modified individually, to obtain a multiplexed measurement.
Typical Specifications
- Growth method: CVD synthesis
- Graphene transfer: Polymer assisted transfer
- Chip dimensions: 10 mm x 10 mm
- Substrate: Si/SiO2
- Substrate thickness: 675 μm
- Resistivity of Si substrate: 1-10 Ω.cm
- Gate oxide thickness: 90 nm
- Metallization: 50nm Au-based Contacts
- Encapsulation: 50 nm Al2O3
- Number of GFETs per chip: 12 in parallel
- Optical Yield: ≥75
- Average field-effect mobility (back gating): >1000 cm2/V.s
- Average Dirac point (back gating): <25 V
Absolute Maximum Ratings
- Maximum gate-source voltage (liquid gating in PBS): ± 2V
- Maximum gate-source voltage (back gating): ± 50V
- Maximum temperature rating: 150 °C
-
Maximum drain-source current density: 107A.cm-2
Quality Control
All our samples are subjected to a rigorous QC in order to ensure a high quality products.
- Optical microscopy inspection of all the devices
- Raman Spectroscopy of each fabrication batch
- Electrical characterization via back gating of each fabrication batch
- AFM of each fabrication batch
Applications
Graphene field-effect transistors (GFETs) have unprecedented sensitivity to the surrounding environment and is an ideal transducer for a variety of sensing applications. Depending on the application, GFETs can be tuned to be sensitive only to the stimulus of interest and have shown breakthrough performance in areas such as graphene device research, chemical sensing, bioelectronics and biosensing.
