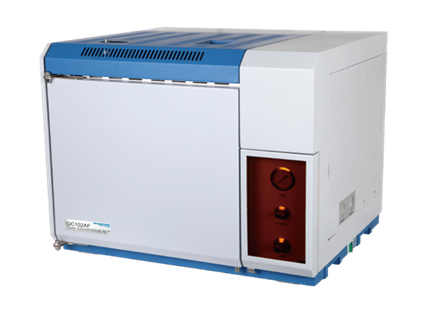

MSE PRO Gas Chromatograph

MSE PRO™ Gas Chromatograph

This gas chromatograph applies the computer reverse control technology and can conduct remote detection and fault diagnosis, equipped with a flame ionization detector (FID).

Main Technical Features

• PC control, user-friendly interface, and easy to operate.
• Temperature control is of high accuracy (better than ±0.1℃). Heating speed is fast and overshoot temperature is small.
• Self-diagnosis, power protection, oven over-temperature protection, and automatic ignition.
• It can accurately display the temperature control settings, actual value, and FID amplifier sensitivity.
• The single gas system and precise scale pneumatic control valve contribute to excellent reproducibility and stability and can perform analysis of packed column.
• Packed column: on-column injection, instantaneous vaporization injection, gas injection.
• Open computer system and NJ2000 chromatography workstation can work together to process data.
• Large capacity oven (300mm×280mm×270mm) facilitates the installation of packed column.
• Built-in heating wire structure

Temperature Control

• Temperature area: column oven, sampler, detector
• Temperature range: 15℃ ~399℃ above room temperature (increment: 1℃)
• Temperature accuracy: better than ±0.1℃ (measured at 200℃)

Flame Ionization Detector (FID)

• Detection limit: Dt≤1×10^-10 g/s (octane and hexadecane)
• Baseline drift: ≤2×10^-12 A/h
• Linear range: ≥10⁶
• Max. limit temperature: 400

Specifications

• Voltage: 220V~±22V 50Hz±0.5Hz
• Power: ≤1500W
• Package size: 945mm×655mm×750mm
• G.W.:70kg

Optional

• NJ2000 chromatography workstation
• Packed column
