MSE PRO Ga2O3 Beta Gallium Oxide Wafer and Crystal Substrates Semi-insulating Type

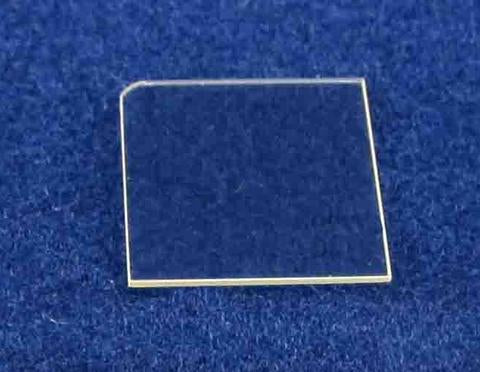

Ga2O3, Beta Gallium Oxide Wafer and Crystal Substrates, semi-insulating type, prime grade
Product SKU#: WA0502 (1 inch diameter), WA0501 (5 mm x 5 mm)
Specifications:
Crystal structure: Monoclinic
Lattice parameter:
a = 12.225
b = 3.040
c = 5.809
Melt point (°C): 1725°C
Density: 5.95 g/cm3
Dielectric constants: 10
Band Gap: 4.8 - 4.9 eV
Conductivity: Semi-insulating, Fe-doped
Electrical Resistivity: >1E6 Ohm-cm
Electron Mobility: >100 cm2/V-s
Breakdown Voltage (V/cm): 8 MV/cm
Available Size: diameter 25.4 +/- 1 mm (1 inch diameter standard), 5 mm x 5 mm. Special sizes (smaller than 1 inch diameter) are available upon request.
Grade: Prime grade
Edge Exclusion Area: 1 mm
Thickness: 450 +/- 50 um
Polishing: Epi-ready, RMS < 0.5 nm on Ga face, optical polish on O face
Crystal Orientation: (010) with off cut of 1~2° +/- 0.5°
Typical XRD peak width of (020): < 100 arcsec
Packaging: Packing in class 1000 clean room with class 100 grade plastic bag
Beta gallium oxide (ß-Ga2O3) is a wide bandgap semiconductor material, and it has been used for deep ultraviolet (UV) photodetectors and high speed & high power electronics. Its wide bandgap of 4.8 - 4.9 eV, high breakdown field of 8 MV/cm, high dielectric constant and good electron mobilities can be translated into a high voltage Baliga figure of merit (HV-BFOM) that is > 3000 times greater than that of Si, > 8 times greater than that of 4H-SiC, and > 4 times that of GaN. In addition, its high frequency Baliga figure of merit is ~150 times that of Si, ~3 times that of 4H-SiC, and 50% greater than that of GaN.
Useful References:
Gallium oxide as host material for multicolor emitting phosphors
