MSE PRO Fully Automatic Rockwell & Superficial Rockwell Hardness Tester with XYZ Motorized Stage

MSE PRO Fully Automatic Rockwell & Superficial Rockwell Hardness Tester with XYZ Motorized Stage

1. Introduction

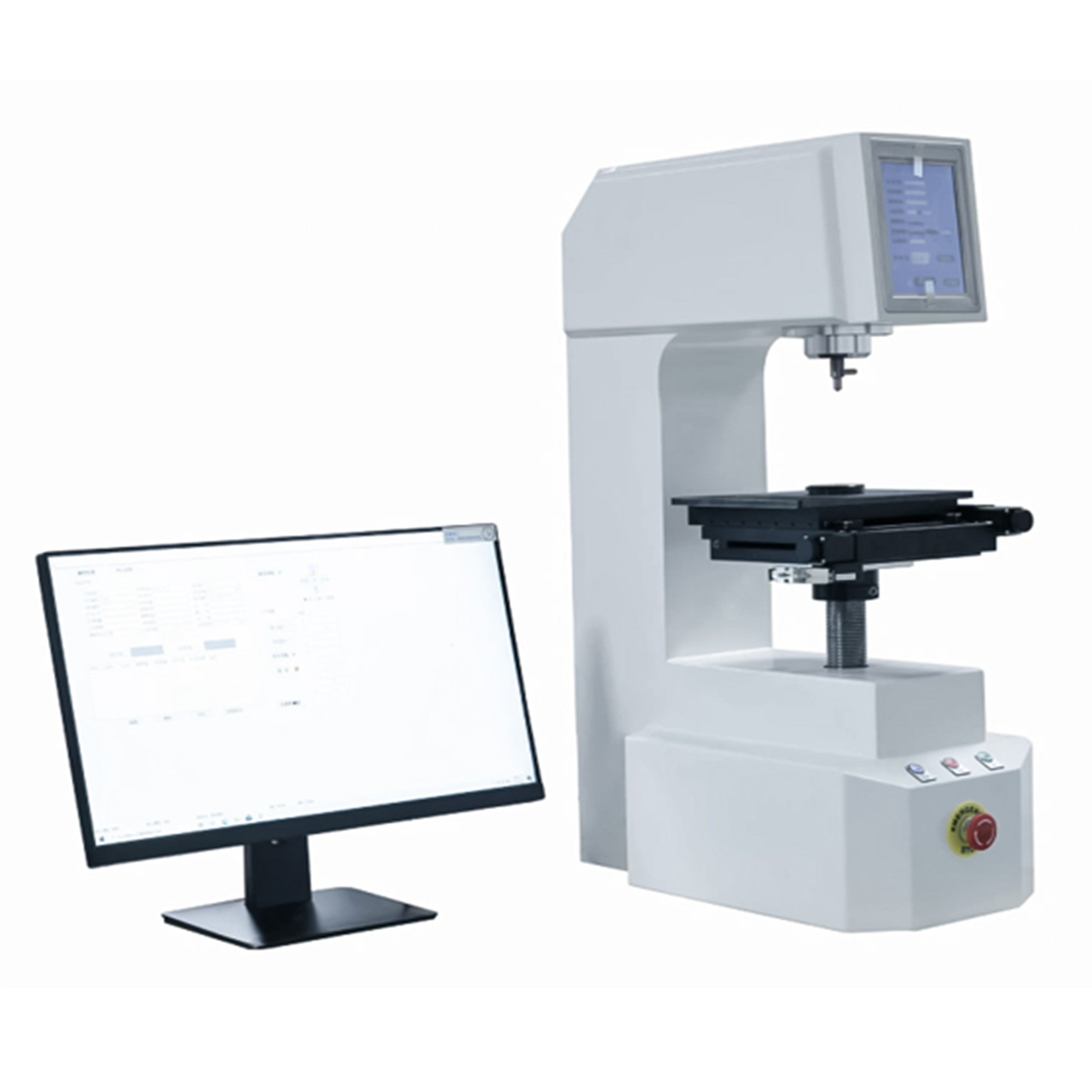

The MSE PRO Fully Automatic Rockwell & Superficial Rockwell Hardness Tester with XYZ Motorized Stage is an advanced hardness testing system designed for high-efficiency, high-precision automatic measurement. It supports both Rockwell and superficial Rockwell hardness scales, making it suitable for a broad range of metal materials and components. The system features automatic Z-axis lifting and motorized X/Y stage movement, allowing fully automated multi-point testing across a 100 mm × 100 mm area. Once test points are set, the instrument can automatically rise, apply the load, unload, display the hardness value, and move to the next position, greatly improving testing efficiency for batch inspection. With automatic correction, database storage, hardness conversion, and Excel data export, it is ideal for laboratories, research facilities, and industrial quality control applications.

2. Key Features

• Supports all Rockwell and superficial Rockwell hardness scales for broad application flexibility
• Fully automatic operation with Z-axis lifting and motorized X/Y stage movement for multi-point testing
• Automatically loads, unloads, displays hardness values, and moves to the next measurement point for efficient batch testing
• Measures selected points within a 100 mm × 100 mm range, with X/Y stage repeatability of 0.002 mm
• Powerful database functions with hardness conversion, tolerance setting, alarm function, and automatic saving of parameters and results
• USB Excel export and long-term software upgrade capability for convenient data handling and future expansion

3. Specifications
