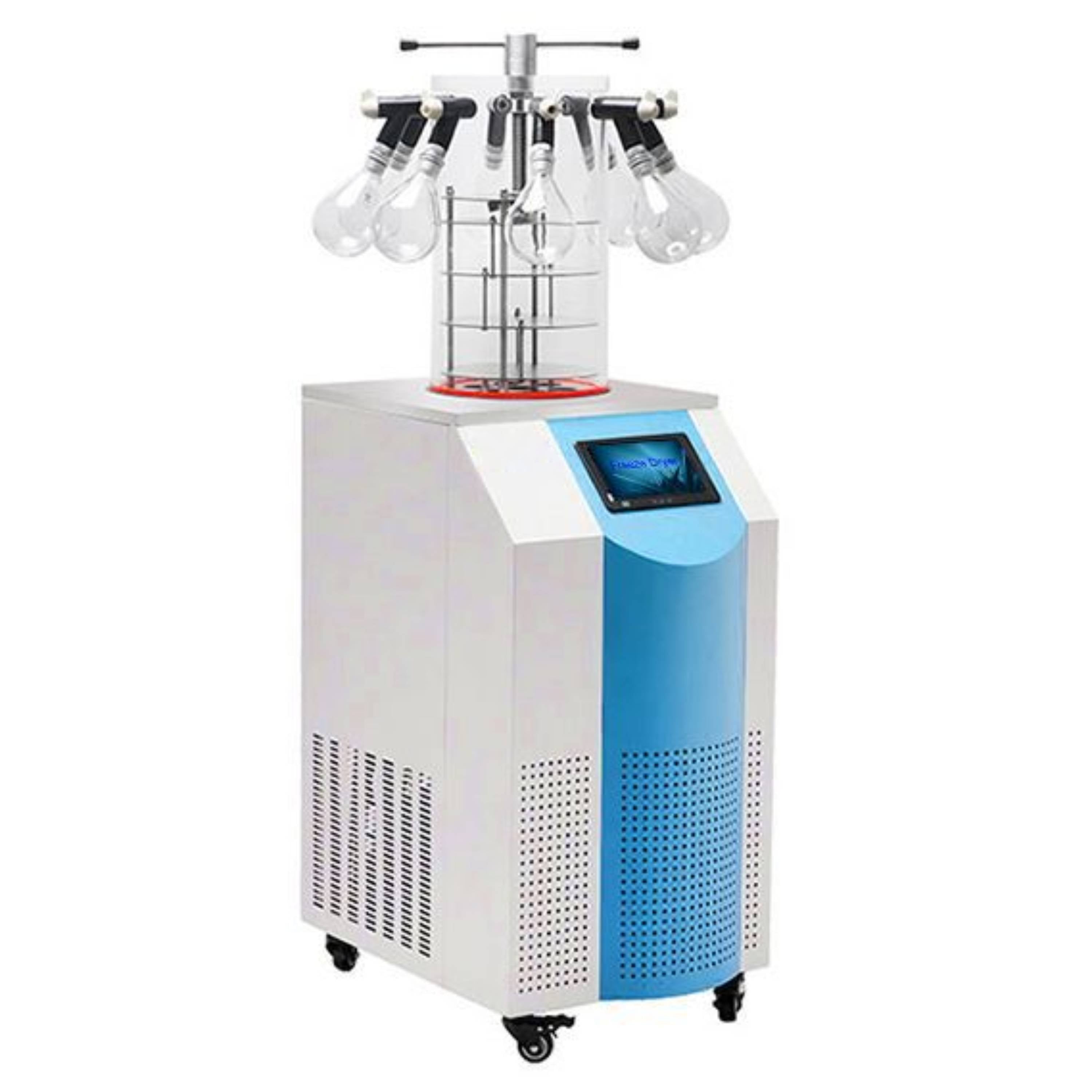

MSE PRO Floor Freeze Dryer V‑2, Manifold Type, ‑80 °C, 6kg/24h Capture Capacity
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Floor Freeze Dryer V‑2, Manifold Type, ‑80 °C, 6kg/24h Capture Capacity
Description
Key Features:
- Final condenser temp (℃): -55 or -80
- Freeze drying area (m2): 0.135-0.27
- Ice condenser capacity (Kg/24h): 6
- Material loading capacity(ml): 1350-2700
- Control System: microprocessor, large touch screen
- 7 inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
- Touch panel with the design conforms to ergonomics and operate more comfortably.
- Compact bench-top design with a small footprint.
- With USB interface to export the data, convenient for user information management.
- Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing
Reliability:
- High performance compressor, cascade system, high cooling efficiency and fast cooling speed.
- Condenser and operation panel are made by stainless steel.
- Drying chamber is transparent which is visual and safe.
Applications:
- The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
- 2Widely used in drugs, biological products, chemical and food industries.
- On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Optional:
- Optional for Condenser electrical heating defrost function.
- Optional for rack heating which is help to test in production.
Specifications:
|
Model |
MA0067966 |
|
|
Type |
Standard chamber with 8 port manifolds |
|
|
Freeze Drying Area (m2) |
0.18~0.27 |
|
|
Tray (Qty) |
Standard configuration includes 4 layers, and up to 6 layers can be optionally selected |
|
|
Tray Dimensions (Diameter*H)(mm) |
Φ200*20 |
|
|
Height Between Trays(mm) |
81/51 |
|
|
Condenser Temperature (℃) |
-60 |
|
|
Condenser Capacity (L) |
28 |
|
|
Condenser Dimensions (Diameter*H)(mm) |
Φ300*420 |
|
|
Vacuum Degree(no-loading) (Pa) |
≤5 |
|
|
Ice Condensing Capacity (kg/24h) |
6 |
|
|
Loading Capacity/ Shelf (mL) |
450 |
|
|
Total Loading Capacity of Material Tray (mL) |
1800~2700 |
|
|
Drying Chamber Dimensions (standard) |
Circle:Φ300mm; Height:Φ450mm |
|
|
Total Qty. Of Vial Φ22 |
270 |
|
|
Total Qty. Of Vial Φ16 |
555 |
|
|
Total Qty. Of Vial Φ12 |
990 |
|
|
Refrigerant |
CFC-free |
|
|
Standard Accessories |
Vacuum pump 2L/s,8m³/h, material tray, material rack, PC cover, nitrogen gas filling valve, oil mist filter Conical-mouth flask 500mL*8 pcs, switch valve*8 pcs |
|
|
Optional Function & Accessories |
Electric defrost function 800mL wide-mouth flask |
|
|
Consumption |
1.2kW |
|
|
Electricity |
AC220V/50Hz |
|
|
External Dimensions(W*D*H)(mm) |
560*710*1390 |
|
|
Shipping Dimensions(W*D*H) |
Main body |
790*630*1180mm |
|
Drying chamber |
410*410*640mm |
|
|
Vacuum pump |
220*580*370mm |
|
|
Gross Weight |
150kg |
|
