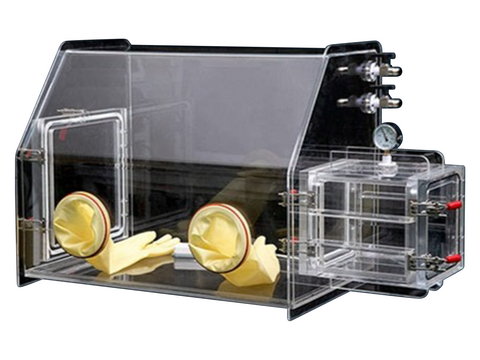

MSE PRO Economy Compact Laboratory Two Port Acrylic Glove Box with Airlock Chamber
SKU: GB0010
MSE PRO™ Economy Compact Laboratory Two Port Acrylic Glove Box with Airlock Chamber
The acrylic glove box is an ideal sealed solution for handling delicate materials or hazardous chemicals, due to its inert gas pumping, cleanliness, low-oxygen and low-moisture environment. Offering a low-cost alternative to stainless steel designs, this glove box serves multiple purposes.
This equipment is not suitable for use with corrosive organic reagents. The minimum achievable water and oxygen levels are 300–400 ppm, which makes it unsuitable for high-end applications such as handling battery powders.
Please note acrylic glovebox is considered as consumables and consumable products are nonrefundable or eligible for return. Quality issues or concerns must be reported upon delivery.
MSE Supplies offers different sizes of Acrylic Glove Box. Please contact us for more information.
Specifications:
| SKU# | GB0010 |
| Material | Acrylic (PMMA) |
| Main Chamber | |
| Dimensions (mm) | 1000W x 500D x 500H |
| Material Thickness (mm) | 10 |
| Chamber Pressure (Pa) | +/-1000 |
| Gloves Port Size (mm) | ⌀140 |
| Gloves Length (mm) | 600 (Rubber) |
| Door Size (mm) | 300D x 300H (open outwards) |
| Ball Valves (mm) | ⌀8 (2pcs) |
| Ball Valve Material | SUS304 |
| Power Pocket (pc) | 1 inside |
| Airlock Transfer Chamber | |
| Dimensions (mm) | 240W x 240D x 240H |
| Max. Vacuum Degree (Mpa) | -0.1 |
| Ball Valves (mm) | ⌀8 (2pcs) |
| Pressure Gauge (pc) | 1 |
Accessories are available at extra cost, please contact us.
| Vacuum Pump |
MA0757 |
| Humidity Display/Controller |
1-99% RH |
| Oxygen Display/Controller | 100ppm-21% |
| Pressure Automatic Controller | +/-2500Pa |
