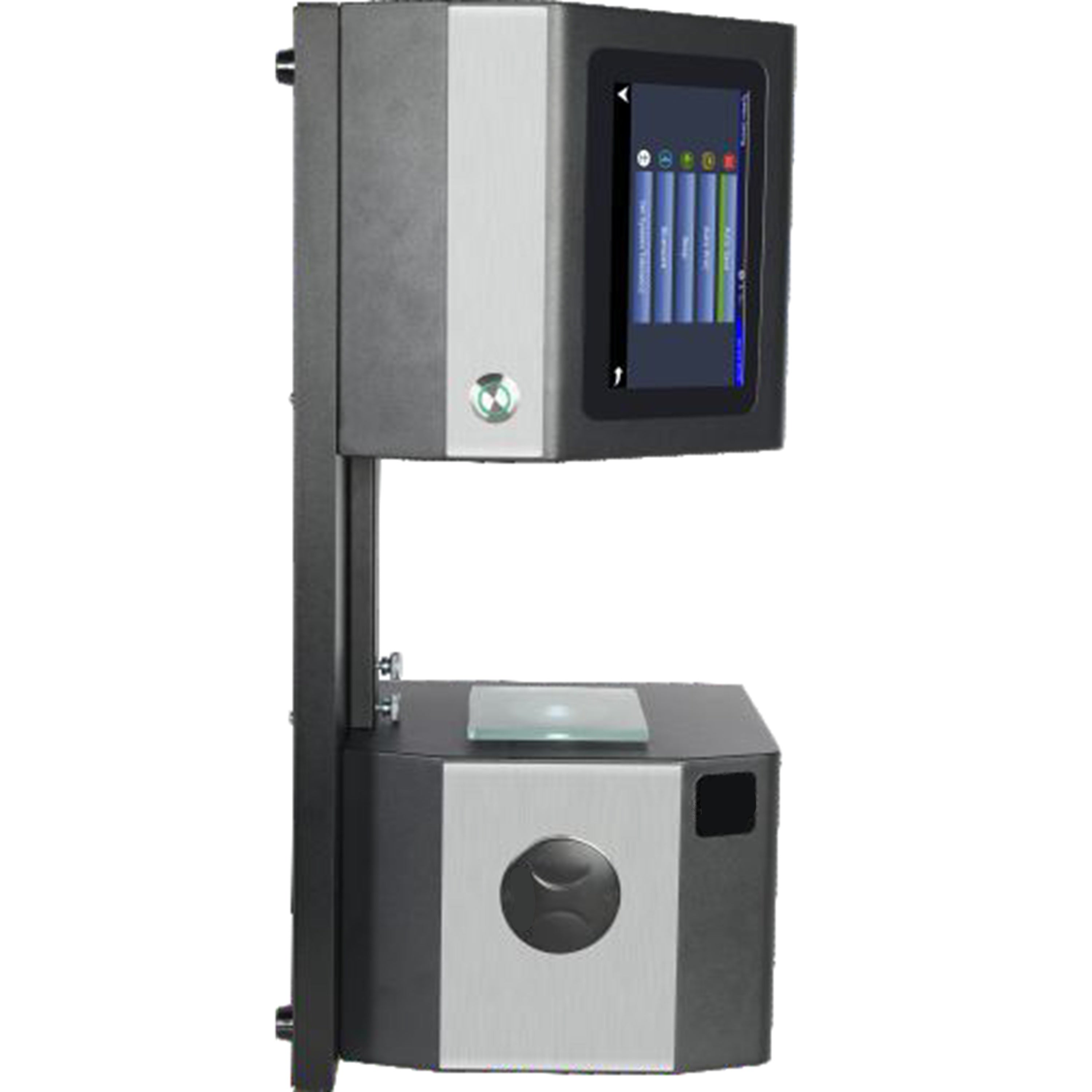

MSE PRO™ Desktop Haze Meter (Profession Haze/Transmittance Measurement)
MSE Supplies offers a haze meter (MA7021) can easily achieve ASTM D1003 non-compensation method, full light transmittance, haze test. Open sample bin can be vertically and horizontally tested to accommodate more sample to be tested. MA7021 haze meter uses a PDF array detector to meet the CIE V(λ)2-degree visual response. The compensation method can be used to measure the light transmittance and haze with high precision and repeatability.
MSE supplies offers various Haze/Transmittance meter with varying accuracy and specifications as well as other optical equipment, please contact us for more information.
Technical Specifications:
| Model | MA7021 |
| Optical Geometry | Transmission: 0/D (parallel light illumination, diffuse reflection reception) |
| Standards compliant | ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K7136 |
| Integrating Sphere Size | Ø 154mm |
| Illuminant | LED lighting |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Senso |
| Wavelength Range | 400–700nm (wave length can be customized) |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Transmittance Range | 0–100% |
| Measuring Aperture | Ø20mm / Ø15mm / Ø8mm / Ø4mm (Choose one) |
| Sample Size | The Thickness is less than 105mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy |
| Color Difference Formula | ΔE*ab, ΔE*94, ΔE*cmc(l:c), ΔE*00 |
| Other Colorimetric Data | Haze (ASTM D1003/1044, ISO 13468), Transmittance T(ISO), Transmittance T(ASTM), WI (ASTM E313, CIE, ISO, AATCC, Hunter), YI (ASTM D1925, ASTM E313), Absorbance, Pt-Co index, Gardner index, Clarity test |
| Observer Angle | 2° & 10° |
| Illuminants | D65, A, C, D50, D55, D75, F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, CWF, DLF, TL83, TL84, TPL5, U30 |
| Displayed Data | Spectral graph, sample chromaticity value, color difference value/graph, chromaticity graph, color simulation, pass/fail result |
| Measuring Time | About 1.5s |
| Precision | 0.01 |
| Repeatability | Ø20mm Caliber; <0.05 (After the instrument is warmed up and corrected, the standard devaition value of the standard haze sheet with a haze of about 40 is tested at an interval of 5s) |
| Inter-instrument Error | Ø20mm Caliber; <0.4 (After the instrument is warmed up and corrected, test the standard devaition of the haze standard haze sheet and the reference value at an interval of 5s) |
| Size (L×W×H) | 487 × 260 × 298mm |
| Weight | About 33.0 kg |
| Power Supply | 80-240V, 60Hz |
| Light Source Device Life | 5 years, more than 3 million measurements |
| Display | 7” TFT Capacitive Touch Screen |
| Data Port | USB & Print serial port, Bluetooth |
| Data Storage | Standard 5000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Environment | Temperature: 0–40°C; Humidity: 0–85% (No Condensation) |
| Storage Environment | Temperature: –20–50°C; Humidity: 0–85% (No Condensation) |
| Standard Accessory | Power adapter, manual, quality management software (download from official website, data cable, 0% calibration box, measuring caliber |
| Optional Accessory | Micro printer, test fixture, standard haze film, foot switch |
| Notes | The specifications are subject to change without notice |
