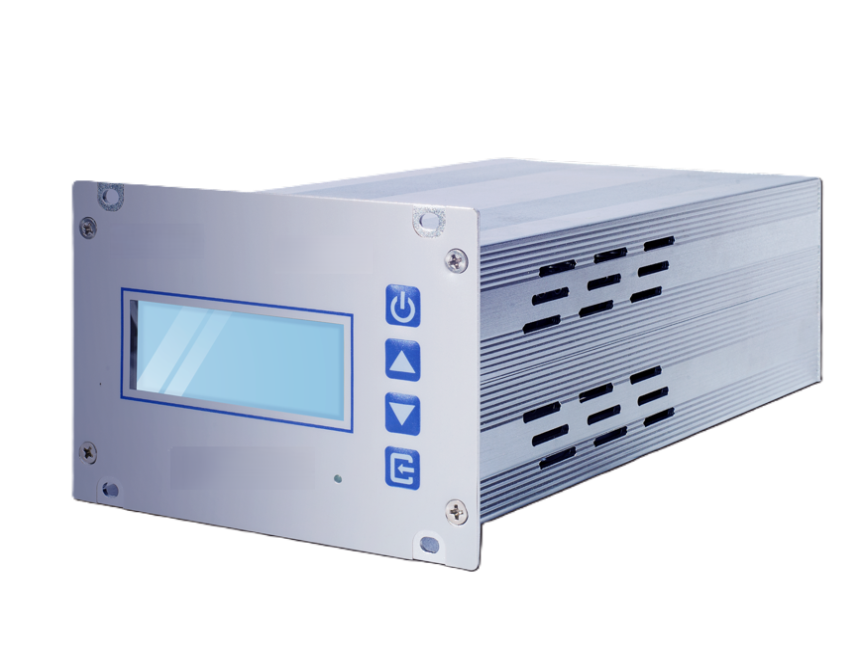

MSE PRO Compact Vacuum Pump Controller, Overvoltage Protection, Power 240W
Regular price
$ 3,070.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ Compact Vacuum Pump Controller, Overvoltage Protection, Power 240W
Functions：
| Start/Stop | Available with Key panel , external control terminals and computer |
| Display | In the front panel: Output frequency, Output current, Output voltage, error type and function code, operation code and TMP model, 2 separate LED lights indicate the states of Electrification and Error. |
| Protection | In case of undervoltage, overvoltage, overcurrent, overheat, overload, current output limit, overcurrent and overheat protection, Password error, external interference protection |
| Working environment | Facility environment: no highly corrosive gases and dust, Temperature: -10℃～＋50℃ Humidity:＜90% ( no condensation), Vibration Strength: ＜0.5g (gravity acceleration) |
Specification:
| Input Voltage(V) | 110VAC±10％ |
| Output Frequency(Hz) | 47-63 |
| Power(W) | 240 |
| Output Power ( V/DC) | 24VDC±5% |
| Display | LED |
| Work Environment Temp(℃) | 5-40 |
| Humidity (%) | 80 |
| Weight( kg) | 2.6 |
Note: This controller can only be used with designated products
