MSE PRO Binocular Biological Microscope
SKU: BB0337

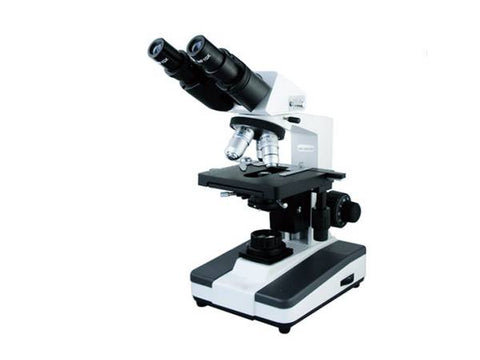

MSE PRO™ Binocular Biological Microscope
The MSE PRO™ Binocular Biological Microscope is a cutting-edge optical instrument, engineered to deliver precision and ergonomic comfort for laboratory, educational, and research applications. It features compensation-free binocular and trinocular heads, both inclined at 30° with 360° rotation, and an inter-pupillary adjustment range of 55–75mm for enhanced user adaptability. Its optical system comprises high-quality achromatic objectives (4X, 10X, 40X, 100X oil) and wide-field eyepieces (P10X/18mm, P16X/11mm optional) to ensure crystal-clear magnification and superior detail. The double-layer mechanical stage with a large surface area (155x145mm) provides precision positioning with an 80x50mm moving range. The coaxial coarse and fine adjustment system allows a fine division of 0.002mm, ensuring detailed focus. Brightness-adjustable halogen lighting (6V/20W Kohler illumination) and color filters (blue, yellow, green) optimize viewing under varied conditions.
- Enhanced Viewing Options: Features compensation-free binocular and trinocular heads with ergonomic 30° inclination and full 360° rotation for user convenience.
- High-Precision Optics: Achromatic objectives (4X, 10X, 40X, 100X oil) paired with wide-field eyepieces deliver exceptional clarity and detailed magnification.
- Advanced Mechanical Stage: The spacious double-layer mechanical stage (155x145mm) with a smooth moving range of 80x50mm ensures precise specimen alignment.
- Superior Illumination System: Halogen lamp (6V/20W) with Kohler illumination, combined with brightness adjustment and color filters, provides excellent clarity and contrast for a variety of specimens.
- Global Compatibility: Operates on a wide power range (AC85–265V), making it ideal for use in laboratories and educational institutions worldwide.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Biological Microscopes. Please contact us for more information.
Specifications:
| SKU# | BB0337 |
| View Head | Compensation free Binocular head, Inclined at 30°. 360° rotatable, Interpupillary 55-75 mm |
| Eyepiece | P10X/18 mm. P16X/11 mm |
| Objective | 4X N.A=0.10 WD=37.50 mm |
| 10X N.A=0.25 WD=7.31 mm | |
| 40X N.A=0.65 WD=0.63 mm | |
| 100X(Oil) N.A=1.25 WD=0.18 mm | |
| Focusing | Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002 mm |
| Stage | Mechanical Stage 155*145 mm, Moving Range 80*50 mm |
| Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm & Filter |
| Illumination | Halogen lamp 6V/20W, Kohler Illumination, brightness adjustable |
| Filter | Blue, yellow, green |
| Power Supply | AC85-265V |
