Home » MSE PRO Bi-Modal High Nickel NMC Lithium Nickel Manganese Cobalt Oxide (Ni:Co = 96:3), 1kg powder powder
MSE Supplies LLC

MSE PRO Bi-Modal High Nickel NMC Lithium Nickel Manganese Cobalt Oxide (Ni:Co = 96:3), 1kg powder powder

Order upon Request
SKU: PO0073612
$ 1,511.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

MSE PRO Bi-Modal High Nickel NMC Lithium Nickel Manganese Cobalt Oxide (Ni:Co = 96:3), 1kg powder

Product Features

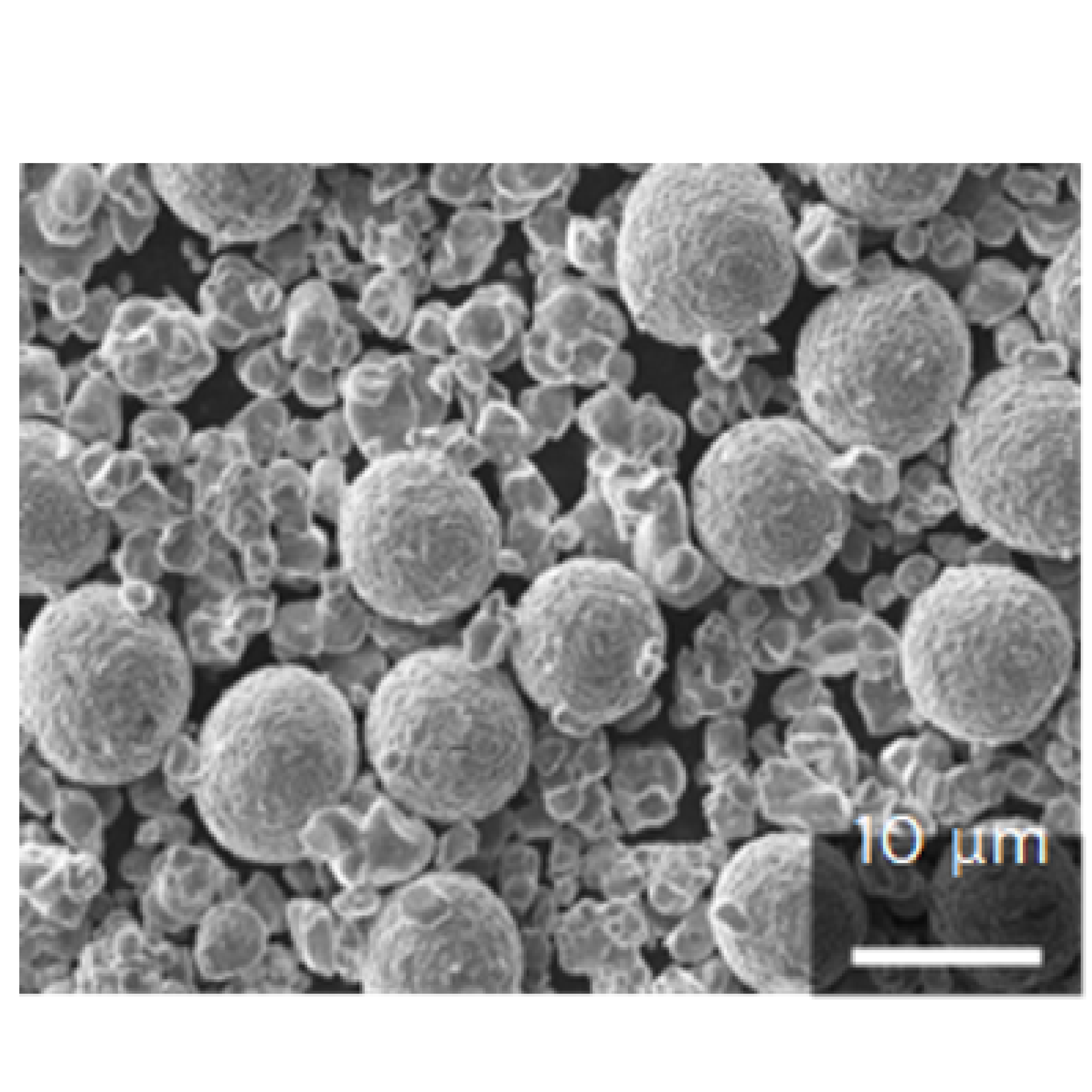

Bi-modal high nickel NMC Ni96 lithium nickel manganese cobalt oxide (Ni:Co = 96:3) cathode powder is designed to provide ultrahigh energy output with good charge-discharge speed for specialty lithium-ion battery applications. Special surface treatments improve lifetime (>500 to 80% capacity retention at 100% DOD) and reduce gassing during battery operations. The bi-modal particle morphology enables good compaction density and improves processibility of electrode and battery cell fabrication.

Specifications

Composition

Li

wt%

ICP

7.2 ± 0.3

Ni+Mn+Co

wt%

59.0 ± 1.0

Na

ppm

≤400

S

ppm

≤1000

Magnetic Impurities

ppb

≤100

Surface excess lithium

ppm

Titration

2000 ± 400

Particle Size

D10

µm

Particle size analyzer

≥1.5

D50

µm

8.0 ± 1.5

D90

µm

≤18

D99

µm

≤30

Tapped Density

g/cm3

Density analyzer

≥2.3

Surface Area

m2/g

BET

0.7 ± 0.2

Moisture Content

ppm

Karl Fischer

≤400

pH

/

pH meter

11.75 ± 0.25

Half Coin Cell Data

Discharge Capacity

mAh/g

2.7–4.3V

(vs. Li)

25 oC

≥230 (0.1C/0.1C)

≥210 (0.1C/1C)

First Coulombic Efficiency

%

≥92 (0.1C/0.1C)

Pressed Density

Commonly 3.2–3.7 g/cm3; 3.5 g/cm3 is recommended

Electrode

Example: CAM-SP-PVDF = 94:4:2 & Al foil 12 µm

Packaging

In dry air or vacuum sealed

Storage

Use by 24 months; keep away from heat, moisture, or direct sunlight

Handling

Material is hygroscopic and should be handled in dry environments (RH ≤ 1% at 25 oC)

 Key Documents:

SDS Form

COA

References:

Jeon et al. - 2026 - Approaching the theoretical density limit of ultrahigh-nickel cathodes via cation-disorder-free 10-μm single-crystalline particles

Lee et al. - 2025 - Eliminating lattice collapse in dopant-free LiNi0.9Mn0.1O2 cathodes via electrochemically induced partial cation disorder

Park et al. - 2022 - Introducing high-valence elements into cobalt-free layered cathodes for practical lithium-ion batteries

Ryu et al. - 2024 - Near-surface reconstruction in Ni-rich layered cathodes for high-performance lithium-ion batteries

MSE offers a range of battery consumables. Please contact us for bulk price of larger quantities.
