MSE PRO Beryllium Oxide (BeO) Ceramic Plate, Engineered Ceramics, MSE Supplies LLC, MSE Supplies

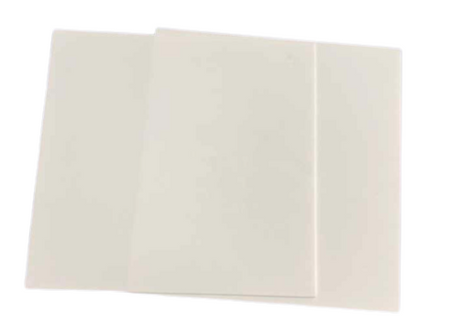

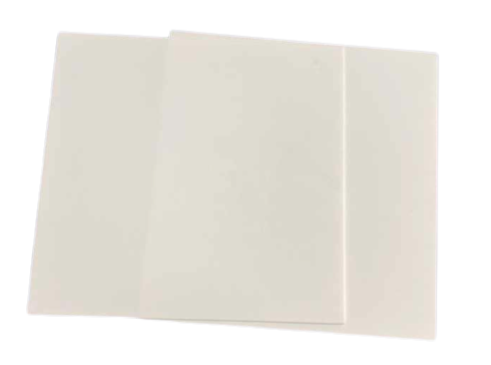

MSE PRO Beryllium Oxide (BeO) Ceramic Plate

SKU: WA2201

  • $ 5895

Request a Quote

Beryllium Oxide (BeO) Ceramic Plate

Beryllium Oxide (BeO), also known as beryllia, is one of the best ceramics for heat dissipation related applications. It has characteristics like high thermal conductivity, high melting point, high strength, low dielectric loss, etc. BeO ceramics also has the combination of low density and high neutron moderation and reflection capabilities compared with Aluminum Nitride (AlN) and Alumina (Al2O3). These properties makes BeO ceramic a great candidate for the moderator/reflector materials in nuclear reactors. It is also widely used in medical, industrial and electronics industries.

For Research Use Only (RUO). Not for use in diagnostic procedures.

Shipping and handling: This material is classified as a hazmat and requires special packaging and shipping to comply with  regulatory requirements. Please contact us for specific details with shipping and handling.

Note:
Due to the nature of the material, please inspect the product upon arrival. MSE Supplies will be only responsible for the manufacturing defects only after 1 week past delivery.

Typical Specification:

Purity 99.5%
Color  White
Dimensions

50.8mm x 50.8mm x 0.5mm  (WA2201)

112mm x 112mm x 0.38mm (WA2202)
Density ≥ 2.88 g/cm3
Thermal Conductivity @ 25 °C ≥ 285 W/mK
Dielectric Constant  6.6 ± 0.2 (1MHz)
Dissipation Factor  ≤ 4x10-4 (1MHz)
Flexural Strength > 200 MPa
Surface Roughness Ra < 0.8 um on both sides

*Please contact us for customization or bulk orders.

Ceramic plates are considered as consumables which are not covered by warranty.

References:

1. Thermal conductivity of beryllium oxide ceramic. Refractories and Industrial Ceramics 50, no. 6 (2009): 465-468.

2. Control of structural parameters and thermal conductivity of BeO ceramics using heavy ion irradiation and post-radiation annealing. Ceramics International 45, no. 12 (2019): 15412-15416.

3. Numerical assessment of beryllium oxide as an alternative material for micro heat exchangers. Ceramics International 46, no. 11 (2020): 19248-19255.
