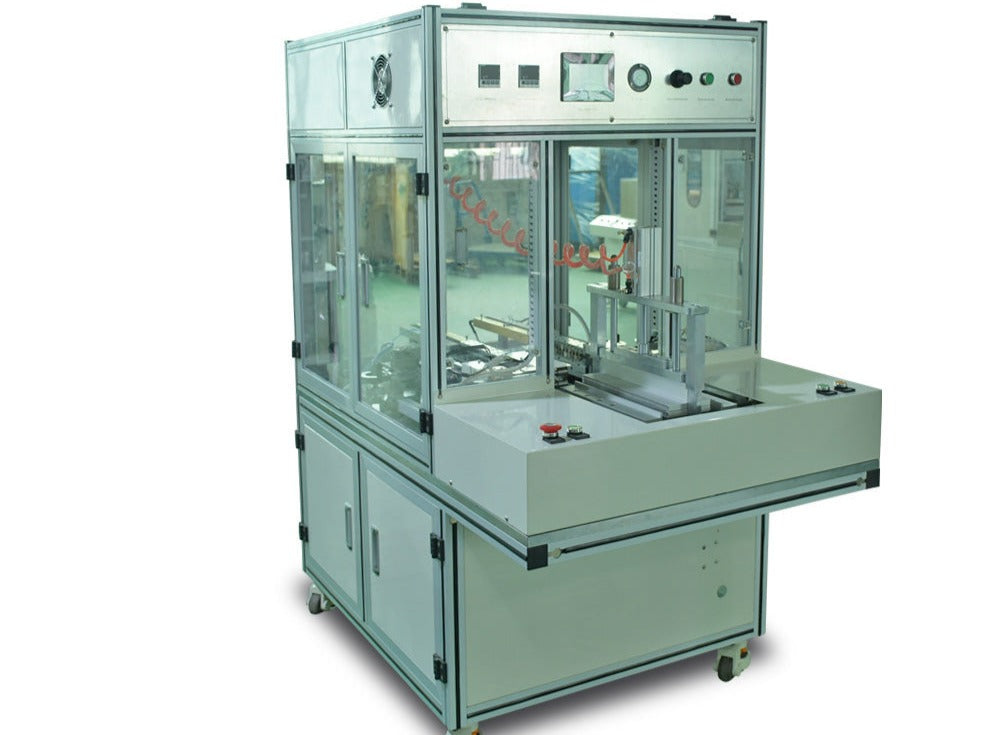

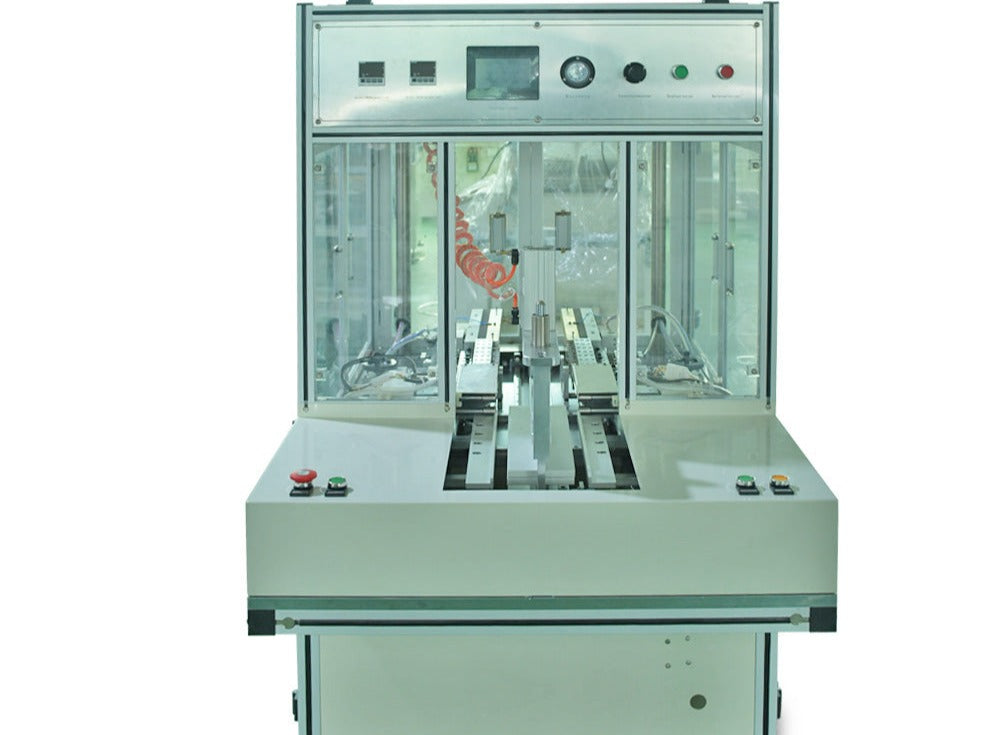

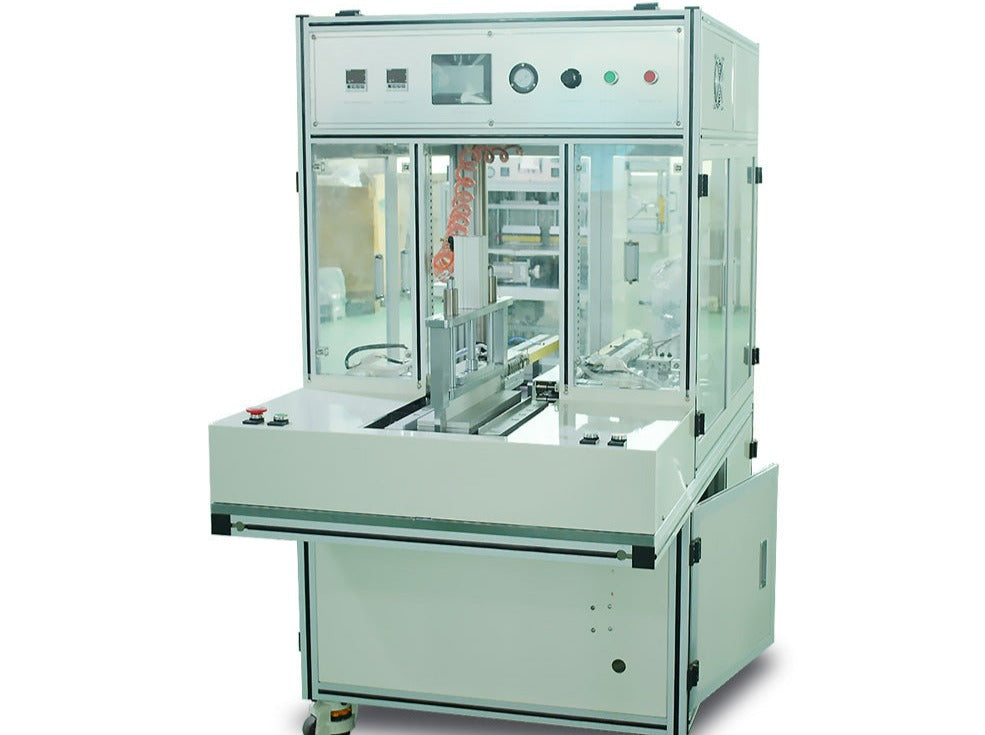

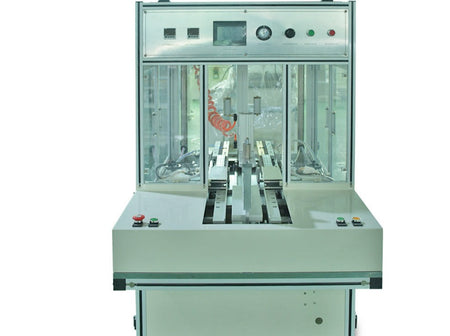

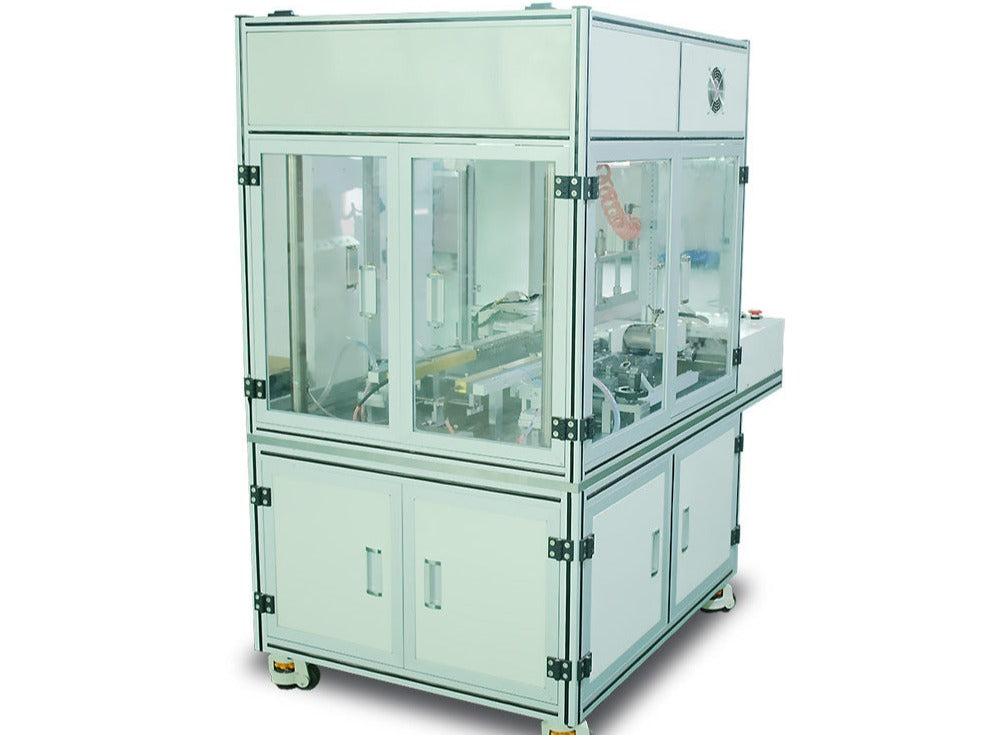

MSE PRO Automatic Three-In-One Machine for Pouch Cell Cutting, Folding and Heating

SKU: BR0443

To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

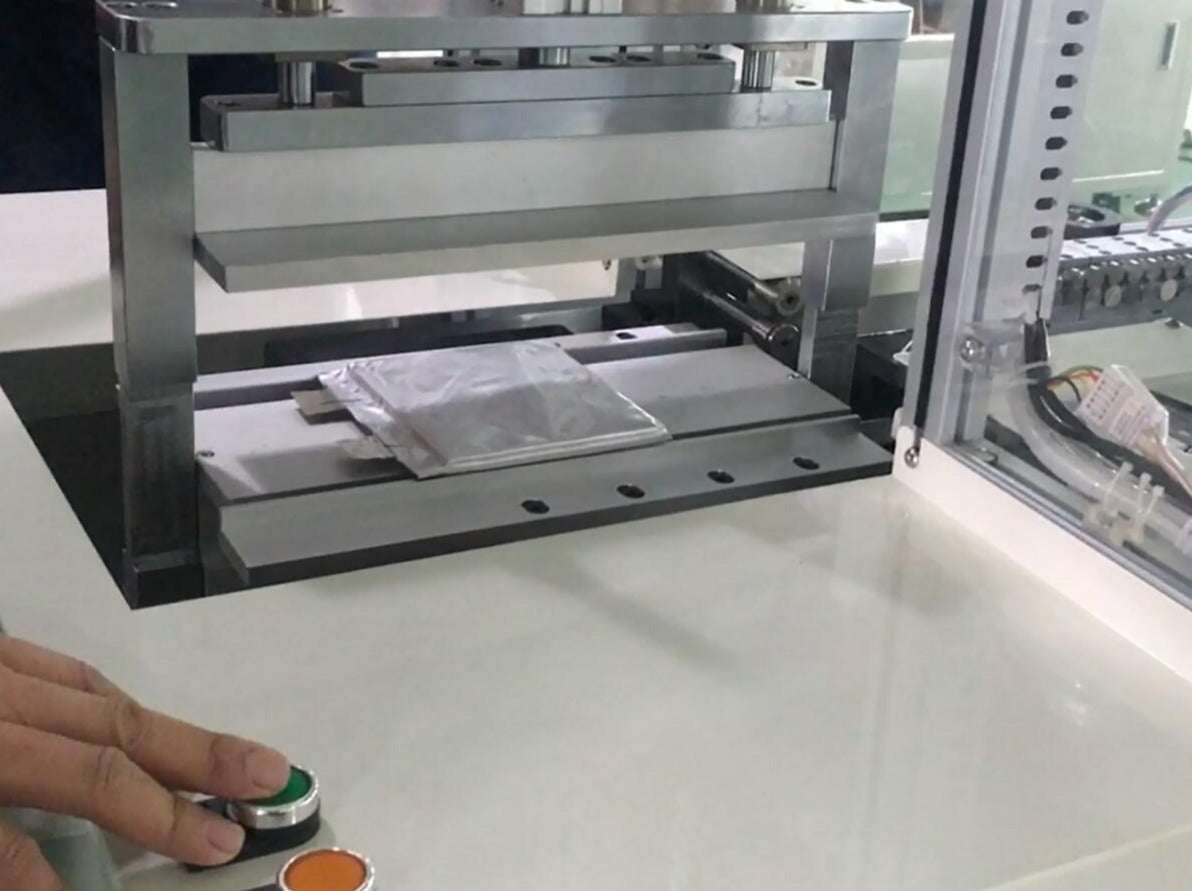

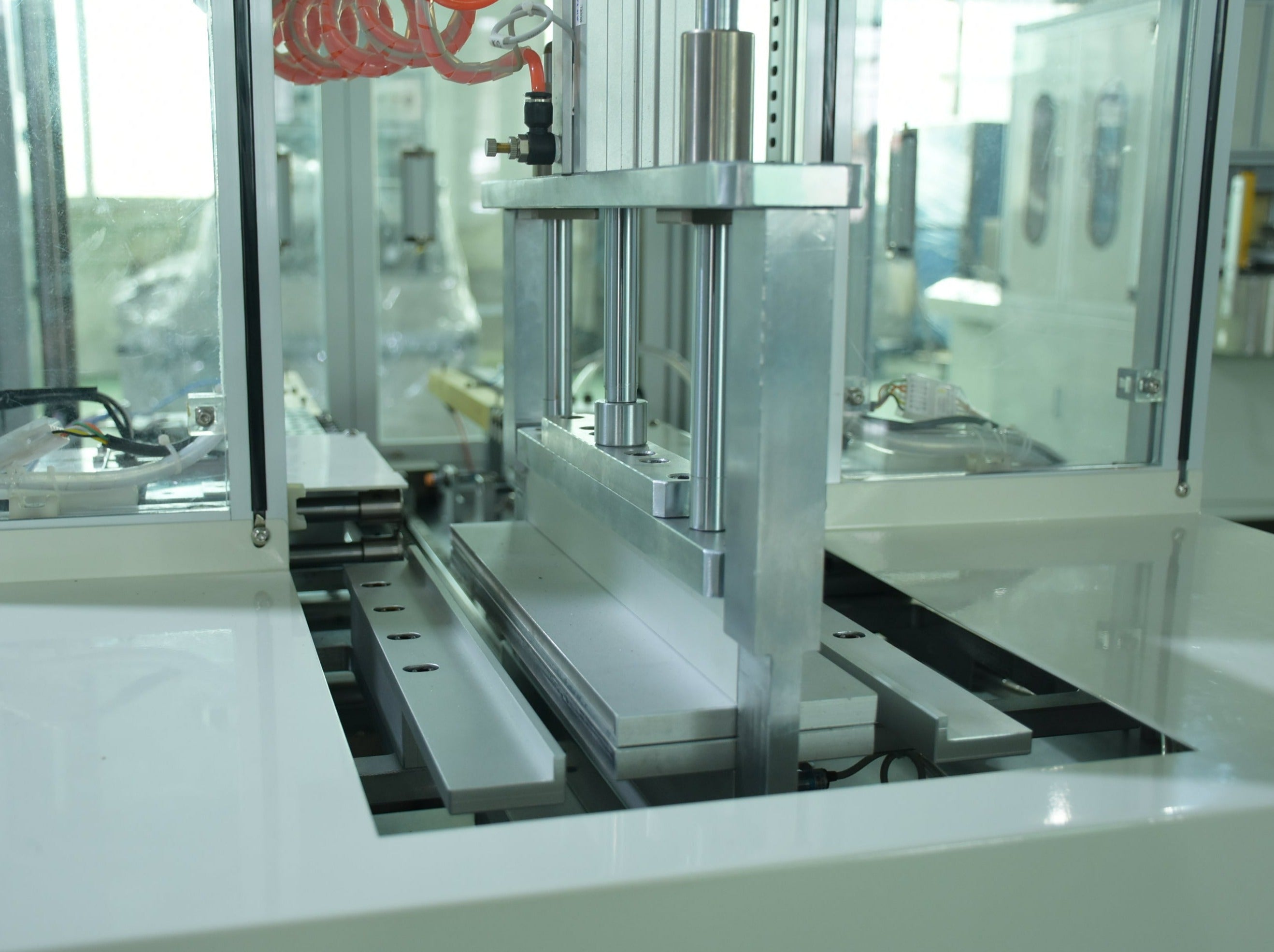

MSE Supplies offers an automatic three in one machine for lithium pouch cell battery case edge cutting, folding (trimming) and heating (perming). The equipment is mainly used for pouch cell molding process for the final assemble after sealing. The trimming space can be adjusted to adapt to different width of battery and touch screen display is equipped to control the heating temperature with LCD thermostat. Further, air pressure and speed can be set and adjusted according to process requirements. The operation is reliable, convenient and fast using foot switch.

Equipment specifications are listed for references, more details and customizable design are available upon request.

Specifications:

SKU BR0443
Source voltage 110V AC (Customizable)
Power 1.8KW
Max. temperature 250°C (Customizable)
Compressed air 0.6MPa, 5L/min
Output 500-1800EA/H
Cutter length 320mm
Suitable battery size

Length 20-300mm

Width 20-200mm

Thickness 1-10mm

Edge folding thickness 0.19-0.3mm
Edge cutting accuracy ±0.10mm
Parallelism between cutter 0.05mm
Cutter knife life 1,000,000times
Dimension (L*W*H) 1200*620*1600mm
Weight 600kg
