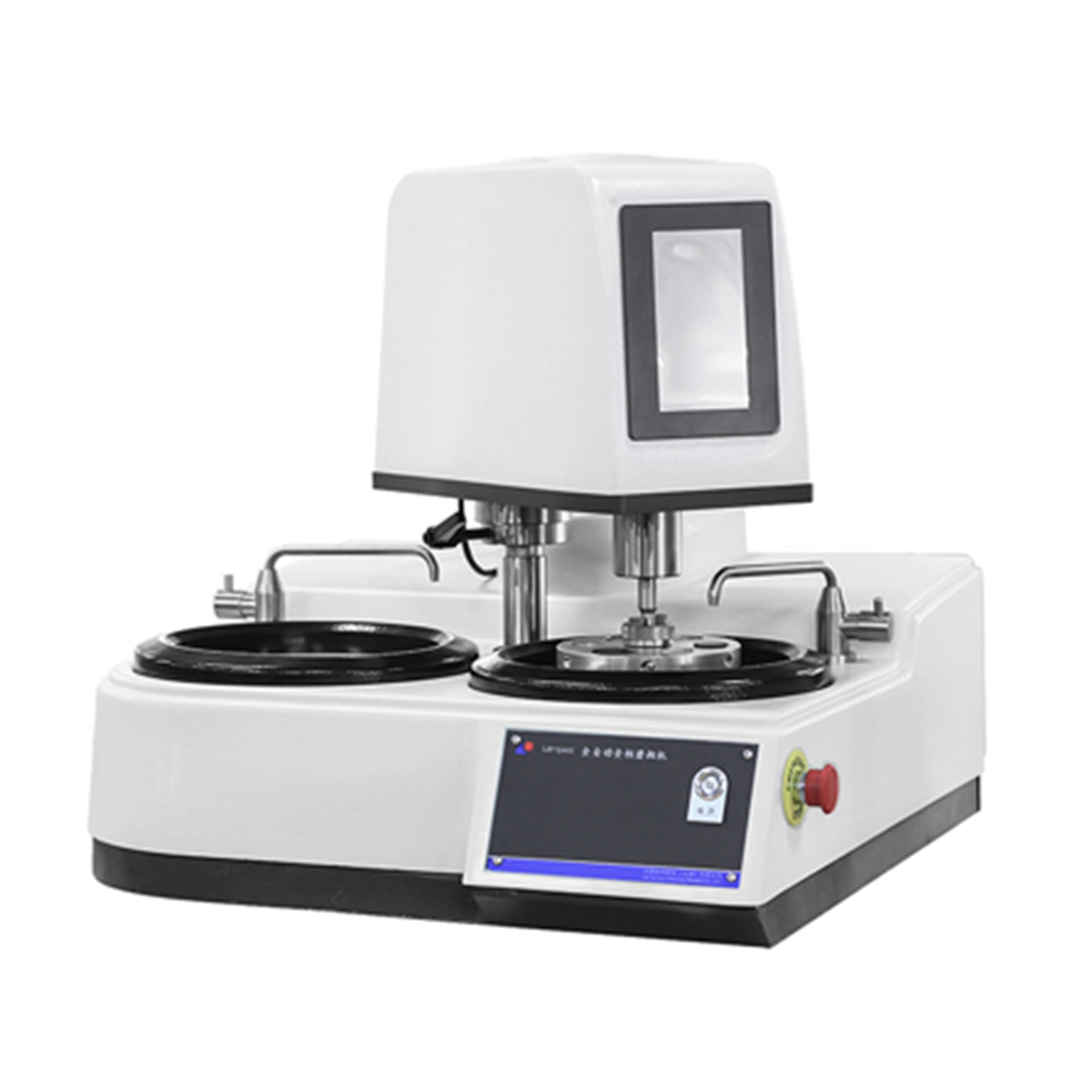

MSE PRO Automatic Metallographic Grinding and Polishing System with Central Force Control (250 mm)
Introduction
The MSE PRO Automatic Metallographic Grinding and Polishing System with Central Force Control is a high-performance solution designed for automated, consistent, and high-throughput sample preparation. Featuring dual-disc operation, central force loading, and programmable workflows, the system enables complete grinding and polishing processes with minimal operator intervention.
With automatic disc switching, precise force control, and advanced PLC-based programming, this system ensures uniform material removal and high-quality surface finishes, making it ideal for metallurgical laboratories, research institutions, and industrial quality control environments.
Key Features
- Central Force Loading System – Applies uniform pressure to multiple samples simultaneously (up to 6 samples) for consistent results
- Fully Automated Workflow – Automatic transition between grinding and polishing steps across dual discs
- Programmable Process Control – Stores up to 99 process recipes, each with up to 10 steps
- Multiple Operating Modes – Fully automatic, multi-step programmable, and manual modes for flexible operation
- Wide Speed Range – Adjustable disc speed from 5 to 1000 rpm for various materials and preparation stages
- Independent Sample & Disc Control – Adjustable rotation speed and direction for both sample holder and working discs
- Servo Motor Drive – High-torque 1 kW servo motor ensures stable and consistent performance
- Adjustable Swing Motion – Automatic left-right oscillation of sample holder with adjustable amplitude and speed
- Quick Stop Function – Disc can stop within ~2 seconds for enhanced safety and efficiency
- Magnetic Disc System – Quick replacement of grinding/polishing discs for different preparation steps
- Water & Cooling Control – Electromagnetic valve-controlled water flow for precise cooling management
- Touchscreen Interface – Intuitive PLC-based control with multilingual support (English/Chinese)
- Expandable Dosing System (Optional) – Supports multi-channel automatic slurry dispensing system
Specification
| Parameter | Specification |
| Number of Discs | Dual-disc |
| Loading Method | Central force loading |
| Sample Capacity | Up to 6 samples |
| Working Disc Diameter | 250 mm (standard; optional 230 mm, 203 mm) |
| Disc Speed Range | 5 – 1000 rpm (bidirectional) |
| Sample Holder Speed | 30 – 200 rpm (bidirectional) |
| Sample Holder Size | Standard: 30 mm × 6 samples (optional: 20 mm × 6, 40 mm × 6, 50 mm × 3, customizable) |
| Loading Force Range | 30 – 200 N |
| Control System | PLC + touchscreen |
| Operating Modes | Automatic / Multi-step / Manual |
| Program Storage | 99 programs (each up to 10 steps) |
| Motor Power | 1 kW (servo motor) |
| Cooling System | Electromagnetic valve-controlled water |
| Optional Feature | Multi-channel automatic dosing system |
| Power Supply | AC 110 V, 60 Hz (Total power: 2 kW) |
| Machine Dimensions (L × W × H) | 760 × 470 × 700 mm |
| Weight | 90 kg |
MSE supplies offers various metallographic equipment, please contact us for more information.
