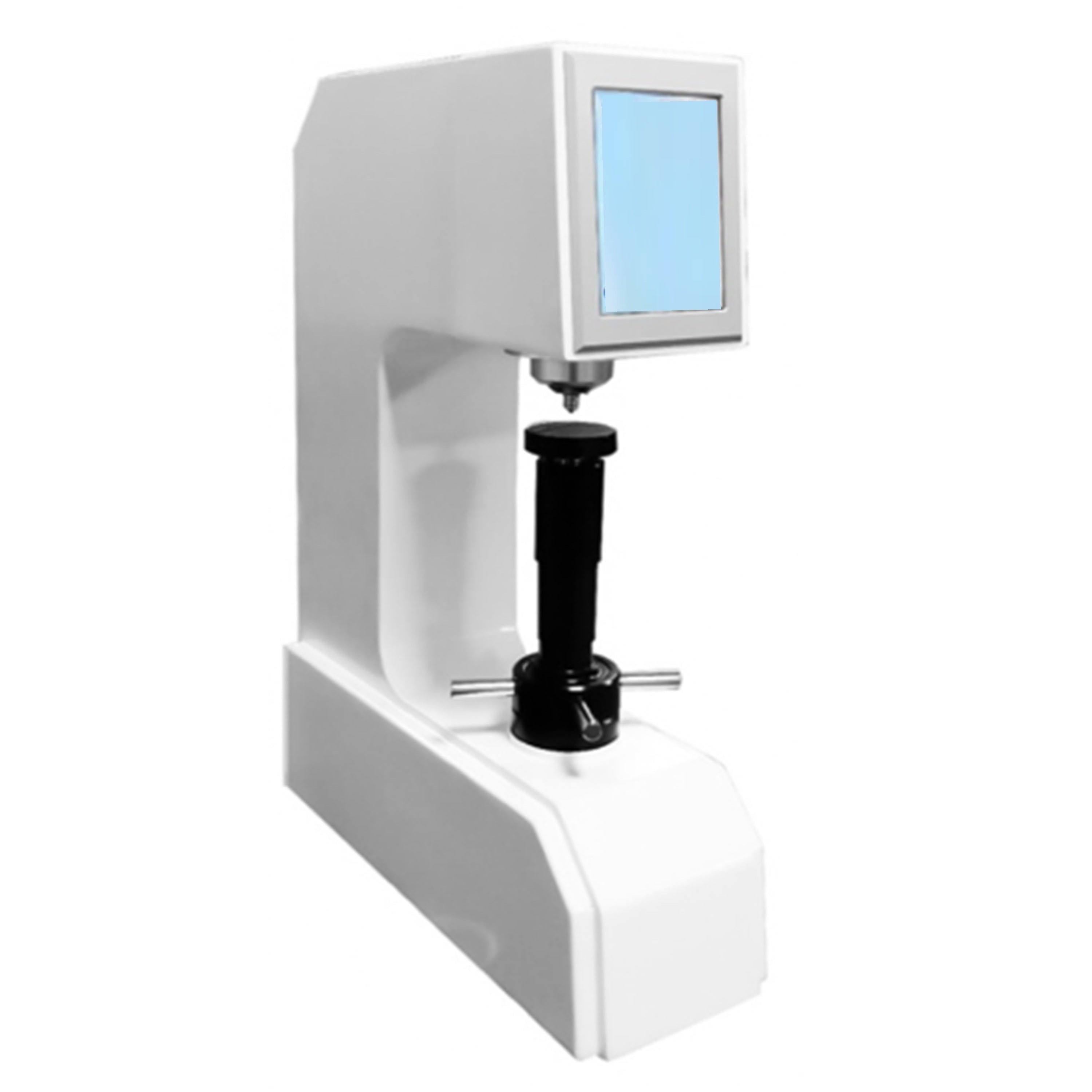

MSE PRO Advanced Digital Rockwell Hardness Tester with Closed-Loop Control
Regular price
$ 4,800.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Advanced Digital Rockwell Hardness Tester with Closed-Loop Control
1. Introduction
The MSE PRO Advanced Digital Rockwell Hardness Tester is a high-precision system designed for reliable hardness measurement in industrial and laboratory environments. Featuring an electronic loading system with closed-loop control, it ensures accurate and repeatable test force application. Combined with a touchscreen interface, automatic calibration, and advanced data management capabilities, this tester provides an efficient and intelligent solution for modern materials testing.
2. Key Features
- Closed-loop electronic loading system with high-precision sensor for superior force control
- Automatic application of preliminary and total test forces for consistent testing results
- Touchscreen interface with direct hardness scale selection and automated parameter adjustment
- Automatic hardness correction across low, medium, and high ranges using standard blocks
- Real-time data display and optional PC connectivity via IoT, Bluetooth, or wired transmission
- Built-in scale conversion (Rockwell, Brinell, Vickers) with pass/fail limits and alarm functions
3. Specifications
| Category | Specification |
|---|---|
| Initial Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRL, HRM, HRR, HRP, HRS, HRV |
| Test Range | HRA: 20–95; HRBW: 20–100; HRC: 20–70; HRD: 40–77; HREW: 70–100; HRFW: 60–100; HRGW: 30–94; HRHW: 80–100; HRKW: 40–100; HRL: 100–120; HRM: 85–115; HRR: 114–125 |
| Dwell Time | 0–99 s |
| Hardness Resolution | 0.1 HR |
| Test Force Accuracy | <1.0% |
| Display | LCD touchscreen |
| Data Output | LCD display + real-time PC display |
| Data Transmission | IoT module / Bluetooth / wired connection (optional) |
| Data Storage | USB export (Excel) or optional built-in printer |
| Scale Conversion | Rockwell, Brinell, Vickers, superficial Rockwell |
| Standards | BS EN 6508, ISO 6508, ASTM E18, GB/T 230 |
| Max Sample Height | 200 mm |
| Throat Depth | 200 mm |
| Dimensions | 560 × 220 × 800 mm |
| Weight | 70 kg |
| Power Supply | 110V, 60Hz |
