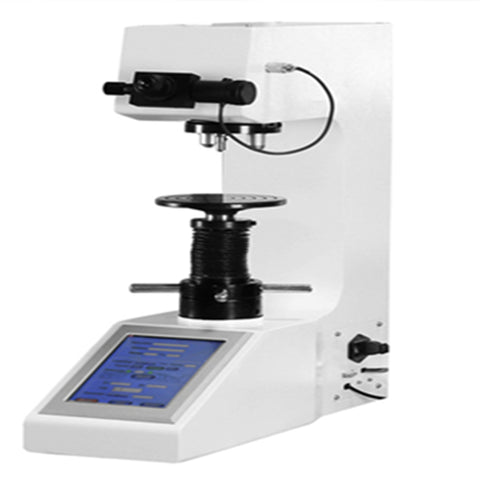

MSE PRO Advanced Automatic Turret Digital Vickers Hardness Tester
SKU: MA1301
MSE PRO™ Advanced Automatic Turret Digital Vickers Hardness Tester
MSE Supplies offers an Automatic Turret Digital Vickers Hardness Tester. It offers multiple force settings, force values to choose from, automatic turret and 8-inch touchscreen for easy operation.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- Multiple test forces, meeting all test forces within the range specified in the standard
- 8-inch touchscreen interface for easy user operation.
- The rotary tower is equipped with two different magnification objectives, 10X and 20X, allowing for extensive sample profile scanning at low magnification as needed.
- Both 10X and 20X objectives can be used for measurement.
- During the test, the indenter and the objective lens automatically switch to each other, and the test point is automatically positioned precisely.
- Calibration can be carried out according to standard hardness blocks or length scales, and hardness correction is automatically made according to high, medium and low hardness values, making hardness values more accurate.
- The various hardness values can be converted to each other.
- All test parameters and results are saved in excel format on a USB flash drive, facilitating data processing and output of inspection reports.
- Test setting parameters are password-protected.
- The light source uses LED lights, which have a long lifespan and do not require bulb replacement.
- A variety of languages are available, including Chinese and English.
Technical Specifications:
| Model | MA1301 |
| Test force | 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0Kgf (9.8N), 2.0Kgf (19.6N), 2.5Kgf (24.5N), 3.0Kgf (29.4N), 5.0Kgf (49.0N), 10.0Kgf (98.0N), 15.0Kgf (147N), 20.0Kgf (196N), 30.0Kgf (294N) |
| enforce standards | GBT4340.1, GBT4340.2, ASTM_E92 |
| Hardness value conversion | According to GB1172-99 and ASTM standards |
| Accuracy complies | JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99 |
| ASTM E-384, ISO 6507-2, ISO4546 | |
| Loading method | Auto-load/hold/unload |
| Rotate the tower mechanism | Automatic, manual. |
| Objective - indenter - objective auto-switch rotation. | |
| The automatic turret provides a quick and straightforward sequence of operations without the need to manually rotate the turret for automatic switching of the objective head. | |
| The center of the objective lens coincides with the center of the indenter with high precision with an error of less than 1 micron, ensuring accurate sample pressure positioning and adjustable center position of the objective lens. | |
| Minimum test unit | 0.01 mu m |
| Data output | The LCD display reads out and saves directly to a USB drive in EXCEL format |
| Convert the ruler | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Hardness test range | 8~2900HV |
| Test the force application method | Automatic (loading, holding, unloading) |
| Measuring eyepiece | Electron type 10x |
| Objective lens | × 10x, × 20x |
| Total magnification | 100X, 200X |
| Test force holding time | 1~99s |
| Maximum allowable specimen height | 180mm |
| Distance from the center of the indenter to the outer wall | 160mm |
| Size | 580*190*700mm |
| Weight | About 55 kilograms |
| Power supply | AC220V+5%, 50-60Hz |
Standard attachment:
| Name | Quantity | Name | Quantity |
| DHV-1000-10X micrometer eyepiece | 1 | Large, medium, V-shaped test bench | 1 each |
| Vickers hardness blocks | Two yuan | Spare fuse (2A) | 2 pieces |
| Power cord | 1 wire | Dust bag | 1 |
| Usb flash drive | 1 | Stylus | 1 |
| Hex socket wrench (2.5mm) | "1 | Adjust the feet horizontally | 4 |
| Product qualification certificate, warranty card | 1 copy | Instruction Manual | 1 copy |
For accessories/consumables and other available models, please contact us so we can help you choose appropriate products for your needs.
