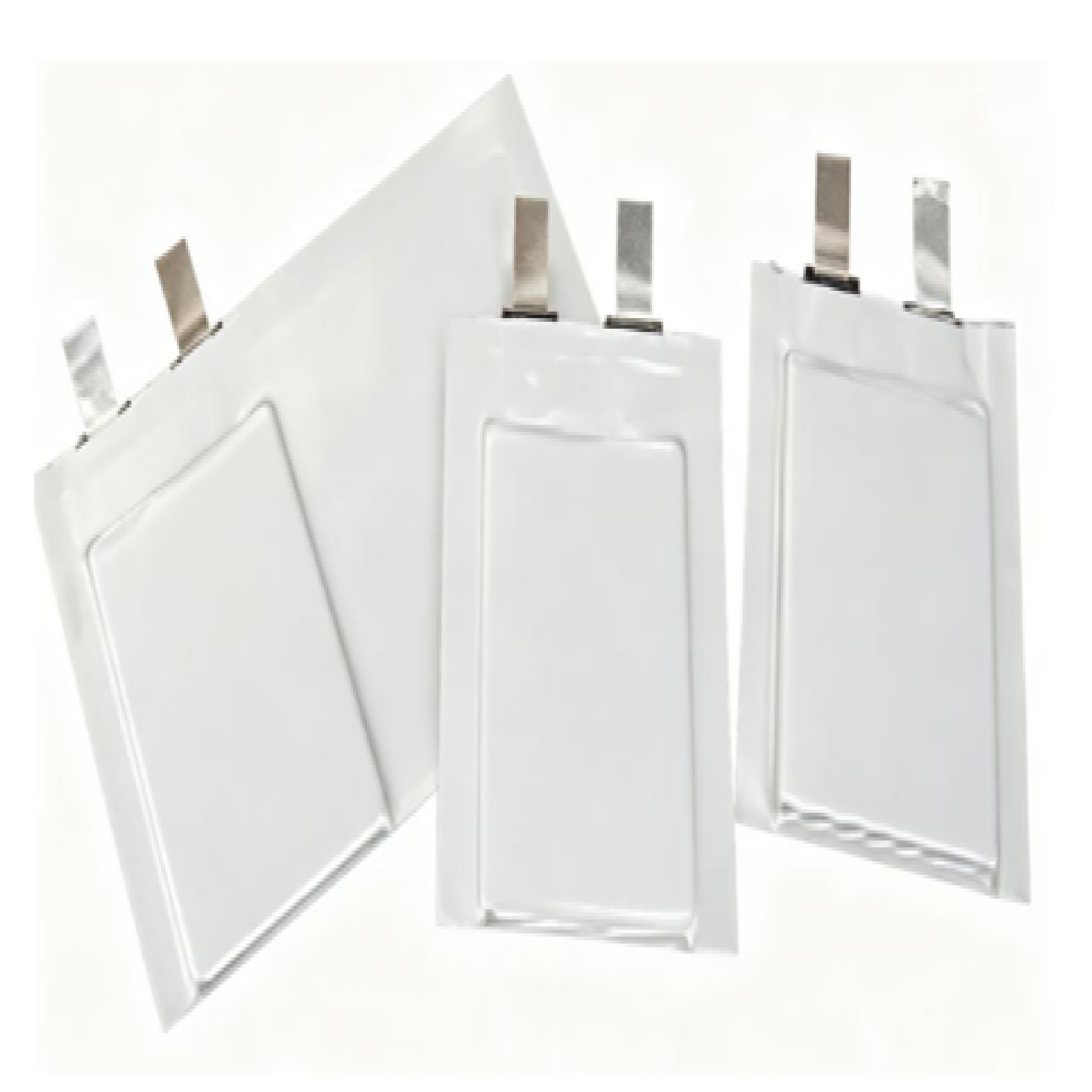

MSE PRO 82mm x 190mm Dry Pouch Cell without electrolyte, 7.0 Ah (Cathode: Sodium-ion Layered oxide, Anode: Hard Carbon)
Introduction
These are electrolyte-free dry pouch cells with stable material properties. They can be directly filled with electrolyte for cell performance testing.
Specifications
1. Electrode Sheet Parameters
| Material Type | Active Material Content | Double-Sided Areal Density (mg/cm²) | Compaction Density (g/cc) |
|---|---|---|---|
| Sodium-ion Layered Oxide (Cathode) | 92% | 17.8 | 3 |
| Hard Carbon (Anode) | 92.5% | 8.3 | 1 |
2. Cell Parameters
| Positive Electrode Dimension (mm) | 76.5 × 169 |
| Negative Electrode Dimension (mm) | 79 × 172.5 |
| Lamination Layers (Positive / Negative) | 29 / 30 |
| Recommended Test Voltage Range (V) | 1.5 – 3.9 |
| Recommended Electrolyte Injection Amount (g) | 44 |
| Recommended Electrolyte type | Sodium-ion Long- cycle Electrolyte |
3. Cell Overall Dimensions & Appearance Requirements
| Appearance Inspection | No electrolyte leakage, no dents, scratches, deformation, or mechanical damage |
| Width | 82 ± 1 mm |
| Length | 190 ± 1 mm |
| Thickness | 7.0 ± 0.3 mm |
| Tab Metal Width | 20 ± 0.5 mm |
| Tab Height | 22 ± 0.5 mm |
Operation procedure for battery testing
1. Battery Electrolyte Injection
Inject electrolyte according to the recommended dosage in the table; complete the operation in a glove box
2. Battery Aging
Aging temperature: 45°C; duration ≥15 hours; aging completed in a drying oven.
3. Battery Formation
- battery test cabinet:
- Lithium battery: 25°C, rest for 5 min → charge at 0.02C for 5 h → charge at 0.1C for 3 h; one cycle.
- Horizontal Thermal Pressing Formation Machine:
- 45°C, pressure 4 kg/cm²
- Charge at 0.02C for 5 h → charge at 0.1C for 3 h
- One cycle completed
4. Battery Aging (Secondary)
Aging temperature: 45°C; duration ≥24 hours.
5. Battery Capacity Division
Set the corresponding material cutoff voltage and cycle twice with a current level of 0.1C or 0.2C.
6. Battery Testing
Set the magnification or repeat the process step to test the battery.
MSE offers a range of battery consumables. Please contact us for more information.
