MSE PRO 6x3 mm Rectangular Dry Pellet Pressing Die Set

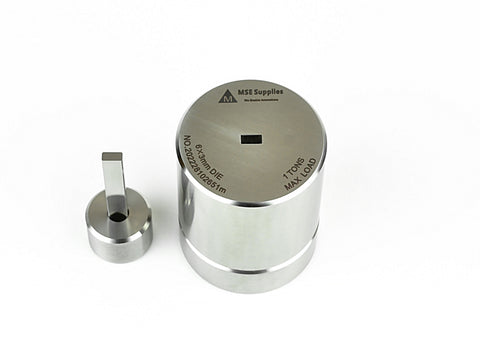

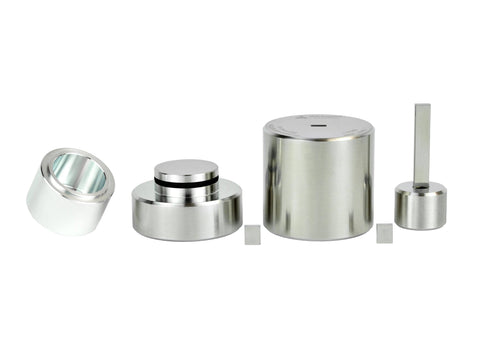

6x3 mm Rectangular Dry Pellet Pressing Die Set
The 6x3 mm rectangular dry pellet pressing die set uses pressure to compress powder into pellets. The die is made from high quality, high hardness carbon steel, which ensures a successful compression of both ceramic and metal powders into pellet form. Typical uses for laboratory pellets can be found in the minerals, ceramic, or pharmaceutical industries.
Other rectangular sizes or square sizes are available upon request. Please contact us for a quote.
In order to grind the desired materials into the correct granularity of powder (from millimeters to microns), we recommend using either our powder processing ball milling products & accessories or our agate mortar & pestle sets.
To avoid rust, store the pressing die set in a dry environment and clean after each use. If you do not intend to use for an extended period of time, it is recommended to apply some oil on the pressing die surfaces to avoid the formation of rust. MSE Supplies is not responsible for rust or damage caused by improper use. Please inspect the pressing die upon arrival. Pressing dies are considered consumables, the warranty only covers manufacturing defects.
Specifications
|
Product |
6x3 mm Rectangular Dry Pellet Pressing Die Set |
|
SKU# |
PR0120 |
|
Die material |
Alloy steel: Cr12MoV |
| Pressing Force | maximum 0.8T metric Ton |
|
Hardness |
HRC60-HRC62 |
|
Sample size |
6x3mm or other customized sizes |
|
Cavity depth (N) |
20mm |
|
Dimensions (LxH) |
Φ43x93 |
|
Weight |
0.65kg |
Die Operation Guide:
