MSE PRO 52L Lab Benchtop Vacuum Drying Oven with 3 Shelf (+10 to 250℃ )
Regular price
$ 3,500.95
Couldn't load pickup availability
Still have questions? Ask our experts!

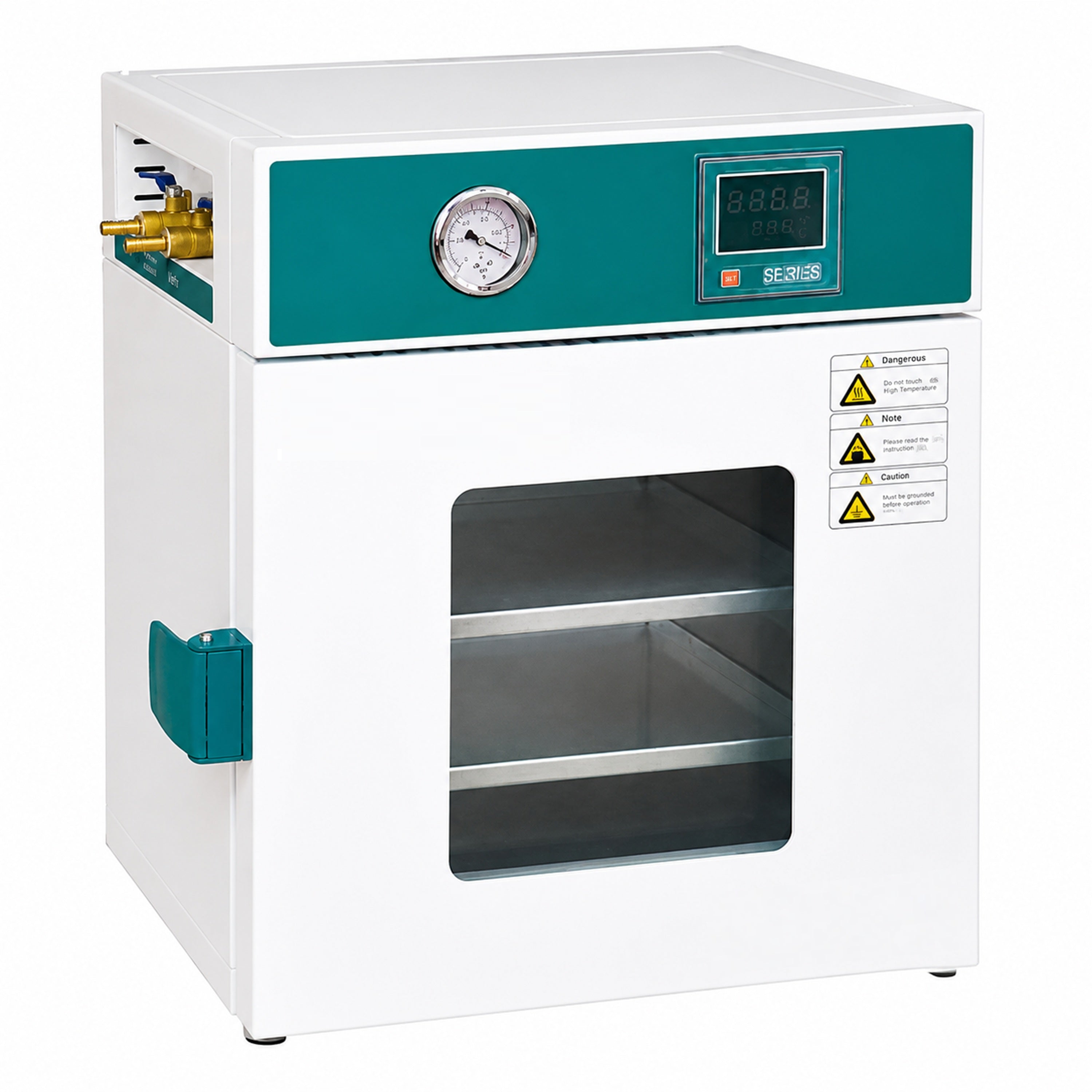

MSE PRO 52L Lab Benchtop Vacuum Drying Oven with 3 Shelf (+10 to 250℃ )
This vacuum drying oven was designed to dry substances that are sensitive to heat, fragile, and easily oxidized. While operating, it can maintain a certain degree of vacuum and inert gas pressure within the chamber, making it ideal for items with multiple parts. It is widely used in research fields such as biochemistry, chemistry, pharmacy, medicine, agriculture, and environmental protection, and can be employed for the drying, baking of different glass vessels.
MSE Supplies offers different capacities, chamber materials and types of drying ovens. For more information, please contact us.
| Heating Mode | Four-wall heat conduction and decompression |
| Temperature Range | RT +10–250°C |
| Usable Vacuum Degree Range | <133 Pa |
| Temperature Resolution | 0.1°C |
| Temperature Motion | ±1°C |
| Heating-Up Time | 100 min |
| Inner Chamber | High-quality stainless steel |
| Outer Shell | Cold-rolled steel with electrostatic spraying exterior |
| Insulation Layer | High-quality aluminum silicate cotton |
| Heater | Stainless steel electric heat tube |
| Observation Window | Bullet-proof tempered glass |
| Vacuum Meter | Pointer type, accuracy class 1.6% |
| Nozzle Diameter | 10 mm |
| Power Rating | 1.4 kW |
| Temperature Control Mode | Two-temperature-section PID intelligent control |
| Temperature Setting Mode | Touch button setting |
| Temperature Display Mode | Measuring temperature displayed on upper row; setting temperature displayed on lower row |
| Timer | 0–9999 min, with timing wait function |
| Operation Function | Fixed temperature operation, timing function, auto stop |
| Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| Sensor | PT100 |
| Safety Device | Over-temperature sound-light alarm |
| Inner Dimensions (W×L×H) | 415 × 370 × 340 mm |
| Exterior Dimensions (W×L×H) | 560 × 540 × 680 mm |
| Packing Dimensions (W×L×H) | 704 × 620 × 814 mm |
| Volume | 52 L |
| Max Shelf Number | 6 |
| Load per Rack | 15 kg |
| Shelf Space | 40 mm |
| Power Supply | 110V / 60Hz |
| Net/Gross Weight | 67 / 92 kg |
| Shelf | 3 |
| Optional Accessories | Silicone connecting tube, vacuum pump filter, vacuum pump, shelf |
