MSE PRO 24-Ton Manual Heated Lab Press (300°C) with Single Flat Heating Plate (100x100 mm)

  • $ 2,99995


MSE PRO 24-Ton Manual Heated Lab Press (300°C) with Single Flat Heating Plates (100x100 mm)

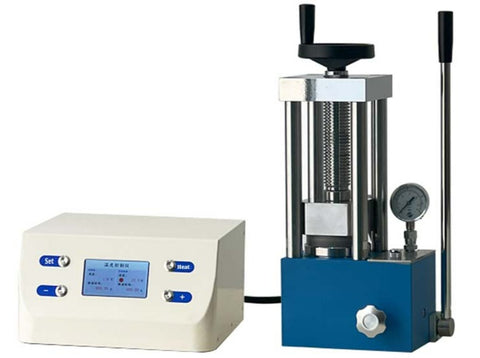

The MSE PRO™ 24T manual hydraulic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode/membrane films. The water cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase with additional cost).

At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.

    Brand MSE PRO™
    Product SKU #

    PR0341 (without water chiller)

    PR0341-1 (with water chiller)

    Pressure range 0-24 Metric Tons
    Heating range up to 300 °C
    Diameter of piston 95 mm
    Temperature control accuracy 0.1 °C
    Cooling mode Air / Water cooling
    Heating plate 100x100 mm
    Hot press dimension (KxPxH) 245mm x 175mm x 460 mm
    Overall dimension (LxWxH) 800mm x 470mm x 460 mm
    Power supply 110V/300W
    Net weight 60kg
    Warranty Limited one year warranty, excluding damages caused by improper use
    Note Please clean the press after each use to ensure the best performance and longer life time
