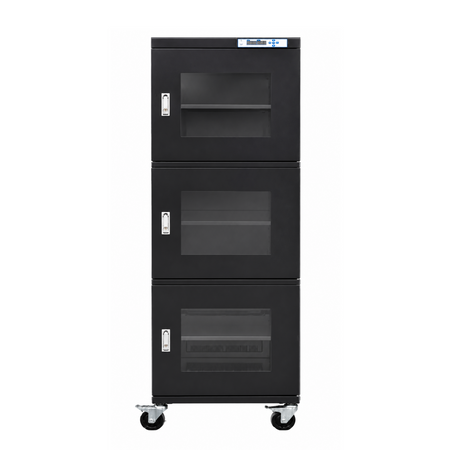

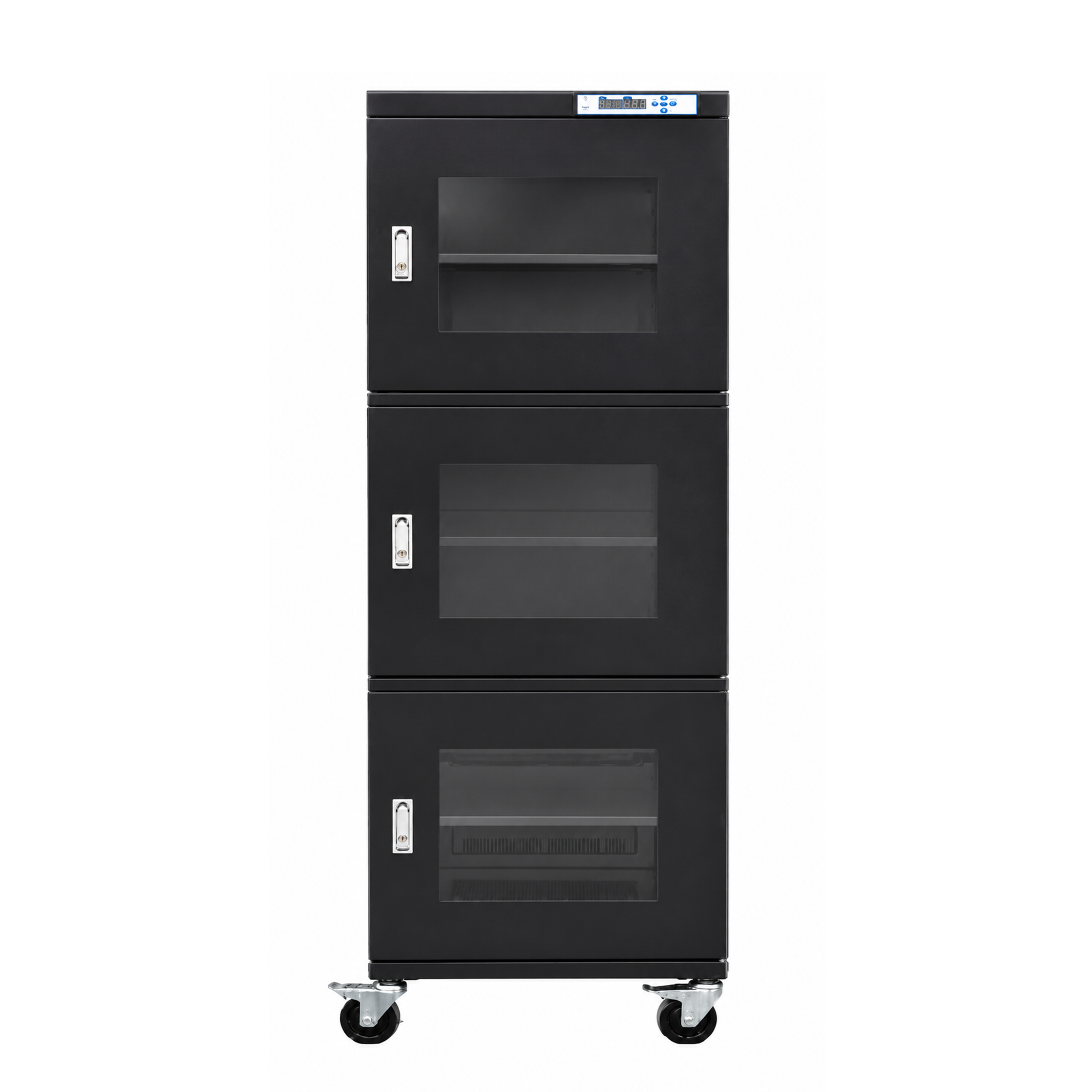

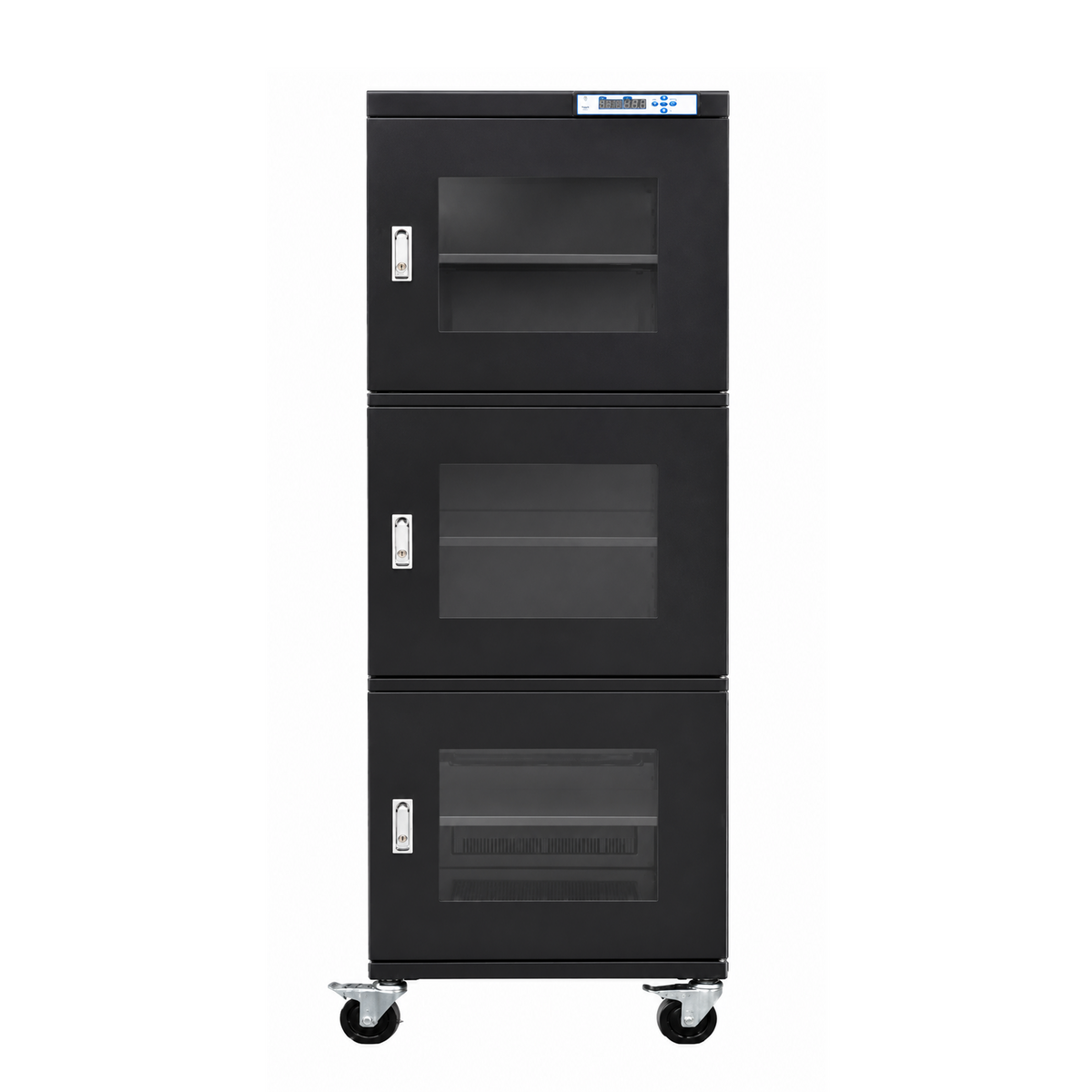

MSE PRO 20%-60%RH 718L ESD Safe Dry Cabinet, 100V 60Hz
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO 20%-60%RH 718L ESD Safe Dry Cabinet, 110V 60Hz
Introduction
The MSE PRO 20%-60%RH 718L ESD Safe Dry Cabinet is designed to protect humidity-sensitive components and electronic materials from moisture-related damage. With an adjustable humidity range of 20%RH to 60%RH, this dry cabinet provides a stable storage environment controlled by a precise LED digital controller.
Features
20%-60%RH Adjustable Humidity Control
Maintains a controlled dry storage environment with humidity adjustable from 20%RH to 60%RH.
Large 718L Capacity
The cabinet provides a spacious 718L internal volume, suitable for storing electronic components, moisture-sensitive materials, instruments, and other lab or industrial supplies.
ESD Safe Design
The cabinet is coated with black U.S. DuPont ESD-safe powder coating, helping reduce electrostatic discharge risks during storage and handling.
LED Digital Controller
Equipped with a precise LED digital controller for easy monitoring and operation.
Three-Door Cabinet Design
Designed with 3 doors, airtight magnetic seals, and handles for convenient access and secure storage.
Durable Steel Construction
Built with 1.2 mm galvanized steel and reinforced structure, offering excellent load-bearing strength and sealing performance.
Tempered Glass Doors
The cabinet uses 3.2 mm tempered glass with zinc alloy locks for visibility, safety, and anti-theft protection.
Adjustable Shelves
Comes with 5 height-adjustable shelves, allowing flexible storage for different item sizes.
Mobile ESD-Safe Casters
Equipped with 4 universal ESD-safe casters, including 2 front casters with brakes, for easy movement and stable positioning.
Low Power Consumption
Average power consumption is approximately 6 W/h, with a 1.2 m grounding cable included.
Specifications
| SKU | MA0072303 |
| Humidity Range | 20%-60%RH adjustable |
| Volume | 718L |
| Interior Dimensions | 596(W) × 682(D) × 1723(H) mm |
| Exterior Dimensions | 598(W) × 710(D) × 1910(H) mm |
| Packing Dimensions | 690(W) × 810(D) × 2080(H) mm |
| Voltage | 110V / 60Hz |
| Display Precision | ±3%RH, ±0.5°C |
| Resolution | 0.1%RH, 0.1°C |
| Color | Black, U.S. DuPont ESD-safe powder coated |
| Structure | 1.2 mm galvanized steel |
| Door | 3 doors with airtight magnetic seals |
| Glass | 3.2 mm tempered glass |
| Lock | Zinc alloy lock |
| Shelves | 5 pcs, height adjustable |
| Power Consumption | Average 6 W/h |
| Grounding Cable | 1.2 m |
| Wheels | 4 ESD-safe universal casters, 2 front casters with brakes |
| Gross / Net Weight | 105 kg / 84 kg |
| Shelf Load Capacity | 80 kg per shelf |
| Recovery Time | Max. 30 minutes to return to set humidity after opening the door for 30 seconds and closing it |
Recommended Storage Humidity Guide
|
Relative Humidity
|
Suggested stored items
|
|
55%~45%RH
|
Tapes, CD, lenses, microscope, photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album ,slides, industrial design, etc
|
|
45%~35%RH
|
Optical lenses, precision instruments, camera, lenses, measuring tools, capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette etc.
|
|
35%~20%RH
|
Samples, filters, precision dies, measurement instruments, pollen, all electronic parts, PCB, wafer, metallic powders, semiconductors, medical supplies etc.
|
|
10%~20%RH
|
Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc.
|
|
10%-1%RH
|
IC, BGA, copper, silver, and materials very sensitive to humidity, etc
|
MSE can offer a variety of dry cabinets and nitrogen cabinets. Please contact us if you don't find the size fits your needs.
