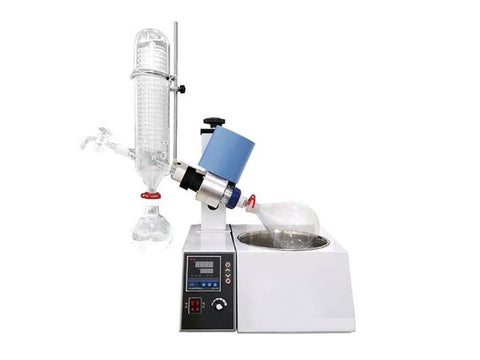

MSE PRO 1L Rotary Evaporator Bottle
SKU: BB1852
MSE PRO™ 1L Rotary Evaporator Bottle
The MSE PRO™ Rotary Evaporator is designed based on the principle of constant temperature heating and film evaporation under vacuum and negative pressure. It features stepless speed regulation, ensuring a smooth and uniform film formation on the rotating bottle wall. The rotating bottle is evenly heated by an intelligent constant temperature water bath, enabling high-speed evaporation under vacuum conditions. The solvent vapor is efficiently cooled by a high-efficiency glass condenser and collected for reuse, making the process highly efficient and eco-friendly.
- Stepless Speed Controller: Enables precise speed regulation for optimal evaporation efficiency.
- PID Temperature Adjustment: Provides accurate and stable temperature control to enhance solvent recovery.
- Automatic Lift Control: Ensures effortless height adjustments for convenience and safety.
- High Evaporation and Recovery Rate: Maximizes efficiency in solvent evaporation and recovery.
- Advanced Glass Condenser: Ensures effective vapor cooling and minimizes solvent loss.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Rotary Evaporators. Please contact us for more information.
Specifications:
| SKU# | BB1852 |
| Rotary Bottle | 1 L24#(standard size) |
| Collecting Bottle | 0.5L 24 # (standard size) |
| Glass Material | GG-17 |
| Shelf Material | Spray anti-corrosion steel |
| Heating Unit Size | 250*388*169 mm |
| Chamber Size | φ220*140 mm |
| Heating Power | 1KW |
| Temp. Range | 0-99°C |
| Temp. Accuracy | ±1°C |
| Temp. Sensor | PT100 |
| Vacuum | 0.096Mpa |
| Rotary Motor | 30W |
| Rotating Speed | 0-120rpm |
| Lift | Motor |
| Lifting Power | 15W |
| Lifting Stroke | 150mm |
| Speed Control | Stepless speed controller |
| Sealing Method | Fluorine rubber skeleton oil seal |
| Condenser | φ85*450 mm |
| Charging Valve | 19#(standard size) |
| Power Supply | 220V,50Hz(Standard); 220V,60Hz(Optional) |
| External Size(W*D*H) | 640*340*(860-1010) mm |
| Standard Accessory | 1 L Rotary Bottle*1, 0.5 L Collecting Bottle*1 |
| Optional Accessory | Vacuum pump, Recirculating chiller. Transparent cover |
