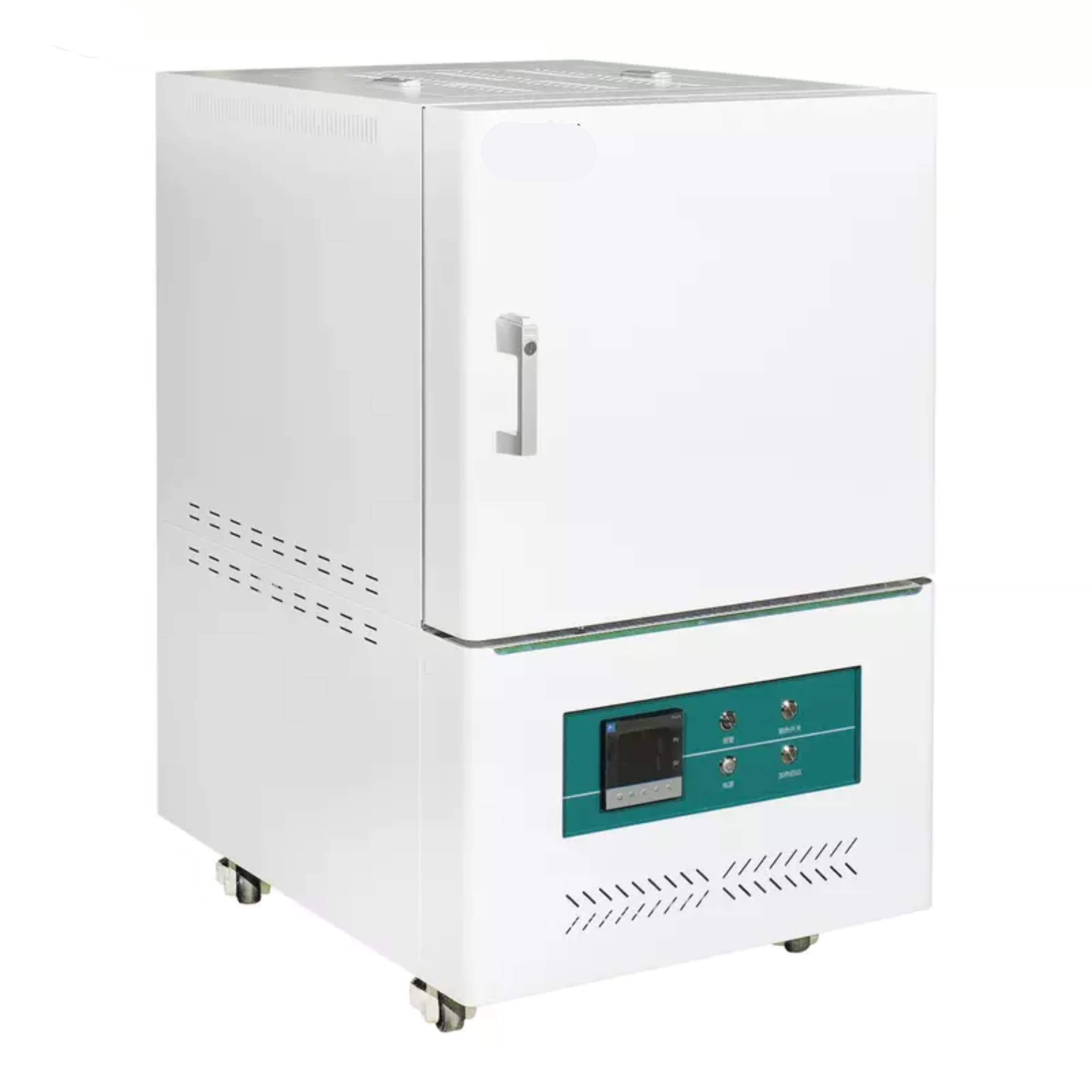

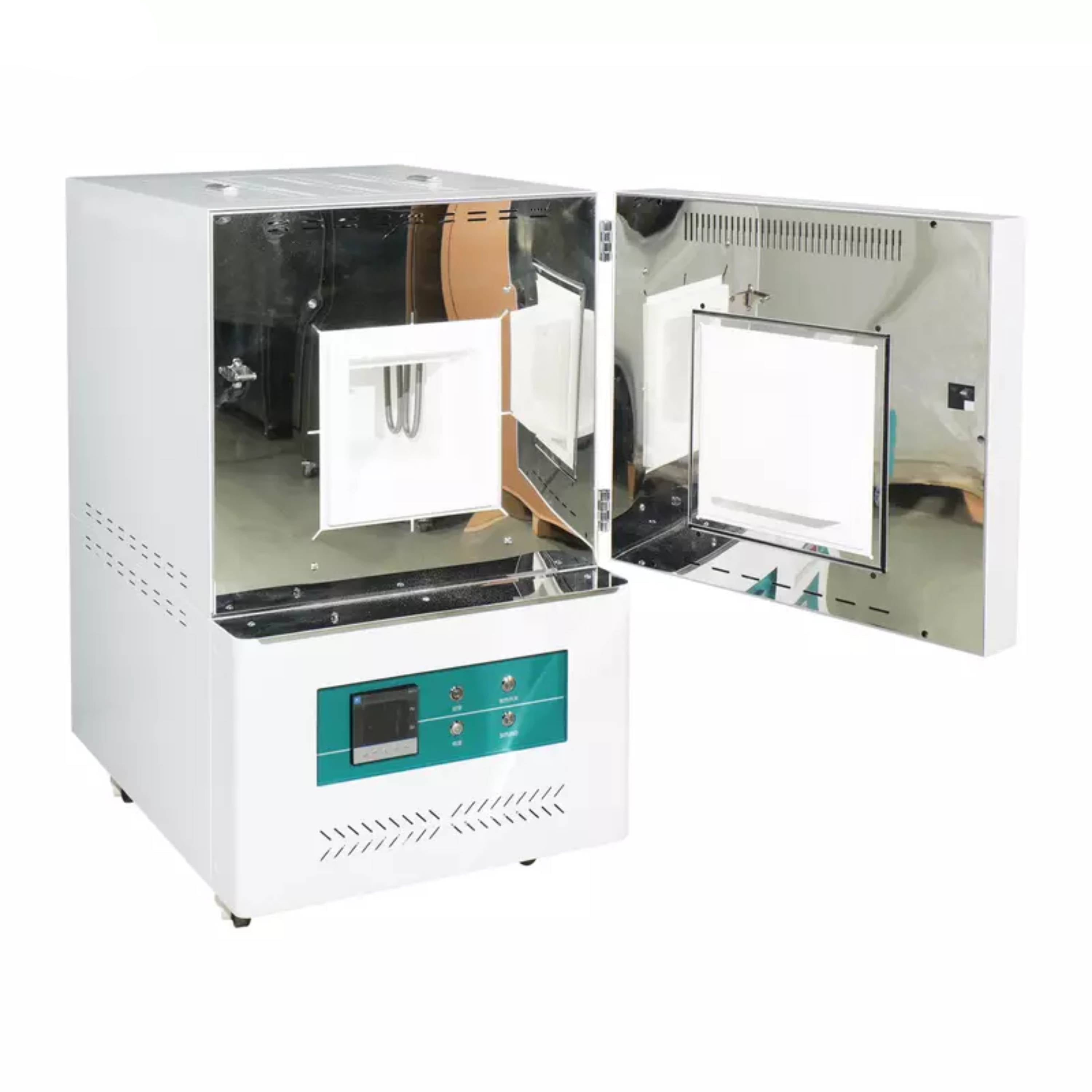

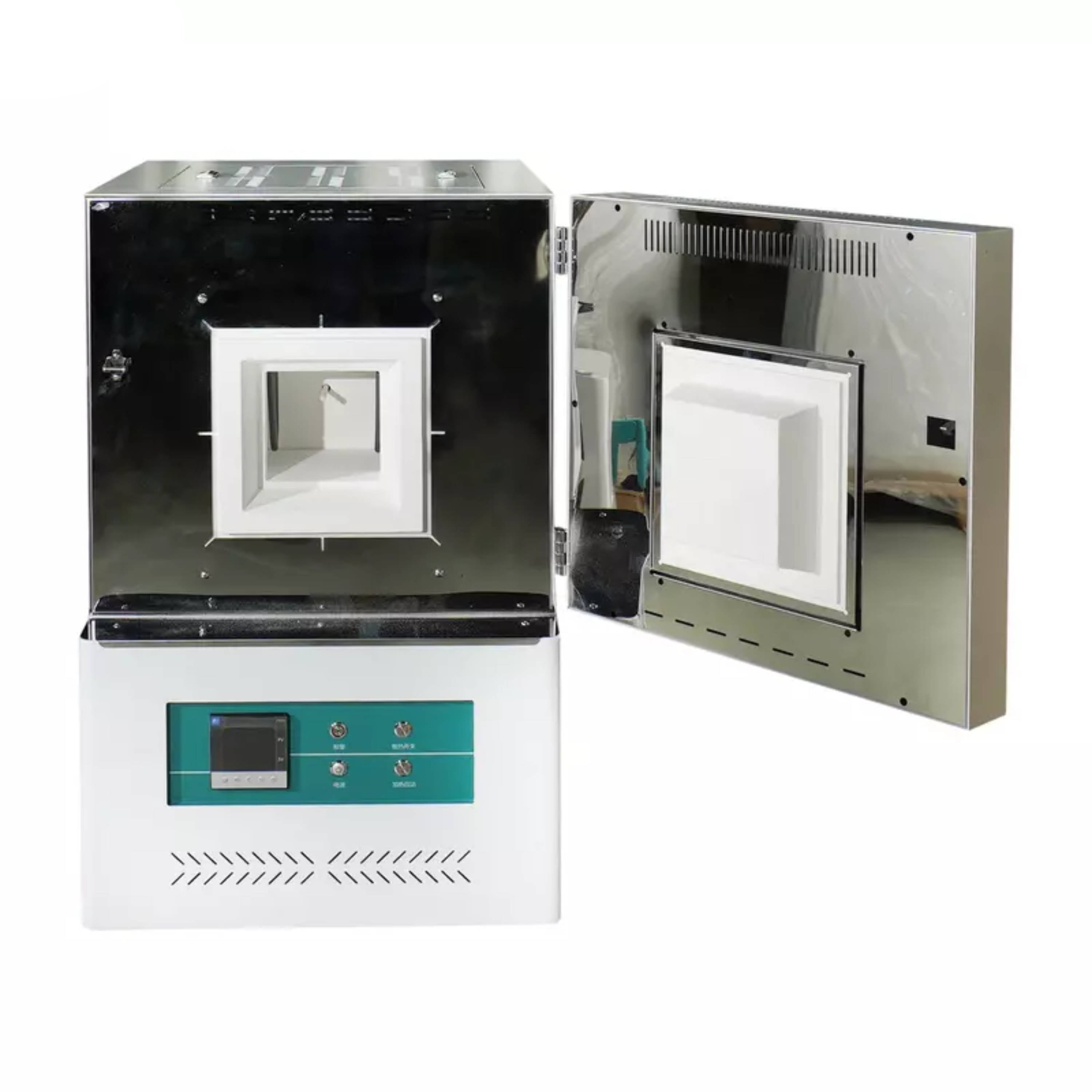

MSE PRO 1700℃ Muffle Furnace 64 segment controller (import brand) – 150×90×150mm, 220V, 2L
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ 1700℃ Muffle Furnace 64 segment controller (import brand) – 150×90×150mm, 220V, 2L
Product Description
It is used for sintering, melting and analyzing metal, nonmetal and other compound materials in laboratories of universities, research institutes and industrial and mining enterprises.
Features:
- Mirror stainless steel furnace mouth, long-term use will not change color.
- Vacuum-forming polycrystalline mullite fiber furnace, high efficiency insulation.
- Double shell, the air sleeve heat insulation, and double air guiding passage .
- High-purity silicon-molybdenum rod heating
- High precision program controller, with imported sensor and imported voltage regulating module.
- With leakage protection, thermocouple failure, door opening electrical outage, over-temperature protection and sound-light alarm safety device.
- Lockable handle, quick detachable structure, easy to maintenance and repair.
- Insulated gloves and crucible tongs are standard.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Climate Chamber with Illuminations. Please contact us for more information.
Specifications:
|
Model |
64 segment import controller (Model with P) |
MA0067479 |
|
Function |
Temp. Range |
Max. 1700℃ (Long time Continuous working Temperature) |
|
Temp. Accuracy |
±1℃ |
|
|
Temp. Resolution Ratio |
1℃ |
|
|
Temp. RISING Time To Max Temp |
<140min |
|
|
Structure |
Furnace Body |
HHR Polycrystalline Mullite Fiber |
|
Outer Shell |
Cold rolling steel with electrostatic Spraying exterior |
|
|
Chamber Size |
150*90*150 |
|
|
Exhaust Hole |
Diφ22, Deφ18 |
|
|
Heater |
HHR Silicon Molybdenum Rod |
|
|
Heating Power |
3KW |
|
|
Controller |
Temp. Control |
LCD Imported Programmed Controller ; |
|
Temp. Control Mode |
Intelligent Microcomputer PID Control |
|
|
Display Mode |
5 keys Settings |
|
|
Timer |
0-99hour59min |
|
|
Operation Function |
Constant Value Operation Or Program Operation |
|
|
Sensor |
B-type Thermocouple |
|
|
Additional Function |
Heating Start Stop Button, Sensor Fault Alarm, Temperature Overshoot Self Setting, Temperature Correction |
|
|
Safety Device |
Overtemperature Alarm, Leakage Protection, Door Opening Heating |
|
|
Specification |
Exterior Size (W*L*H)(mm) |
600*755*1100 |
|
Packing Size (W*L*H)(mm) |
760*925*1310 |
|
|
Volume |
2L |
|
|
Current Rating (50/60HZ) |
AC220V, 50Hz |
|
|
NW/GW (kg ) |
70/90 |
|
|
Optional Type |
485 Communication ,U Disk Data Storage |
