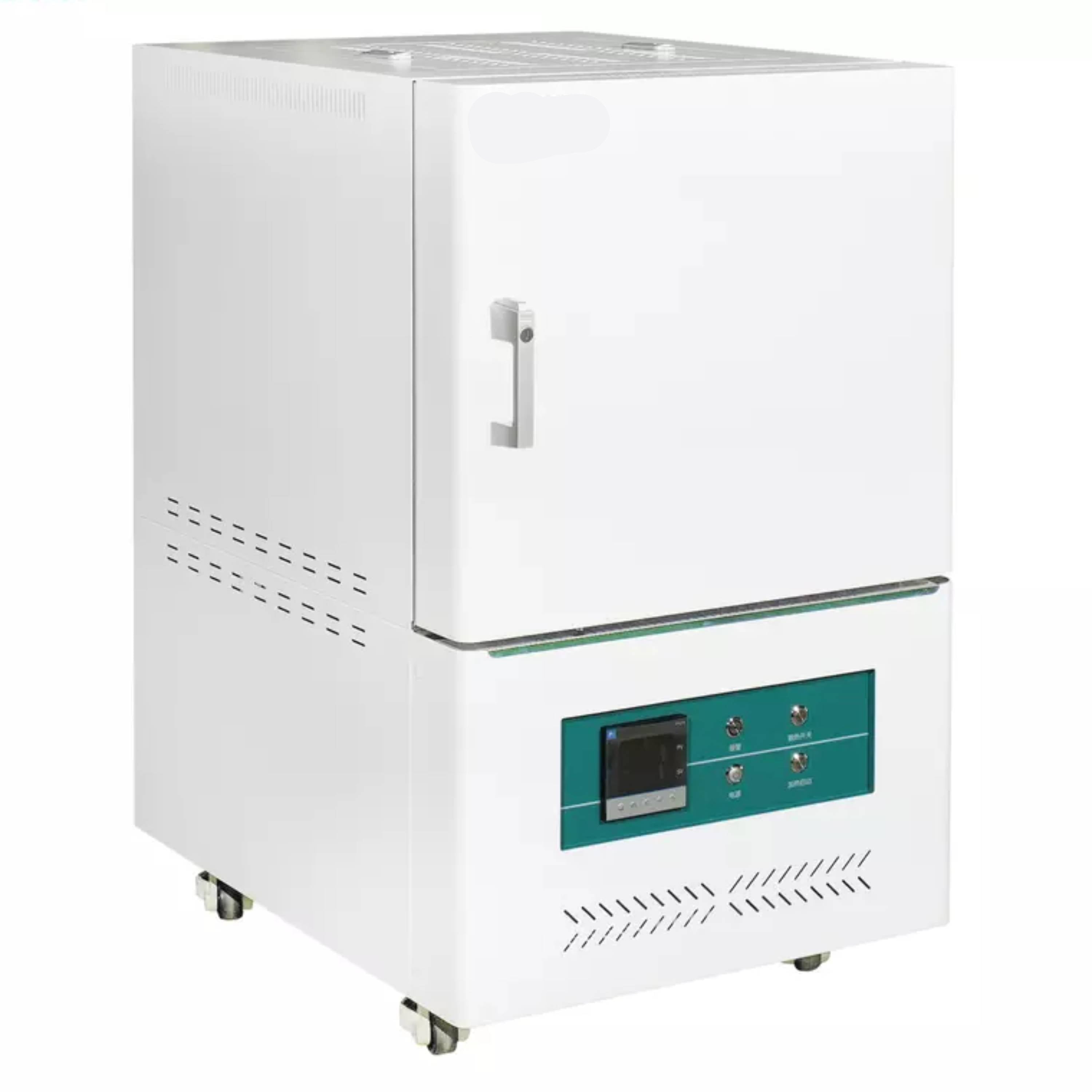

MSE PRO™ 1600℃ Muffle Furnace 64 segment controller (import brand) – 150×90×150mm, 220V, 2L

Product Description

It is used for sintering, melting and analyzing metal, nonmetal and other compound materials in laboratories of universities, research institutes and industrial and mining enterprises.

Features:

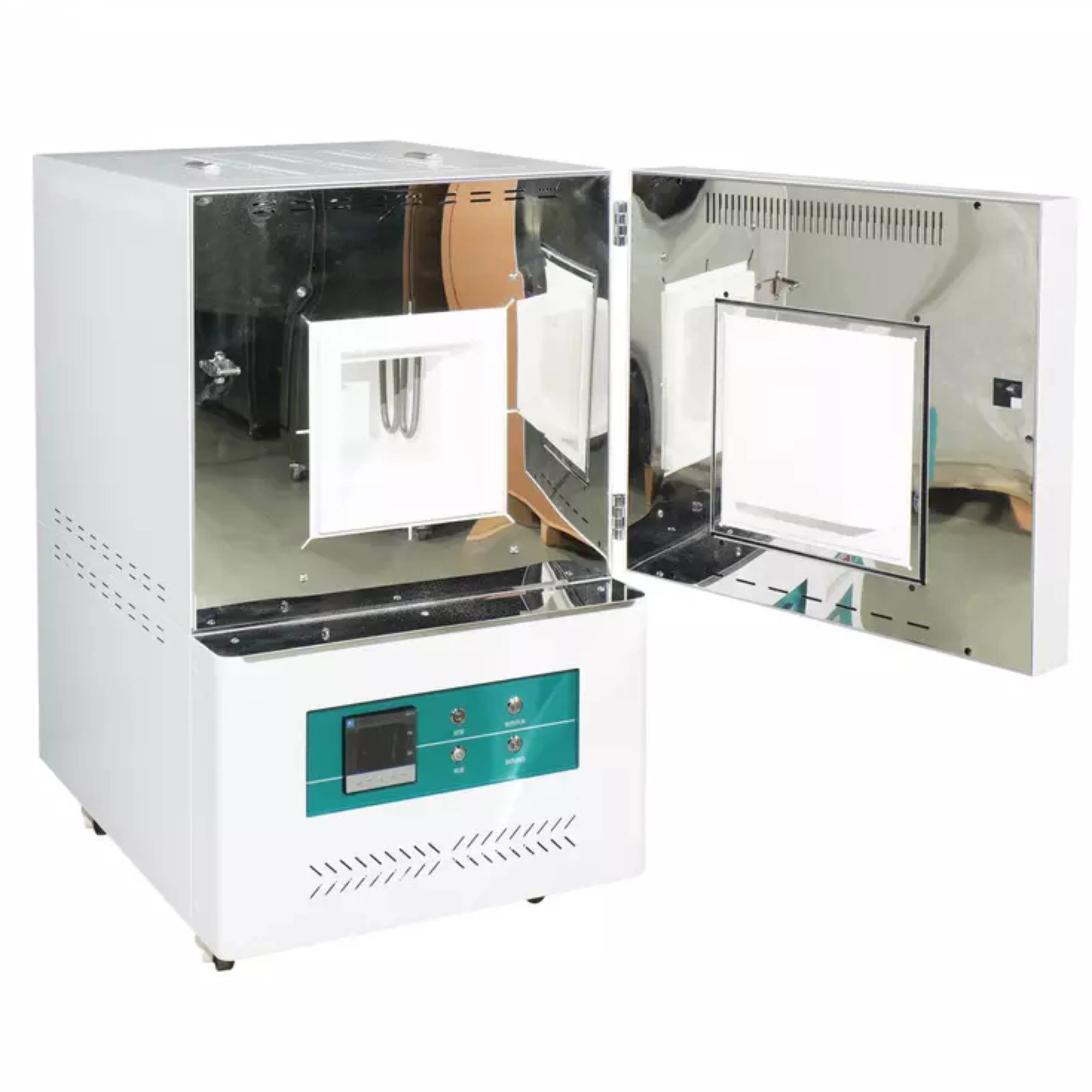

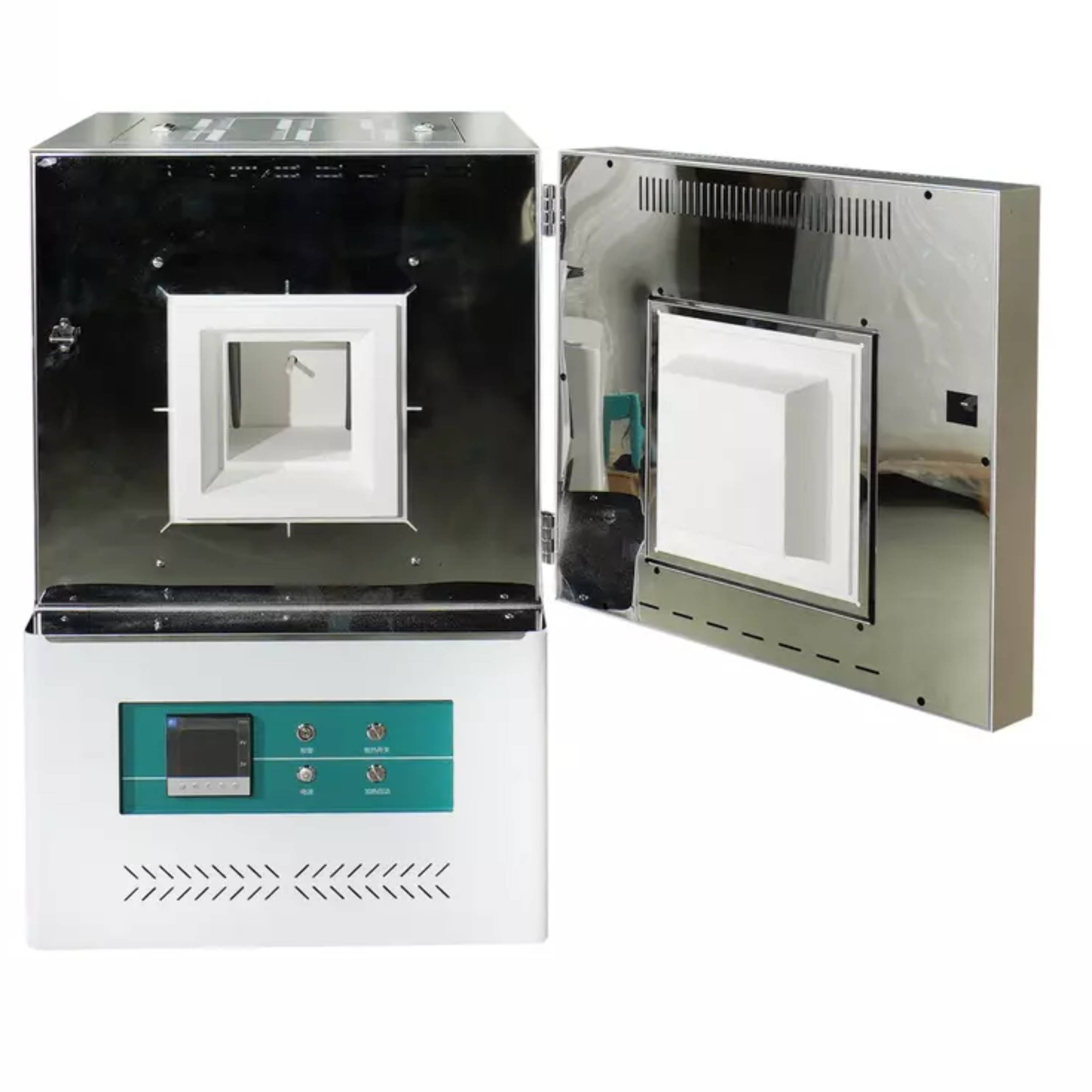

  • Mirror stainless steel furnace mouth, long-term use will not change color.
  • Vacuum-forming polycrystalline mullite fiber furnace, high efficiency insulation.
  • Double shell, the air sleeve heat insulation, and double air guiding passage .
  • High-purity silicon-molybdenum rod heating
  • High precision program controller, with imported sensor and imported voltage regulating module.
  • With leakage protection, thermocouple failure, door opening electrical outage, over-temperature protection and sound-light alarm safety device.
  • Lockable handle, quick detachable structure, easy to maintenance and repair.
  • Insulated gloves and crucible tongs are standard.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Climate Chamber with Illuminations. Please contact us for more information.

Specifications:

Model

64 segment Import

 controller (Model with P)

MA0067497

Function

Temp. Range

Max 1600℃（Long-TERM Max Continuous Service Temperature 1500℃）

Temp. Accuracy

±1℃

Temp. Resolution Ratio

1℃

Temp. RISING Time To Max Temp

<130min

Structure

Furnace Body

Polycrystalline Mullite Fiber

Outer Shell

Cold rolling steel with electrostatic Spraying exterior

Chamber Size

150*90*150

Exhaust Hole

ODφ22, IDφ18

Heater

Silicon Molybdenum Rod

Heating Power

3KW

Controller

Temp. Control

LCD Imported Programmed Controller ;

Temp. Control Mode

Intelligent Microcomputer PID Control

Display Mode

5 keys Settings

Timer

0-99hour59min

Operation Function

Constant Value Operation Or Program Operation

Sensor

S-type Thermocouple

Additional Function

Heating Start Stop Button, Sensor Fault Alarm, Temperature Overshoot Self Setting, Temperature Correction

Safety Device

Overtemperature Alarm, Leakage Protection, Door Opening Heating

Specification

Exterior Size (W*L*H)(mm)

600*755*1100

Packing Size (W*L*H)(mm)

760*925*1310

Volume

2L

Current Rating (50/60HZ)

AC220V, 50Hz

NW/GW (kg )

70/90

Optional Type

Air Inlet
