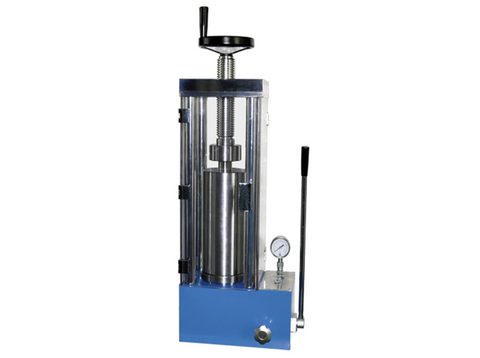

MSE PRO 12T Manual Cold Isostatic Press (CIP) with 22mm ID Vessel and Safety Shield
MSE PRO™ 12T Manual Cold Isostatic Press (CIP) with 22mm ID Vessel and Safety Shield
Cold isostatic pressing (CIP) is a method of compacting powdered materials into a solid homogeneous mass before machining or sintering. Cold isostatic pressing, in which the powder is subjected to equal pressure from all directions, followed by machining, is also in general use for wear and metal forming tools. It is commonly used for parts that are too large to be pressed in uniaxial presses and that do not require high precision in the sintered state. Sometimes referred to as hydrostatic pressing, it is a very simple process capable of producing high-integrity billets or preforms that exhibit little distortion or cracking when fired.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing.
If you need other maximum pressure or customized design, please contact MSE Supplies.
If you use this press inside of glove box, please check the O-ring seal periodically to avoid oil leak.Specification:
|Product SKU #||PR0323|
0-12 Tons (0~17 MPa)
Digital pressure gauge is available with additional cost
|Sample Stage Diameter||95 mm|
|Max. Hydraulic Pressure in Chamber||300 Mpa|
|Bottom Cylinder Traveling Distance||40 mm|
|Sample Vessel ID||22 mm|
|Max. Sample Size||22 mm Dia. x 70 mm|
|Operation Temperature||10 - 40°C|
|Safety Shield Material||Plexiglass|
|Pressure Vessel Material||High Strength Alloy|
305 x 195 x 530 mm
|Net Weight||90 kg|
|Warranty||Limited one year warranty, not responsible for the damage caused by improper use|
|Note||Please clean the press after each use to ensure the best performance and longer life time|
