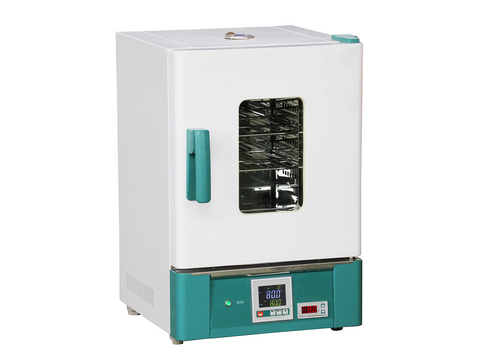

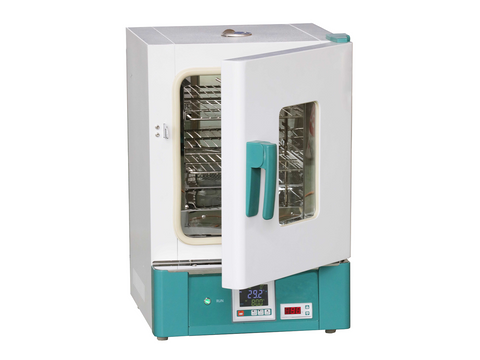

MSE PRO 125L Natural Convection Oven LCD Controller, Digital Temp. Limiter
SKU: MA4157
MSE PRO™ 125L Natural Convection Oven LCD Controller, Digital Temp. Limiter
The MSE PRO Natural Convection Oven with LCD Controller is specifically designed for precise and safe thermal processing in laboratory environments. It utilizes natural air convection for stable heat distribution and integrates intelligent control features for reliable temperature regulation and protection.
- Natural Air Convection: Ensures even temperature distribution through naturally and cyclically moving hot air within the chamber.
- PID Microcomputer Control: Advanced PID system provides stable temperature control with integrated over-temperature protection.
- LCD Temperature Display: Clear and intuitive LCD controller allows for precise temperature settings and monitoring.
- Over-Temperature Protection: Automatically prevents overheating, ensuring safety for samples and equipment.
- High Precision Temperature Limiter: Independent digital limiter adds an extra layer of thermal safety and accuracy.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Convection Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4157 | |
| Cycle Mode | Natural convection | |
| Function | Temp. Range | RT+10-300℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±1℃ | |
| Temp. Uniformity | ±3.5% | |
| Structure | Inner Chamber | Mirror Stainless Steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality rock wool board(with CE) | |
| Heater | Nickel chromium alloy heating wire | |
| Power rating | 2.5kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | Display on upper LCD | |
| Timer | 0-9999min(with timing wait function) | |
| Operation function | Fixed temperature operation, timing function, auto stop. | |
| Additional function | High precision digital independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|
| Sensor | PT100 | |
| Safety Device | Digital Independent Temp. limiter, Over temperature sound-light alarm. | |
| Specification | Inner Chamber size (W*L*H) | 500*450*550 mm |
| Exterior size (W*L*H) | 636*680*915 mm | |
| Volume | 125L | |
| Shelf number | 11 | |
| Load per rack | 15 kg | |
| Shelf space | 40 mm | |
| Current rating (50/60HZ) | AC220V/10.5A | |
| Net Weight | 60 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories | Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen temperature controller. |
|
