MSE PRO 10g Battery Grade 99% High Purity Multi Walled Carbon Nanotubes and 99.9% Carbon Nanofibers

SKU: BR0129

  • $ 11995


Battery Grade High Purity Multi Walled Carbon Nanotubes (MW-CNTs) and Carbon Nanofibers (CNFs)

Product Details:

These carbon nanotubes (CNTs) and carbon nanofibers (CNFs) from MSE Supplies have very high purity (>99.0% or 99.9%) by controlling the catalyst impurity level to be below 1% or even 0.1% through proprietary purification processes.

Battery Grade multi walled carbon nanotubes (MW-CNTs) and carbon nanofibers (CNFs) are built from sp2 carbon units and present a seamless structure with hexagonal honeycomb lattices, being several nanometers in diameter and many microns in length. MW-CNTs and CNFs are commonly synthesized by chemical vapor deposition (CVD) and the diameter of carbon nanotubes can be controlled by deposition conditions, such as metal catalyst material, temperature and carbon precursor feed speed.

Specifications

Product SKU# BR0129 BR0130 BR0131
Material CNTs
CNTs
CNFs
Pack Size
10g/bottle 10g/bottle 10g/bottle
Purity  >99.0% >99.0% >99.9%
Outer Diameter, OD (nm) 10~15 30~80 100~200
Average Length (um)
<100 <20 <50
Specific Surface Area (m2/g) 150~250 80~120 50~120



Applications:

Because of their good electronic/thermal conductivity and mechanical properties, high purity battery grade MW-CNTs and CNFs have been widely used for

  • lithium ion batteries (as conductive additives)
  • supercapacitors
  • fuel cells
  • flexible solar cells and screens
  • conductive polymers
  • conductive painting
  • composites

Examples of applications of battery grade MW-CNTs in lithium ion battery materials:

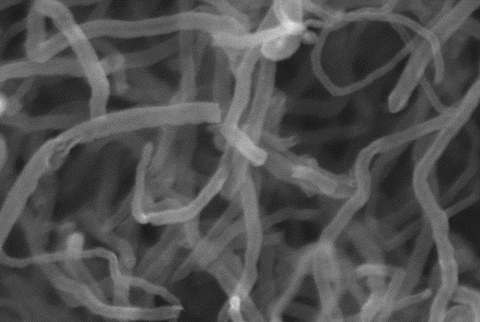

The SEM image above shows carbon nanotubes (CNTs) mixed with lithium cobalt oxide (LCO)

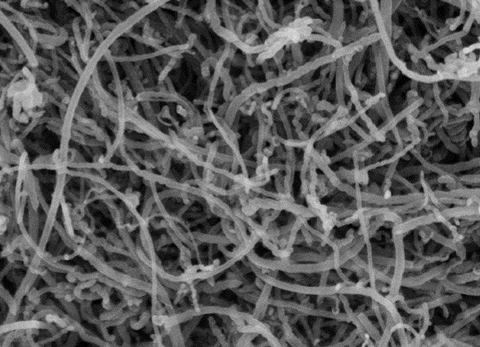

The SEM image above shows carbon nanotubes (CNTs) mixed with lithium titanate (LTO)



References:

1. Carbon nanotubes for lithium ion batteries, Energy Environ. Sci., 2009, 2, 638-654

2. Carbon Nanotubes for Supercapacitor. Nanoscale Res. Lett. 5, 654 (2010).
