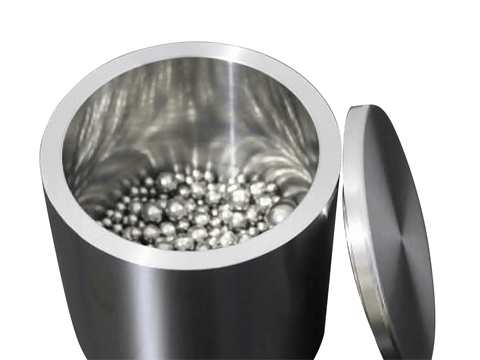

MSE PRO 1.5L (1,500 ml) Stainless Steel Planetary Milling Jar - 304 Grade
Specifications for Stainless Steel Grinding Jar
- Grade 304 is the most widely used austenite steel, also known as 18/8 for its composition of 18% chromium and 8% nickel. 304 may be referred to as A2 stainless (not to be confused with A2 grade steel, also named Tool steel, a steel).
- The grinding jars are extensively applied to in the fields of Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, Paint, Ink, geology and so on.
- Each jar set includes grinding jar, jar lid, rubber sealing gasket.
- Milling media sold separately
Note: Other types of stainless steel are available upon request 316 or 316L for food and pharmaceutical applications, contact us at email@example.com today.
Features of Stainless Steel Grinding Jar with Milling Media
Item No.: JA0326
Material: stainless steel (Fe-Cr-Ni)
Grinding Jar Volume: 1500 ml (1.5 L)
Max Loading Capacity: 2/3 capacity of the grinding jar
Main Chemical Compositions: Fe (70.6~67.4%), Cr (17~19%), Ni (8~10%)
Hardness: <=187 HB
Attachments: lid & silicon sealing gasket
Grinding Balls: stainless steel balls (included in the jar set)
Grinding Ball Diameters: 3/5/8/10/15/20/25/30mm
Abrasion Resistance: fairly good
Suitable for: medium-hard, brittle samples
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.
