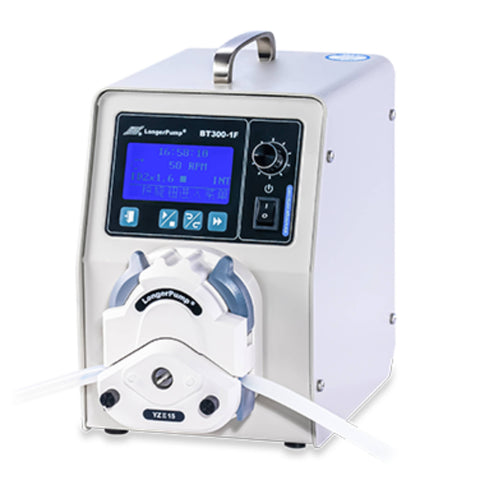

LongerPump BT300-1F Peristaltic Filling Pump
SKU: BT300-1F-1140
LongerPump BT300-1F Peristaltic Filling Pump
Buy LongerPump products from MSE Supplies at the best value.
The BT300-1F peristaltic dispensing pump is primarily designed for laboratory applications. It accurately delivers liquids at specified volumes, with flow rate and dispensing calibrations that guarantee precise and reliable performance.
Order Peristaltic Pump Tubing Through MSE Supplies HERE!
This Peristaltic Pump comes with 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.
Product Features
- Dispensing peristaltic pump BT300-1F is mainly used in laboratory.
- The pump could complete the dispensing function at desired volume. The flow rate calibration and dispensing calibration ensure the high accuracy and precision.
- The back suction function could prevent the liquid leaking. The pump works in reverse for a given time when the pump stops running at dispensing mode. Easy to use and more convenient.
- Acceptable pump heads are YZ1515x, YZII15, YZ2515x, YZII25, DMD15 and DG15 series.
- The pump delivers flow rate from 0.07 to 1500ml/min.

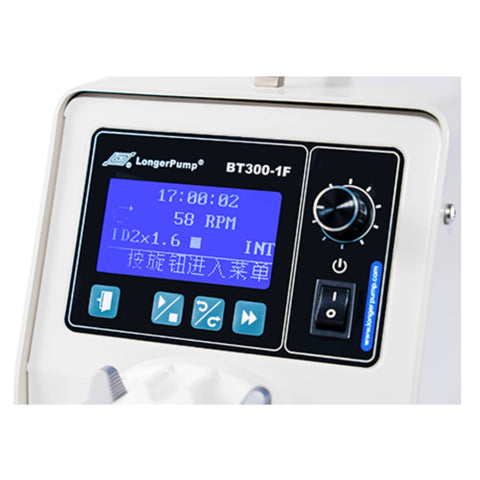

- The LCD could display the parameters and running state. The pump could be controlled through control panel, external control interface and RS485 communication interface.
- Store the running parameter automatically.
- CE certification.
Product Parameters
|
Parameters |
BT300-1F |
|
Max. flow rate(Single Channel) |
1500mL/min |
|
Pump speed |
1rpm-300rpm, CW/CCW |
|
Speed resolution |
1rpm |
|
Display |
LCD for speed, flow rate, volume and other parameters |
|
Work mode |
Continuous mode; Multi-dispensing mode |
|
Control mode |
Keypad control; Footswitch control; External control; Communication control |
|
Calibration function |
Flow rate calibration; Volume calibration |
|
External control |
Control function: start/stop, running direction, speed; Pump status output: run/stop, running direction, speed |
|
Communication control |
RS485 |
|
Dimensions (L x W x H) |
202×160×239(mm) |
|
Power supply |
AC 220V±10%/50W, AC 110V±10%/50W, 50/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
relative humidity＜80% |
|
IP rating |
IP31 |
|
Weight |
4.3kg |
Technical Specifications
|
Speed |
1rpm-300rpm, CW/CCW |
|
Speed resolution |
1rpm |
|
Control mode |
Control panel, external signal control and communication |
|
Display |
LCD for running status |
|
Work mode |
Flowrate mode and dispensing mode |
|
Flowrate calibration |
Improve flow rate accuracy |
|
Dispensing volume |
0.1mL-99.9L |
|
Dispensing calibration |
Calibrate dispensing volume to improve accuracy |
|
Copy number |
0 to 65000, “0” means unlimited cycle |
|
Pause time |
0.1s-999s (0.1s resolution within the time of 0.1s-100s, |
|
Back suction angle |
0-360°, resolution is 18° |
|
External control |
Start/stop, direction and speed control (4-20mA, 0-5V, |
|
Speed output |
0-5V corresponding to 1-300rpm |
|
Start/stop output |
OC gate signal |
|
Direction output |
OC gate signal |
|
Communication interface |
RS485 |
|
Power-off memory |
Return to previous status when powered on |
|
Prime |
For fast filling and emptying at full speed |
|
Dimension (L×W×H) |
202×160×239（mm） |
|
Power supply |
AC 220V±10%/50W or AC 110V±10%/50W |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
4.3kg |
Compatible Pump Head and Tubing
|
Model |
Pump Head |
Tubing |
Max. Flow Rate(m |
Weight |
|
BT300-1F-A |
YZ1515x, YZII15 |
13# 14# 19# 16# 25# 17# 18# |
1140 |
4.7 |
|
YZ2515x |
15# 24# |
840 |
||
|
YZII25 |
15# 24# 35# 36# |
1500 |
||
|
DMD15-13-B, DMD15-13-D |
13# 14# 19# 16# 25# |
1040 |
4.7 |
|
|
DG15-24 |
16# 25# 17# |
900(Single |
5.1 |
