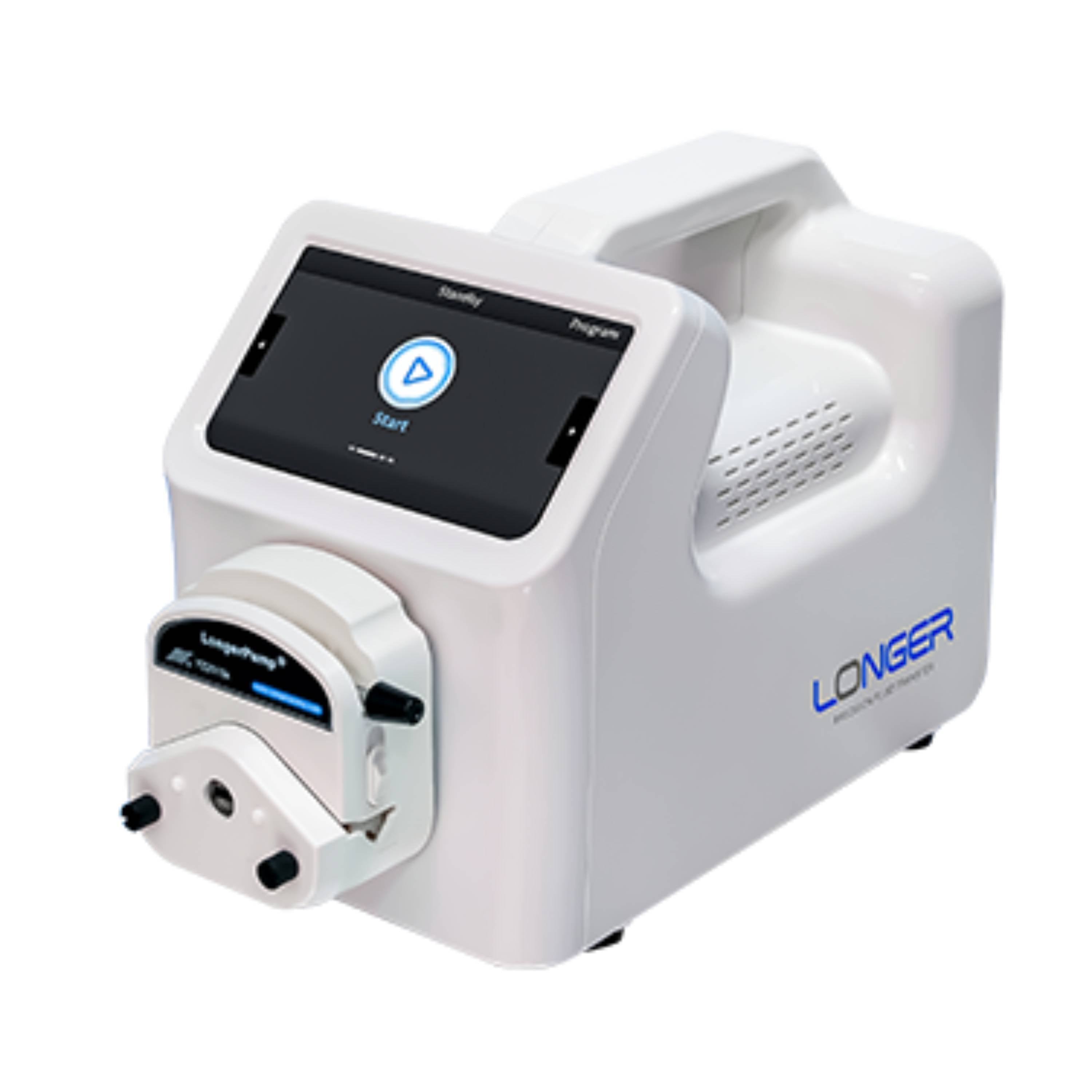

LONGER L100-1FS Intelligent Peristaltic Pump
Intelligent peristaltic pump L100-1FS is used in laboratory and smaller batch production. The pump adopts 7 inch touch screen with intuitive graphic interface. Multiple function modules and intelligent algorithms are designed for a wide variety of applications, to run complex liquid transferring process. Automatic identification of pump head and tubing, simplify the operation process and provide reliable guarantee for high-precision fluid transferring. Acceptable pump heads are YZ1515x, YZ2515x, YZII15, YZII25, BZ series, DG series, DG15 series, DMD15-13, FG15-13 and FG25-13. The pump delivers flow rate from 0.15ul/min to 500ml/min. The pump could be controlled through touch screen, footswitch, analog signal and RS485 communication and combined with a variety of interfaces (USB, RJ11, DB9 etc.) for easy system connection. CE certification.
Product Features
- Intelligent peristaltic pump L100-1FS is used in laboratory and smaller batch production.

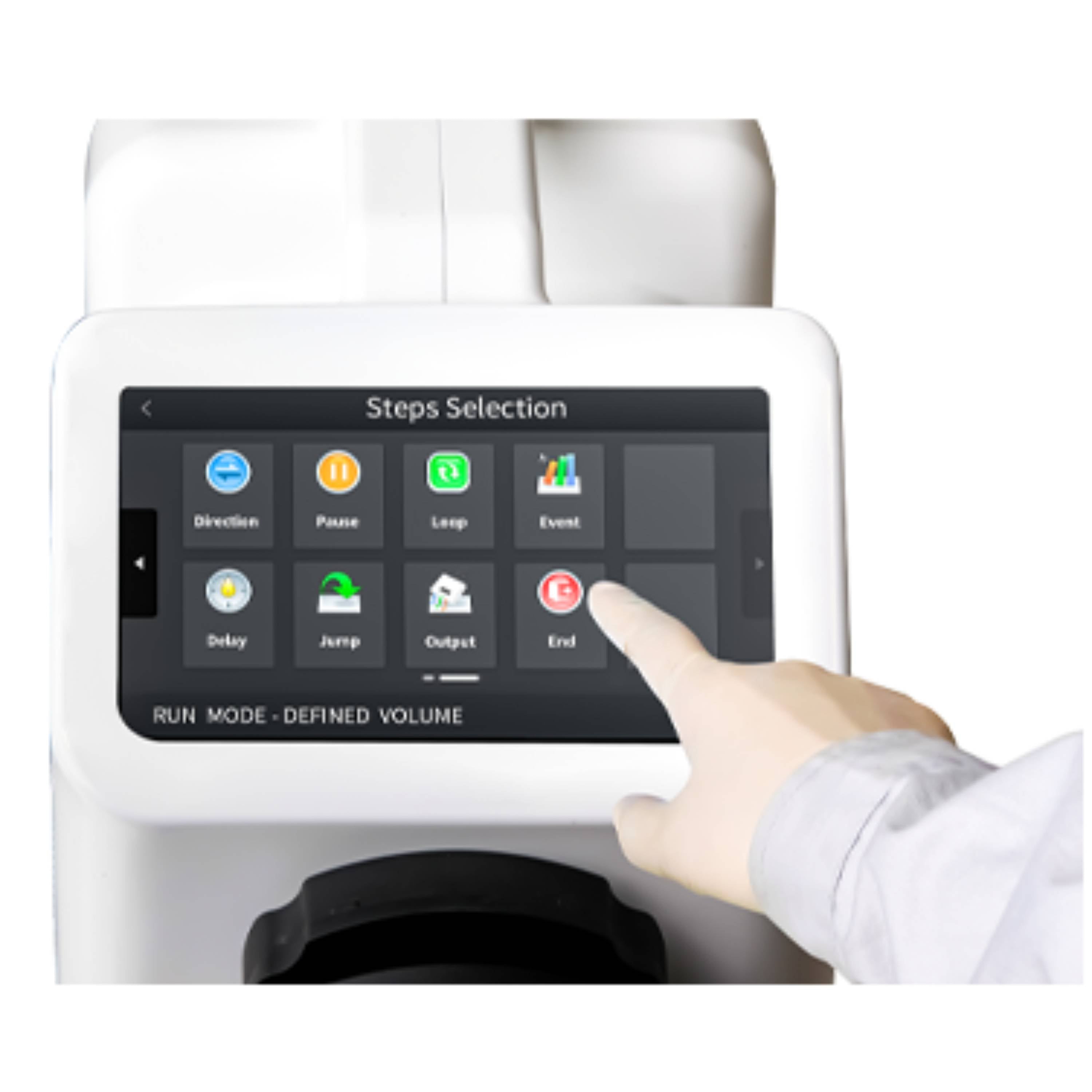

- The pump adopts 7 inch touch screen with intuitive graphic interface. Multiple function modules and intelligent algorithms are designed for a wide variety of applications, to run complex liquid transferring process.
- Automatic identification of pump head and tubing, simplify the operation process and provide reliable guarantee for high-precision fluid transferring.
- Acceptable pump heads are YZ1515x, YZ2515x, YZII15, YZII25, BZ series, DG series, DG15 series, DMD15-13, FG15-13 and FG25-13.
- The pump delivers flow rate from 0.15ul/min to 500ml/min.

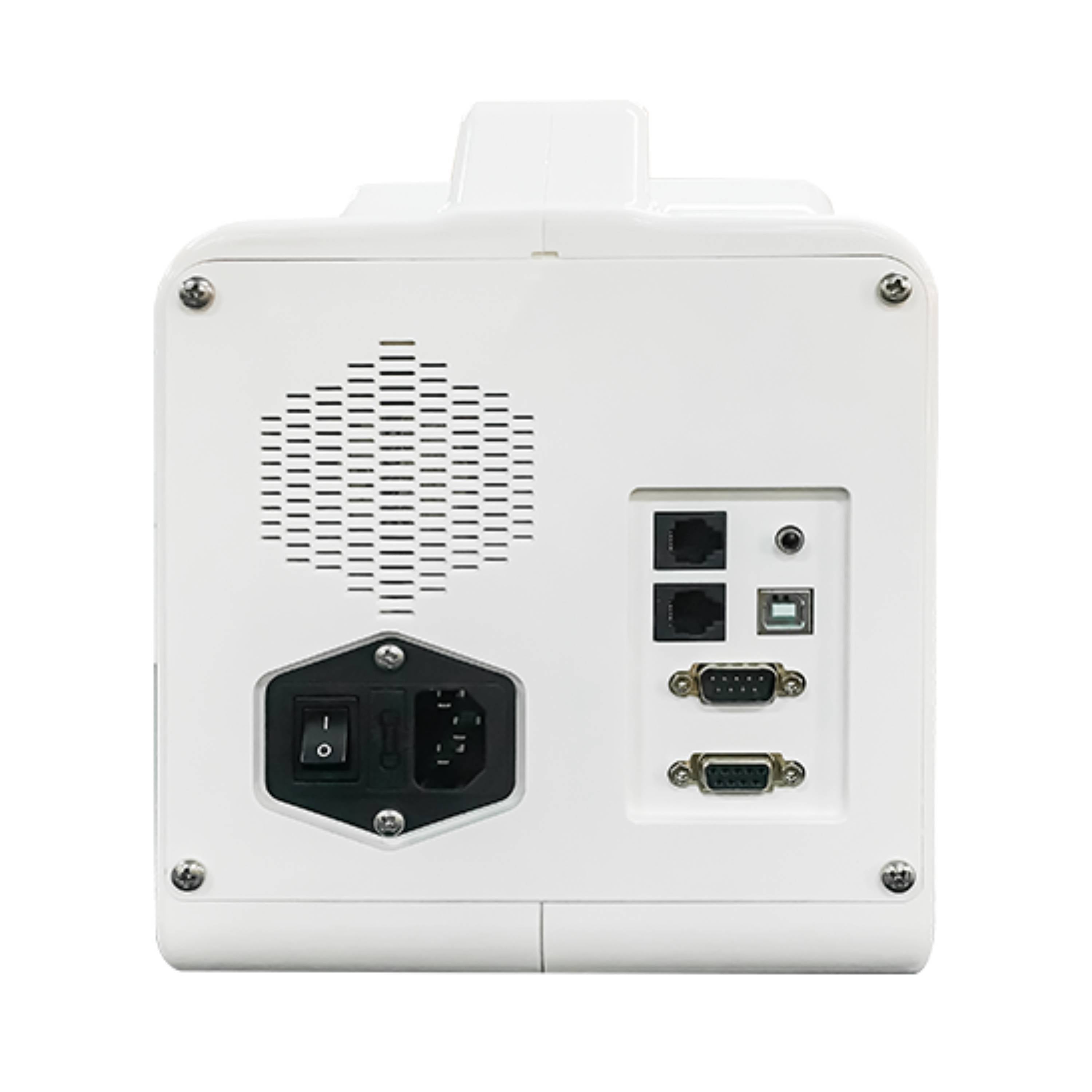

- The pump could be controlled through touch screen, footswitch, analog signal and RS485 communication and combined with a variety of interfaces (USB, RJ11, DB9 etc.) for easy system connection.
- CE certification.
Product Parameters
|
Parameters |
L100-1FS |
|
Max. flow rate (Single Channel) |
500mL/min |
|
Pump speed |
0.1rpm -100rpm，CW/CCW |
|
Speed resolution |
0.1rpm |
|
Display |
7 inch color LCD for time, flow rate, volume and other parameters |
|
Work mode |
Continuous mode, Time mode, Volume mode, Multi-dispensing mode, Programming mode |
|
Control mode |
Touch screen control, Footswitch control, External control, Communication control |
|
Calibration function |
Flow rate calibration, Volume calibration |
|
External control |
Control function: start/stop, running direction, speed Pump status output: run/stop, running direction |
|
Communication control |
Interface: RJ11(RS485), USB; Protocol: Modbus RTU |
|
Dimensions(L x W x H) |
294×180×235(mm) |
|
Power supply |
AC220V±20%, 50Hz/60Hz; AC110V±20%, 50Hz/60Hz |
|
Operating temperature |
0℃-40℃ |
|
Relative humidity |
＜80% |
|
IP rating |
IP31 |
|
Weight |
0.5kg |
Technical Specifications
|
L100-1FS |
|
|
Speed |
≤100rpm,CW/CCW |
|
Speed resolution |
0.1rpm |
|
Flow rate |
0.15uL/min-500mL/min |
|
Dispensing volume |
< |
