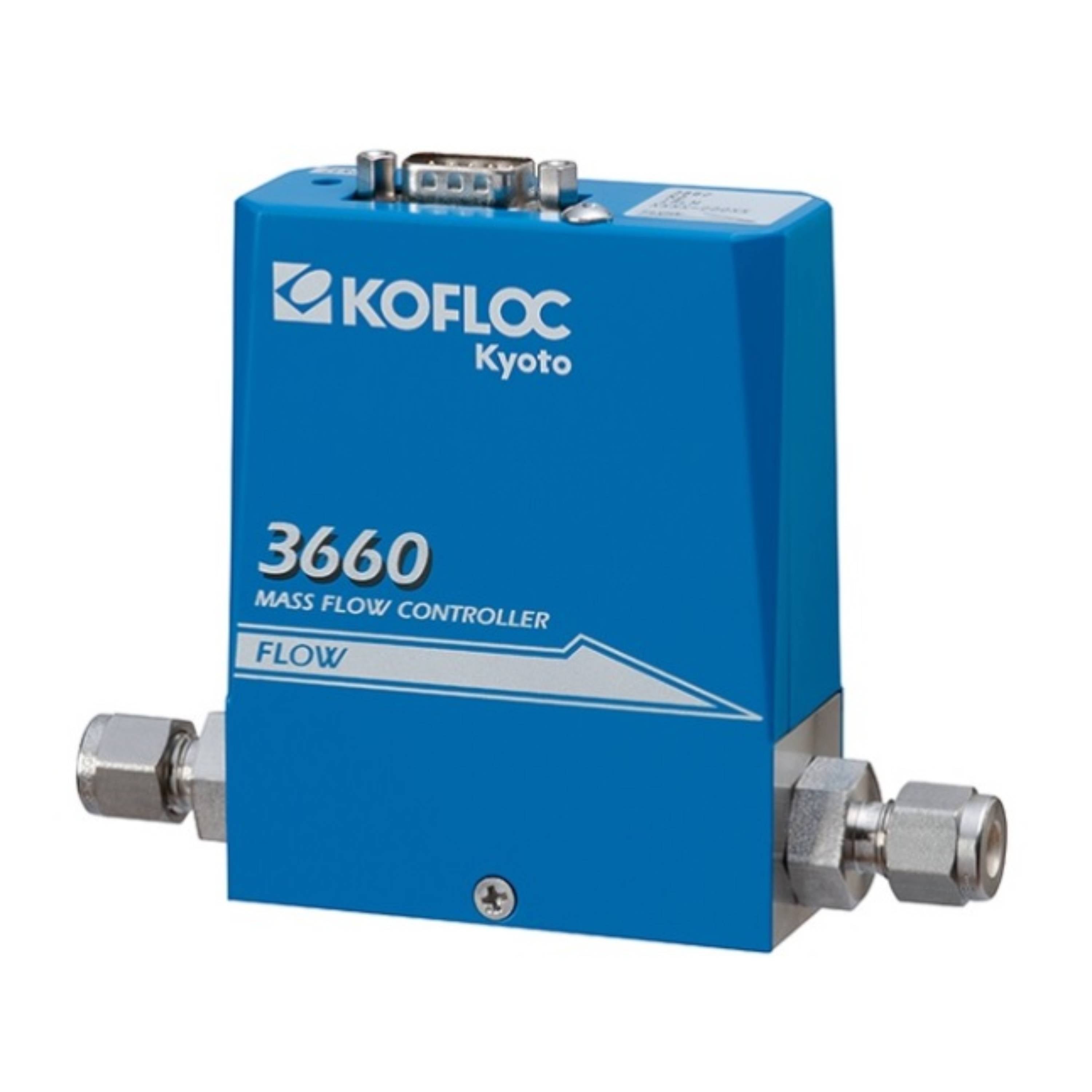

Kofloc Standard Mass Flow Controller Model 3660 Series
Buy KOFLOC Products from MSE Supplies at the best value.
-
Applicable gas:
-
N₂, Air, H₂, He, Ar, O₂, CO₂ etc.
-
-
Flow range:
-
10SCCM～100SLM
-
-
Accuracy:
-
±1～1.5%F.S.
-
- Capable of wide flow range from F.S.10SCCM to F.S.100SLM by N₂ conversion.
- CE
![]()
Specifications:
|
MODEL |
3660 |
3665 |
|
Sensor type |
Thermal sensor |
|
|
Valve type |
Proportional solenoid valve (normally closed) |
|
|
Applicable gas |
N2, Air, H2, He, Ar, O2, CO2, etc |
|
|
Full-scale flow rate (N₂ equivalent) |
10SCCM to 20SLM |
30 to 100SLM |
|
Control range |
2 to 100%F.S. |
5 to 100%F.S. |
|
Response |
Within 2sec. (within ±2% F.S.) |
Within 3sec. (within ±2% F.S.) |
|
Accuracy |
±1%F.S. (25°C) |
±1.5%F.S. (25°C) |
|
Temperature coefficient |
±0.1%F.S./°C (15 to 35°C) |
±0.2%F.S./°C (15 to 35°C) |
|
Repeatability |
±0.5%F.S |
|
|
Operating differential pressure |
F.S. ≤ 5SLM 50 to 300kPa, F.S. > 5SLM 100 to 300kPa |
F.S. ≤ 50SLM 150 to 300kPa, F.S. > 50SLM 200 to 300kPa |
|
Max. inlet pressure |
500kPa(G) |
|
|
Proof pressure |
1MPa(G) |
|
|
He Leak rate |
≤ 1 x 10-8Pa·m³/s |
|
|
Allowable ambient temperature |
5 to 45°C |
|
|
Allowable storage temperature |
-10 to 60°C |
|
|
Allowable ambient humidity |
10%RH to 90%RH (no dew condensation) |
|
|
Materials of parts in contact with gases |
SUS316L, SUS316, Magnetic stainless steel, FKM (option: NBR or CR) |
|
|
Electrical connection |
D-sub 9 pins, KFC standard (compliant with the SEMI standard) |
|
|
Flow rate setting signal |
0 to 5VDC (Input impedance: 1MΩ or more) |
|
|
Flow rate output signal |
0 to 5VDC (Load resistance: 250kΩ or more) |
|
|
Power supply |
+15VDC (±5%) 100mA, -15VDC (±5%) 250mA |
|
|
Fittings |
Standard: 1/4SWL type, Option: 1/8SWL type, 1/4VCR type, Rc1/4 |
Standard: 3/8SWL type, Option: 1/2SWL type, 1/2VCR type, Rc3/8 |
|
Weight |
Approx. 1,000g |
Approx. 1,500g |
