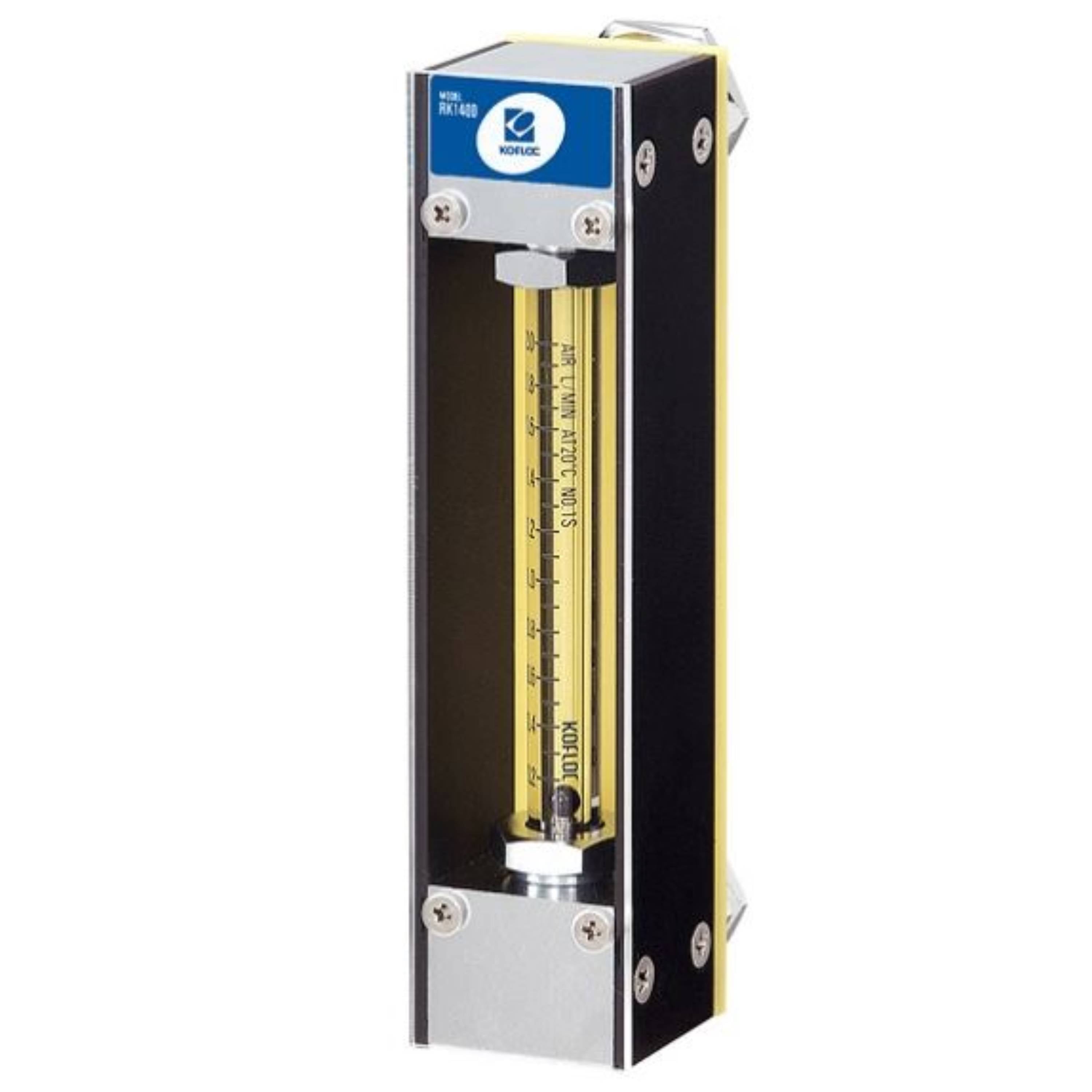

Kofloc High-precision Flow Meter Model RK1400 Series
SKU: RK1400-12-SS-Air-5mL/min
Kofloc High-precision Flow Meter Model RK1400 Series
Buy KOFLOC Products from MSE Supplies at the best value.
-
Fluid:
- Gas: N₂, Air, H₂, He, Ar, O₂, CO₂ etc.
- Liquid: H₂O
-
Flow rate:
- Gas: 5mL/min～100L/min
- Liquid: 5mL/min～2L/min
- Accuracy: ±2%F.S.
- Available for a wide range of flow rate from minute flow.
- High-accuracy measurement of ±2% F.S. or better.
- Wide variations suitable for various conditions of use.
![]()
Specifications:
|
MODEL |
RK1400 |
|
|
Applicable fluids |
N2, Air, H2, He, Ar, O2, CO2, etc. |
H2O |
|
Max. flow rate (Air atm condition for gas) |
5mL/min to 100L/min (See the Capacity Table below) |
5mL/min to 2L/min (See the Capacity Table below) |
|
Effective scale |
10:1 |
|
|
Accuracy |
±2%F.S. |
|
|
Proof pressure |
100mL/min or less: 1MPa(G) |
5mL/min or less: 1MPa(G) 150mL/min or less: 0.7MPa(G) 200mL/min or more: 0.5MPa(G) |
|
Max. working temperature |
60°C |
|
|
Materials of parts in contact with fluid |
SS: SUS316, Hard glass, FKM, (PTFE, PCTFE) |
|
|
Connection |
Rc1/4 |
|
|
Weight |
Approx. 400g |
|
