KITTEC is the first manufacturer worldwide to offer square kilns without the heavy, bulky steel frame. These kilns are therefore very easy to transport, since they will fit through any door opening of 50 cm or more. With the SQ model series, you also have the possibility of extending it with an extension ring.

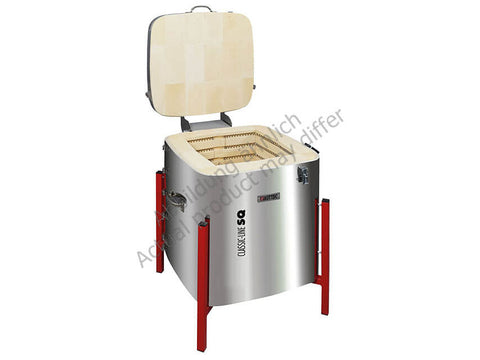

KITTEC SQ 50 PLUS Classic-Line, SQ electric top-loader Kilns, up to 1,320 °C
SKU: SQ 50 PLUS
KITTEC SQ 50 PLUS Classic-Line, SQ electric top-loader Kilns, up to 1,320 °C
Buy KITTEC furnaces from MSE Supplies with the best price.
Further features of the SQ model series:
- Powder-coated base – in your choice of one of five colors
- Stainless steel fastening clamps, welded on – rust-proof and easy moving
- Two-layer insulation: Lightweight refractory brick +high quality, ceramic fiber free insulation
- Continuous mortar-free brick lining reduces cracking
- Exhaust cowl at right-hand side, protected from condensation
- Lid lock (with lockable eyelet)
- Useful handles for secure and quick transport
Variants of the SQ model series:
- SQ Plus models, in addition to the lightweight refractory brick, also contain high-quality and innovative premium insulation in the sides and the base.
- SQ S models are constructed for high current operation.
- SQ extension rings (with their own heating elements) make it possible to extend certain SQ models to have bigger firing chambers.
Additional capacity with extension rings
The KITTEC CLASSIC-LINE extension rings (with own heating elements) for the CB and SQ model series bring additional volume and therefore more space and flexibility. In this way, extending a SQ 90 S to a SQ 140 S provides additional volume of 50 l. The divisibility of these extendible or extended models makes transport through the narrowest of door openings possible (from door width of 50 cm). The extension rings are currently available for the following CLASSIC-LINE SQ kilns: SQ 90 S and SQ 150 S.
Specifications:
| Technical data | SQ 50 PLUS |
| Design type | Top-loader |
| Energy supply | Electric |
| Max. temperature [°C] | 1280±30 |
| Power [kW] | 3,6 |
| Voltage [V] | 230 N~ |
| Current [A] | 16 |
| Volume [l] | 52 |
| Firing chamber diameter [mm] | - |
| Firing chamber width [mm] | 380 |
| Firing chamber height [mm] | 340 |
| Firing chamber depth [mm] | 380 |
| External width [mm] | 670 |
| External depth [mm] | 770 |
| External height including base [mm] | 660 |
| External height with inverted base [mm] | 890 |
| Weight [kg] | 55 |
| Form | square |
| Appropriate furniture set | Furniture Set SQ |
