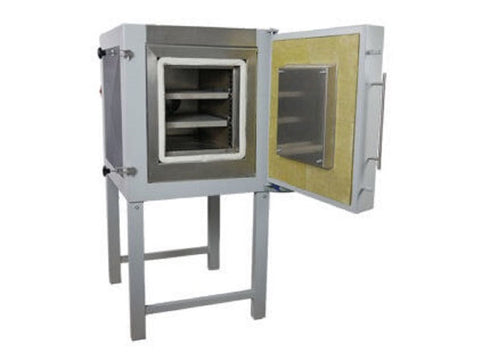

KITTEC CLU 800/65 INDUSTRIAL-LINE MODEL SERIES CLU CIRCULATING-AIR CHAMBER KILNS, UP TO 850°C
SKU: CLU800/65
KITTEC CLU 800/65 INDUSTRIAL-LINE MODEL SERIES CLU CIRCULATING-AIR CHAMBER KILNS, UP TO 850°C
The KITTEC CLU kilns have a frame made from powder-coated sheet steel and an interior made from stainless steel. They are perfectly designed for stress relief annealing, tempering, precipitation and keeping warm.
- Short heat-up times
- Temperature distribution within the usable space ±5°C (with soaking times of > 30 minutes), based on DIN17052
- High-quality and energy saving insulation using mineral fibre boards
- Horizontal air circulation
- Powder-coated steel frame
- Stainless steel interior
- Stainless steel side panels with rear ventilation for low outside temperatures fulfil the industrial standards
- Heating system with long service life
- CLU 15 comes as a table-top model, all others with removable pair of legs for easier transport
Specifications:
| Model | CLU800/65 |
| Form | Chamber Kiln |
| Firing chamber width [mm] |
800 |
| Firing chamber depth [mm] | 1250 |
| Firing chamber height [mm] |
800 |
| Volume [l] |
800 |
| External width [mm] |
1665 |
| External depth [mm] | 2100 |
| External height including base [mm] | 1855 |
| Max. temperature [°C] | 650 |
| Power [kW] | 35 |
| Voltage [V] | 400 3 N~ |
| Current [A] | 3x51 CEE63 |
| Weight [kg] | 895 |
