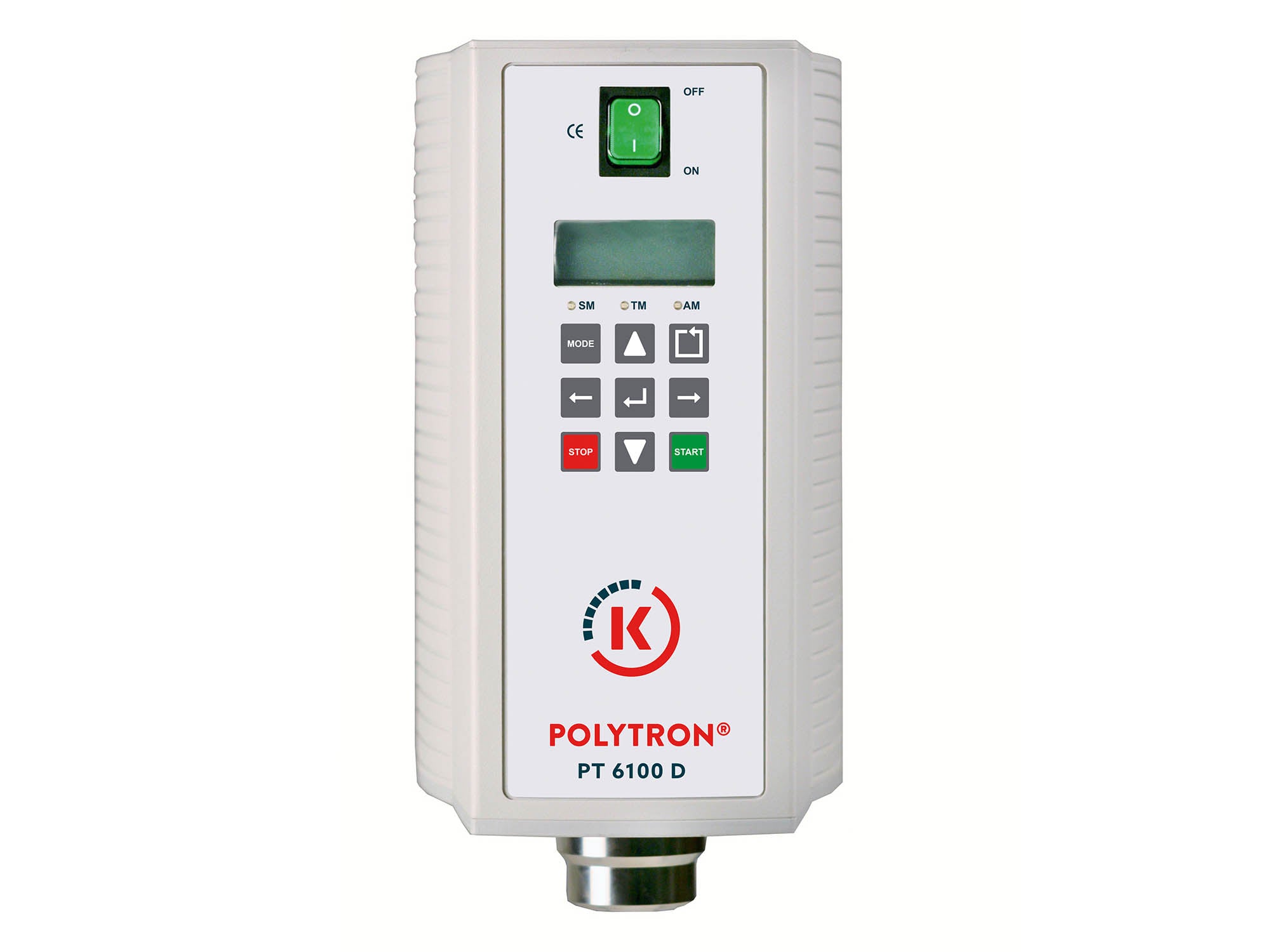

Kinematica Polytron® PT 6100 D Powerful Stand-Disperser (High-End Line)
SKU: 11010110
Kinematica Polytron® PT 6100 D Powerful Stand-Disperser (High-End Line)
Buy Kinematica products from MSE Supplies at the best value.
Search our website for compatible aggregates, accessories, and vessels!
Description
Powerful tripod disperser (high-end line), flexible use with EU power cable, PC software, RS-232 / USB cable (230 V)
The highest demands on reproducibility or scale-up are covered by the power reserves of this drive, even for larger quantities. The completely digitized control and regulation system can be operated in the simplest possible way. The illuminated LCD display shows all the necessary parameters and can be adjusted if necessary.
Drive unit incl. power cable EU type E+F (CEE7/7)
Comparison of different drives
BENEFITS
Ergonomics
– Easy operation with on/off switch and membrane keypad
– Digital speed control for a long service life
– Overheating, overload and blocking protection
– Speed stability, even in the event of
viscosity changes– Easy height adjustment of the drive (depending on the tripod)
– Unit change by Click & Go quick coupling
– Easy cleaning of the unit thanks to EasyClean design
Convincing results
– Smallest particle/droplet sizes, because precise analyses require homogeneous samples
– Efficient sample preparation, because fast dispersion saves time
– Standard or special units – perfected for and with users
– Cleaning and disassembly is child's play
thanks to the EasyClean design – Fast coupling of the units by Click & Go
– Best materials, because without them it would not be Swiss Made
– Longevity is a Swiss virtue
Technical Data
| Min. volume (ml) |
0.1 |
| Max. volume (ml) |
30000 |
| Drive power (W) |
1700 |
| Peripheral speed |
Up to max. 32 m/s |
| Usable units |
Ø 5 mm to 65 mm |
| Range |
1,000 to 26,500 rpm |
| Drive clutch |
Power units with F-coupling |
| Noise level (drive without unit) |
82 dB(A) at 26,500 rpm |
| Engine |
Uniform with carbon brushes |
| Connection voltage |
110 – 230 V ± 10%, 50Hz / 60Hz |
| Maximum relative humidity |
80% during storage / 80% during operation |
| Operating temperature |
0 – 40 °C |
| Protection class according to DIN |
RS-232 (D SUB 9) / USB socket B |
| Dimensions (L x W x H) |
IP 20 |
| Weight |
Drive: 235 x 164 x 313 mm |
| EMC standards |
Drive: 7.4 kg |
| Safety standard |
IEC / EN 61000-6-2 / EN 61000-6-3 |
| Min. Volume (ml) |
IEC / EN 61010-2-51 |
