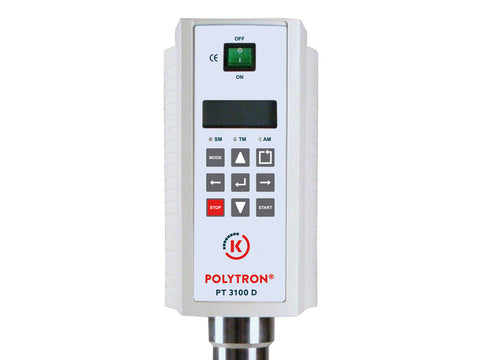

Kinematica Polytron® PT 3100 D Stand-Disperser (High-End Line)
SKU: 11010120
Kinematica Polytron® PT 3100 D Stand-Disperser (High-End Line)
Buy Kinematica products from MSE Supplies at the best value.
Search our website for compatible aggregates, accessories, and vessels!
Description
Tripod disperser (high-end line), flexible use with EU power cable, PC software, RS-232 / USB cable (230 V)
Applications with the highest demands on reproducibility or scale-up are efficiently mastered with this device. The completely digitized control and regulation system can be operated in the simplest way. All parameters are visible on the illuminated LCD display. These can be changed using a membrane keyboard.
Drive unit incl. power cable EU type E+F (CEE7/7)
Comparison of different drives
BENEFITS
Ergonomics
– Simple operation with on/off switch and membrane keypad
– Digital speed control for a long service life
– Overheating, overload and blocking protection
– Speed stability even in the event of
viscosity changes– Easy height adjustment of the drive (depending on the tripod)
– Engine change thanks to Click & Go quick coupling
– Easy cleaning of the units thanks to EasyClean design
Convincing results
– Smallest particle/droplet sizes, because precise analyses require homogeneous samples
– Efficient sample preparation, because fast dispersion saves time
– Standard or special units – perfected for and with users
– Cleaning and disassembly is child's play
thanks to the EasyClean design – Fast coupling of the units by Click & Go
– Best materials, because without them it would not be Swiss Made
– Longevity is a Swiss virtue
Technical Data
|
Min. volume (ml) |
0.1 |
|
Max. volume (ml) |
10000 |
|
Drive power (W) |
1200 |
|
Peripheral speed |
Up to max. 32 m/s |
|
Usable units |
ø 5 mm to ø 36 mm |
|
Range |
500 to 30 000 rpm |
|
Drive clutch |
Power units with F-coupling |
|
Noise level (drive without unit) |
66 dB(A) at 25,000 rpm / 73 dB(A) at 30,000 rpm |
|
Engine |
Uniform with carbon brushes |
|
Connection voltage |
110 – 230 V ± 10%, 50Hz / 60Hz |
|
Maximum relative humidity |
80% during storage / 80% during operation |
|
Min. Volume (ml) |
0 – 40 °C |
|
Max. Volume (ml) |
RS-232 (D SUB 9) / USB socket B |
|
Protection class according to DIN |
IP 20 |
|
Dimensions (L x W x H) |
Drive: 240 x 130 x 265 mm |
|
Weight |
Drive: 3.9 kg |
|
EMC standards |
IEC / EN 61000-6-2 / EN 61000-6-3 |
|
Safety standard |
IEC / EN 61010-2-51 |
