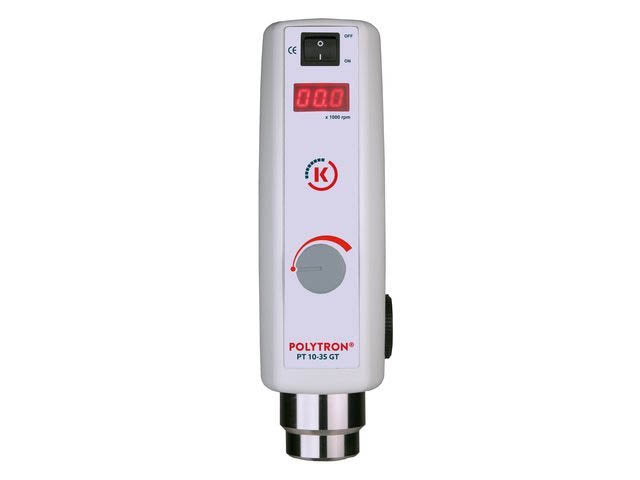

Kinematica Polytron® PT 10-35 GT Powerful Stand-Disperser (Ecoline)
SKU: 11010104
Kinematica Polytron® PT 10-35 GT Powerful Stand-Disperser (Ecoline)
Buy Kinematica products from MSE Supplies at the best value.
Search our website for compatible aggregates, accessories, and vessels!
Description
Powerful stand-disperser (Ecoline ), flexible-use disperser with EU-power cable (230 V )
PT 10-35 GT features high drive power and sleek design. With its large reserve capacity, it can be used for a sample with large volumes as easily as preparing samples with small volumes.
Drive Unit EU type E+F (CEE7/7) power cable
Comparison of different drive units
BENEFITS
Ergonomics
– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design
Results are convincing
– Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue
Technical Data
|
Min. Volume (ml) |
0.1 |
|
Max. Volume (ml) |
10000 |
|
Power (W) |
1200 |
|
Tip speed |
Up to max. 34 m/s |
|
Applicable aggregates |
ø 5 mm to ø 36 mm |
|
Speed range |
500 – 30 000 rpm |
|
Drive coupling |
Aggregates with F coupling |
|
Noise level (drive without aggregate) |
75 dB(A) at 25 000 rpm / 82 dB(A) at 30 000 rpm |
|
Motor |
Universal with carbon brushes |
|
Connection voltage |
90 – 230 V ± 10 %, 50Hz / 60Hz |
|
Relative humidity (max.) |
80 % during storage / 80 % during operation |
|
Operating temperature |
0 – 40 °C |
|
Protection class acc. to DIN |
IP 20 |
|
Dimensions (LxWxH) |
Drive: 95 x 210 x 247 mm |
|
Weight |
Drive: 3200 g |
|
EMC standards |
IEC / EN 61000-6-2 / EN 61000-6-3 |
|
Safety standard |
IEC / EN 61010-2-51 |
