Kern Digital Microscope Set OBN 135T241 - MSE Supplies LLC

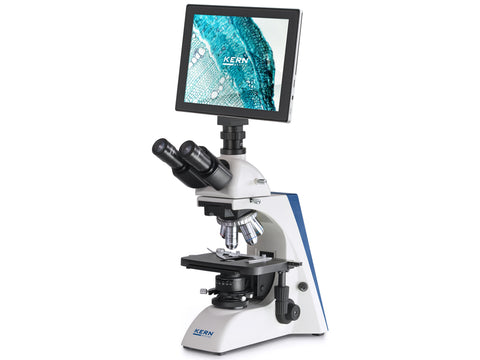

Kern Digital Microscope Set OBN 135T241

SKU: OBN 135T241

  • $ 3,15795



Kern Digital Microscope Set OBN 135T241

MSE Supplies offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

  • The laboratory microscopes from the OBN series are also available to you as a comprehensive digital solution with an mounted tablet camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
  • The mounted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.

OBN 135

  • The OBN- series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user.
  • Strong and continuously dimmable 3W-LED illumination
  • This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
  • The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately

ODC 241

  • As well as a live transfer of theimage to the Android tablet, the integrated 5-MP cameraalso means that images and videos can becreated for the documentation.Simple measuring functions, such as, for example, functionsfor measuring distance, surfaces andangles as well as a manual counting function arealso available
  • Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
  • A range of additional functions are provided through the integrated interfaces, such as, for example
    - Data storage on a USB stick or SD card
    - Connection to a USB mouse
    - Transfer of the live image to an external screen using HDMI
    - Transfer of stored data to external receivers using WLAN
  • The delivery includes the tablet camera with pre-installed software as well as the power pack

    Product Parameters

    Optical system Infinity
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 20 mm
    Standard objectives 4×, 10×, 20×, 40×, 100×
    Lens quality Infinity Plan
    Nosepiece screw-in locations 5
    Illuminance Transmitted light
    Illumination type transmitted light LED
    Illumination intensity transmitted light 3 W
    Illumination type incident light none
    Focusing mechanism coaxial coarse and fine drive
    Fine drive minimum 0,002 mm
    Display resolution 2048×1536
    Camera sensor type Sony CMOS
    Camera colour depth Colour
    Camera sensor size 1/2,8"
    Camera resolution 5 MP
    Interfaces WiFi standard, USB 2.0, HDMI, MicroSD card slot
    Camera framerate 30 fps
    C-Mount magnification 0,5 x
    Dimension (W×D×H) 390×235×620 mm
    Product family OBN-S

    About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

    MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
