Kern Digital Microscope Set OBE 134C832 - MSE Supplies LLC

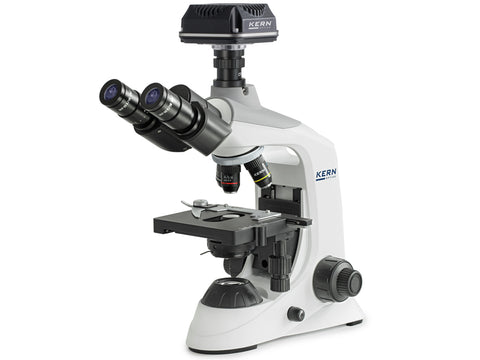

Kern Digital Microscope Set OBE 134C832

SKU: OBE 134C832

  • $ 1,61795


Kern Digital Microscope Set OBE 134C832

Buy Kern products from MSE Supplies at the best value.

MSE Supplies offers a Digital Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

A digital microscope is a variation of a traditional optical microscope in which a digital/microscope camera is connected, and image output is displayed on a screen and/or monitor. Most models include software and a computer for use. The magnification produced by a digital camera is determined by the size of the monitor an image is displayed on, giving it greater magnification capabilities than the average optical microscope. The power of magnification in a traditional microscope is determined by multiplying eyepiece magnification by objective lens magnification.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Product Features

  • Laboratory microscopes from the OBE range are now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an mounted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
  • The mounted C-mount camera is available in different versions and can be used anywhere
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.

OBE 134

  • The KERN OBE  stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank
  • The impressive, infinitely dimmable 3W LED guarantees bright illumination of your sample
  • A further highlight is the Butterfly tube which is integrated as standard and which enables you to achieve the ideal viewing angle. The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
  • Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on bothsides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly

ODC 832

  • Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
  • These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications.
  • Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
  • The power supply is through the USB cable, which means that no additional power supply is required
  • As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software.

      Product Parameters

      Optical system Finite
      Tube type Trinocular
      Ocular magnifications 10 x
      Ocular visual field 18 mm
      Standard objectives 4×, 10×, 40×, 100×
      Lens quality achromatic
      Nosepiece screw-in locations 4
      Illuminance Transmitted light
      Illumination type transmitted light LED
      Illumination intensity transmitted light 3 W
      Illumination type incident light none
      Focusing mechanism coaxial coarse and fine drive
      Fine drive minimum 0,002 mm
      Camera sensor type CMOS
      Camera colour depth Colour
      Camera sensor size 1/2,5"
      Camera resolution 5,1 MP
      Interfaces USB 3.0
      Camera framerate 14,2 - 101,2 fps
      Dimension (W×D×H) 360×150×390 mm
      Product family OBE-S

      About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

      MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
