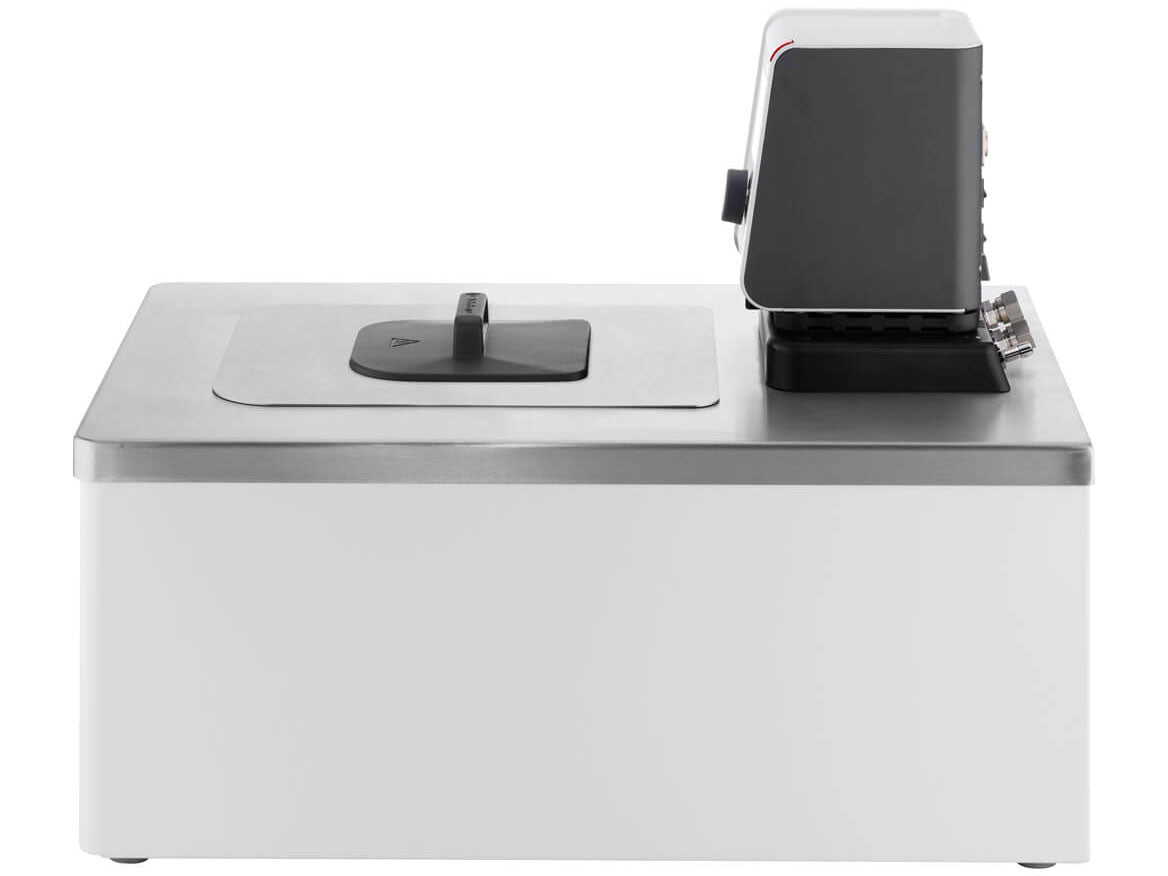

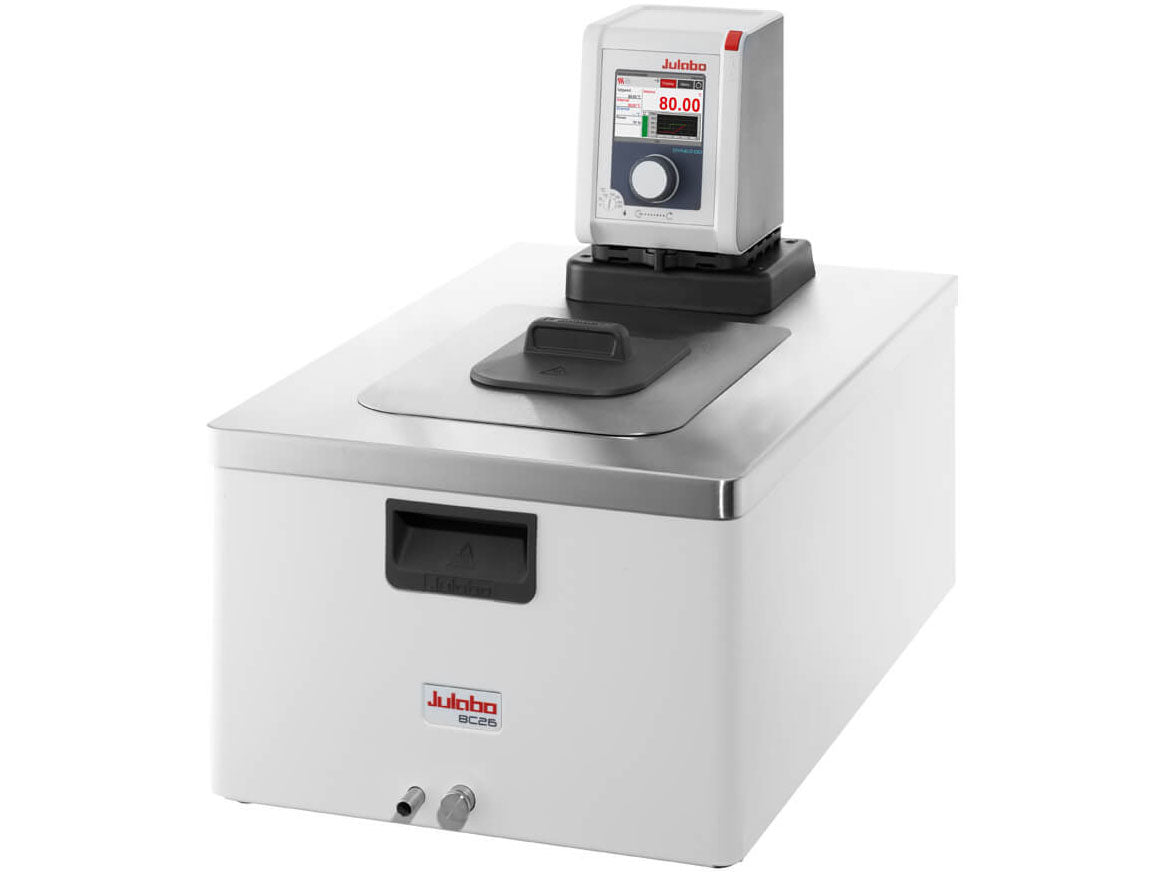

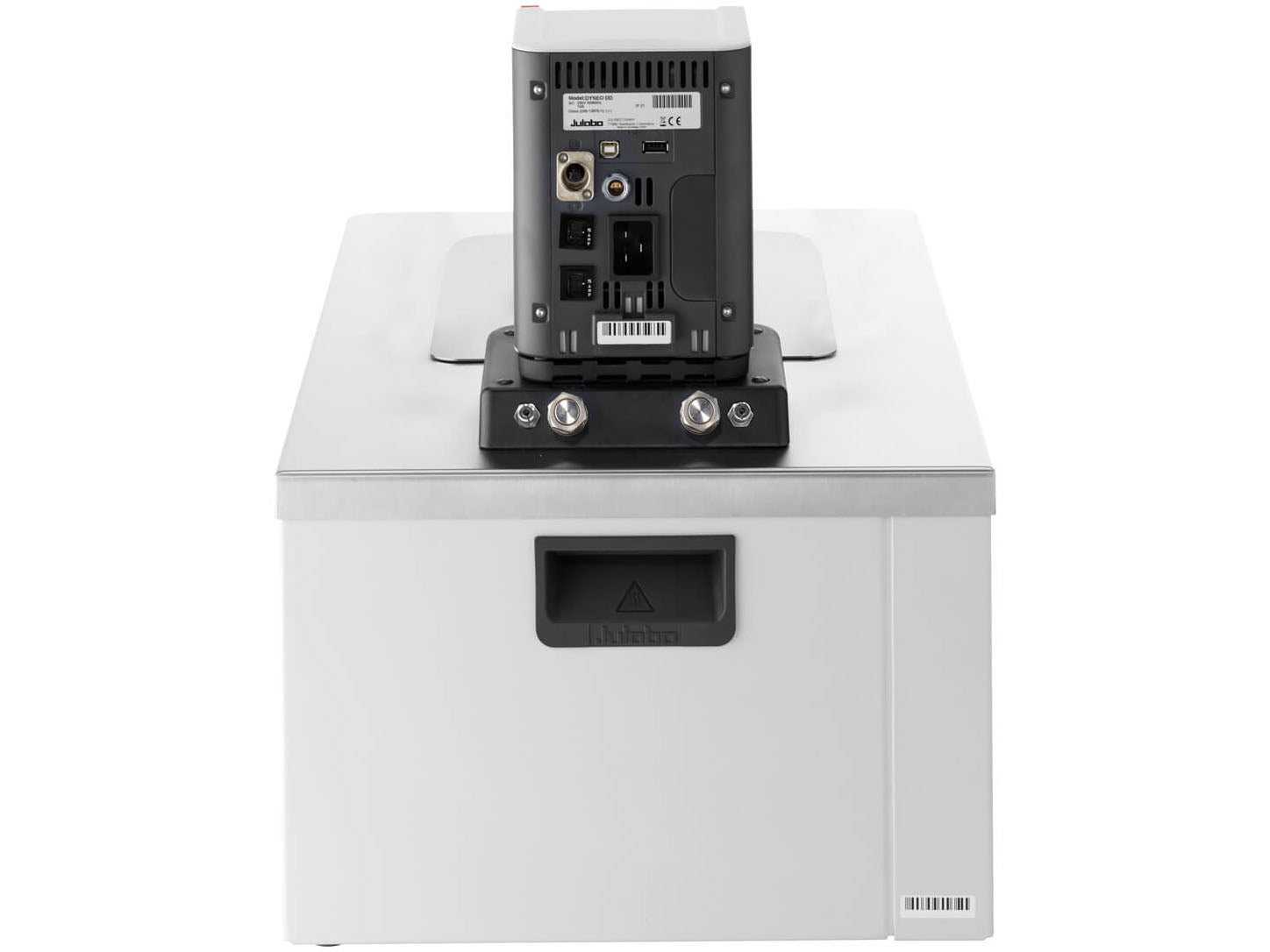

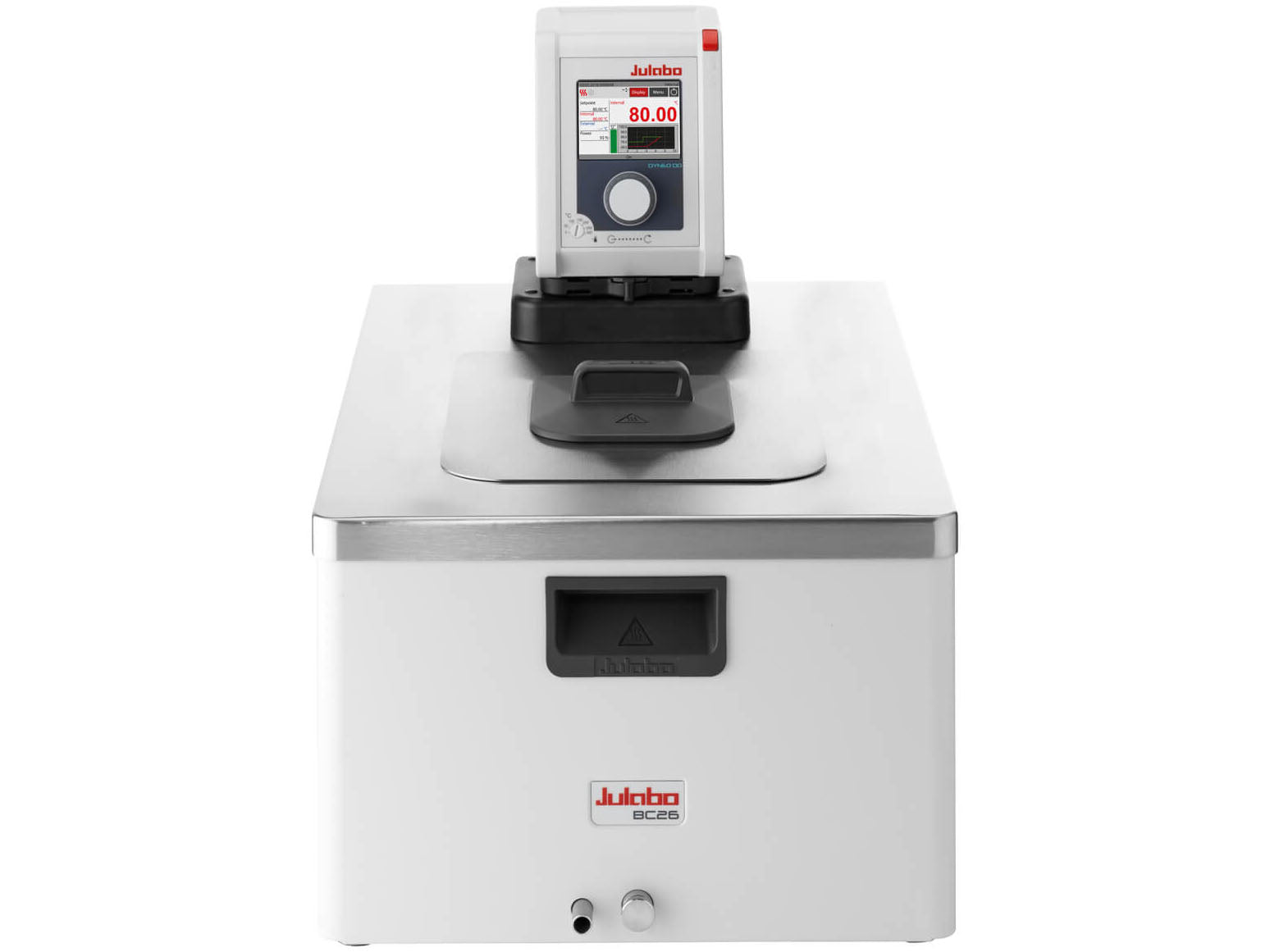

Julabo DYNEO DD-BC26 Heating Circulator
Julabo DYNEO DD-BC26 Heating Circulator
DYNEO™ heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank for temperatures to 200 °C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with integrated drain valve. Color TFT display with central rotary knob controller, multi-lingual interface, integrated programmer, Pt100 port for external temperature control. USB connection for external PC control and data-logging; Digital option includes RS232 port; analog option includes analog interface for voltage or current control. PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Specifications
|
Part Number |
9021526.22 |
9021526.22.A |
9021526.22.D |
9021526.33 |
9021526.33.A |
9021526.33.D |
9021526.22.A.CSA/UL |
|
Voltage Version |
100V-115V/50-60Hz |
100V-115V/50-60Hz |
100V-115V/50-60Hz |
200-230V/50-60Hz |
200-230V/50-60Hz |
200-230V/50-60Hz |
100V-115V/50-60Hz |
|
NRTL |
No |
No |
No |
No |
No |
No |
Yes |
|
Interface |
Base |
Analog |
Digital |
Base |
Analog |
Digital |
Analog |
|
Heating & Cooling |
Heating |
Heating |
Heating |
Heating |
Heating |
Heating |
Heating |
|
Working Temp Range (°C) |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
20 - 200 |
|
PCF Pressure (psi) |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
1.5 - 10.2 |
|
PCF Rate (l/min) |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
8 - 27 |
