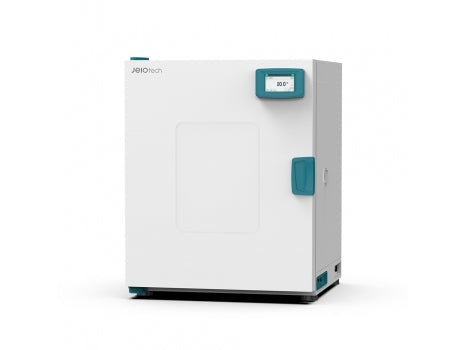

Jeio Tech Lab Companion Incubator, Forced Convection (Advanced, IB4-V)
SKU: AAH21653U
Jeio Tech Lab Companion Incubator, Forced Convection (Advanced, IB4-V)
Buy Lab Companion products from MSE Supplies at the best value.
MSE Supplies offers Lab Companion Autoclaves (Vertical Type) from Jeio Tech. Uniform temperature distribution through airflow optimized for uniform heat transfer and Opti-flow™, the fan speed control function based on sample and testing conditions
Country of Origin: Made in South Korea
Manufacturer: Jeio Tech
Main Features:
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- 'Wait on / Wait off' timer function.
- Opti-flow™, the fan speed control function based on sample and testing conditions.
- Stackable with stacking set (option) maximizes space utilization.
Accessories:
-
Wire shelf
- Perforated shelf
- Stacking Set
- LC DataKeeper
- BMS Port
- LC GreenBox (Mobile Monitoring System)
- Communication Port
- Water Tray
Technical Specifications:
| Model | IB4-03V | IB4-05V | IB4-10V | IB4-15V | ||
|---|---|---|---|---|---|---|
| SKU# | AAH21655K | AAH21665K | AAH21675K | AAH21685K | ||
| Electrical requirements (230V, 50 / 60Hz, A) | 3 | |||||
| SKU# |
AAH21653U | AAH21663U | AAH21673U | AAH21683U | ||
| Electrical requirements (120V, 60Hz, A) | 5.8 | |||||
| Chamber volume (L / cu ft) | 25 / 0.88 | 60 / 2.12 | 111 / 3.92 | 146 / 5.16 | ||
| Temperature | Range (℃ / ℉) | Amb. +51) to 80 / Amb. +9 to 176 |
||||
| Fluctuation at 37℃ (±℃ / ℉) | 0.10 / 0.18 | 0.15 / 0.27 | 0.10 / 0.18 | 0.10 / 0.18 | ||
| Variation at 37℃ (±℃ / ℉) | 0.23 / 0.41 | 0.41 / 0.74 | 0.39 / 0.70 | 0.35 / 0.63 | ||
| Heating time to 37℃ (min.) 1) | 5 | 4 | 8 | 7 | ||
| Recovery time at 37℃ (min.) | 5 | 4 | 4 | 3 | ||
| Control panel | 5 inch TFT Color LCD | |||||
| Communication interface | USB-B, RS-232 | |||||
| Function | Recently event record | 36 ea | ||||
| Recommended temperature | Suggest three frequently used temperature | |||||
| Graph | Available viewing stored and real-time graphs | |||||
| Data storage | Save your experiment data (in CSV format) | |||||
| Temp. ramping rate (℃/min. | ℉/min) | 0 to 8.0 | 0 to 14.4 | 0 to 6.0 | 0 to 10.8 | 0 to 5.0 | 0 to 9.0 | 0 to 4.0 | 0 to 7.2 | ||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 300 x 210 x 400 /11.81 x 8.27 x 15.75 |
380 x 330 x 480 /14.96 x 12.99 x 18.9 |
485 x 350 x 655 / 19.1 x 13.78 x 25.79 |
550 x 376 x 710 / 21.62 x 14.8 x 27.95 |
|
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
||
| Net weight (Kg / lbs) | 32 / 70.55 | 41 / 90.39 | 56 / 123.46 | 62 / 136.69 | ||
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 | |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | ||
About Jeio Tech: Jeio Tech products are put through rigorous quality control from the most basic metal processing to final inspections. Based on over 28 years of technical experience in instrument manufacturing, their highly integrated team of engineers strive to deliver outstanding quality to their clients. Their professional know-how will always keep their reputation as the primary partner for the customers research needs.
MSE Supplies is an authorized distributor for Jeio Tech.
