IKA VOL-SP-9 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025006846

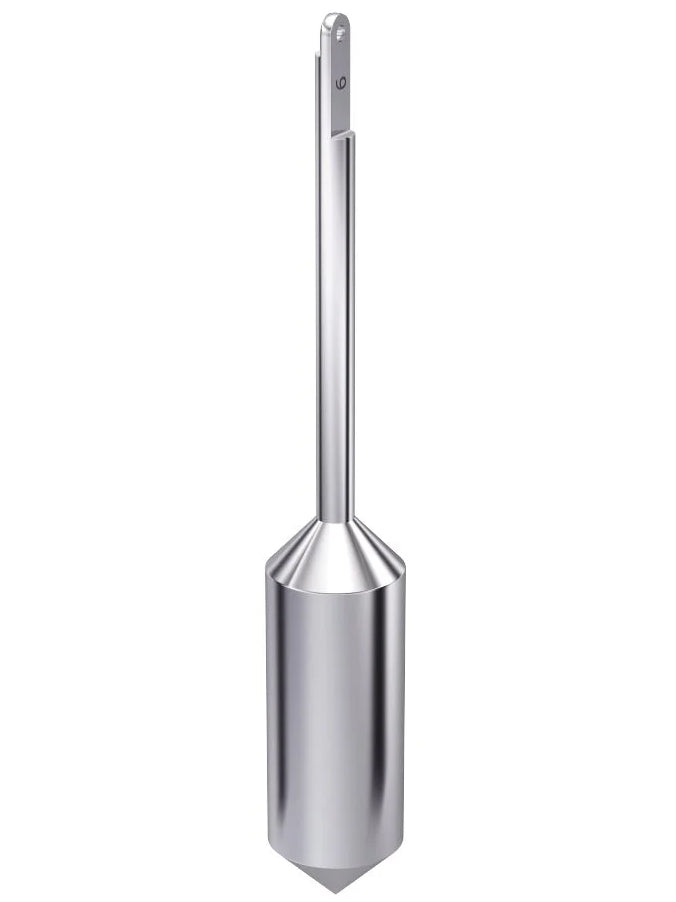

VOL-SP-9 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9 ml.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VOL-SP-9 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter | 11.8 mm |
| Immersion depth | 35.4 mm |
| Spindle length | 77.5 mm |
| Sample volume | 9 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 150 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 29994 mPa.s |
| Min. FSR match ROTAVISC me-vi | 1600 mPa.s |
| Max. FSR match ROTAVISC me-vi | 320000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 3200 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 640000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 12800 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 2560000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 14 x 80 x 14 mm |
| Weight | 0.028 kg |
| Permissible ambient temperature | 5 - 40 °C |
