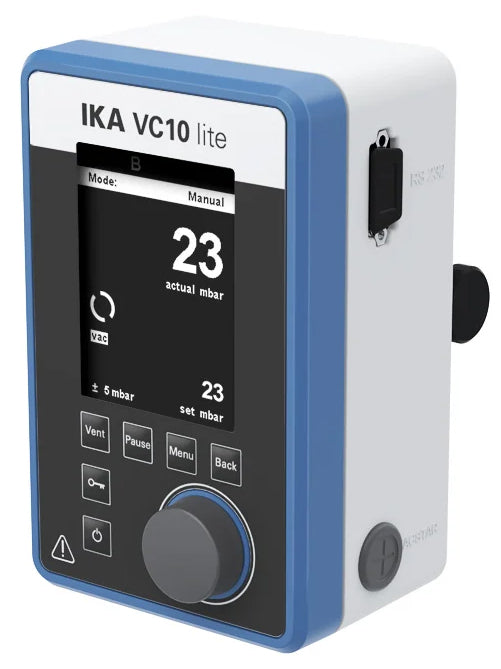

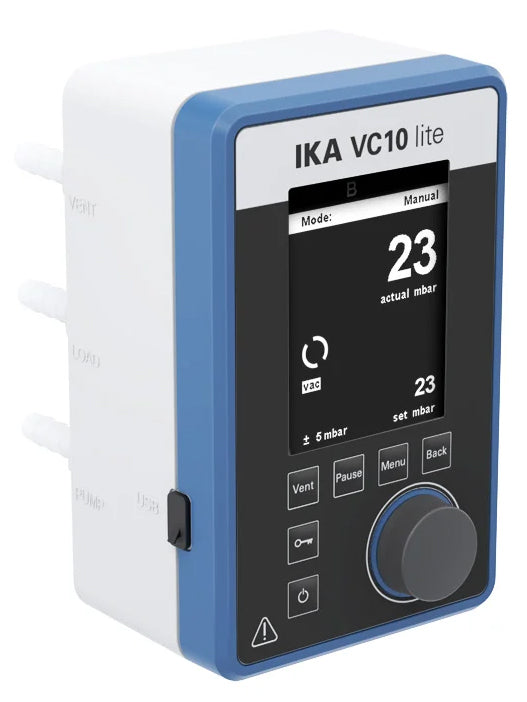

IKA VC 10 Lite Vacuum

  • $ 1,26795


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020111998

Speed-controlled, universal vacuum controller for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

VC 10 lite is only compatible with the vacuum pump VACSTAR digital. A cable connection between pump and controller is required.
Manual and programmable mode available.

Features:

  • Valve cleaning function for long service life
  • High energy efficiency thanks to device-to-device communication: control of the circulator by connecting the vacuum controller with PC 1.3 data cable (available as accessory)
  • Integrated ventilation valve for simple pressure equalization and aeration with inert gas after process completion
  • VENT short key button allows pressure equalization during a running process
  • Program function: up to ten user-defined programs can be saved, with up to ten pressure/time sequences
  • USB / RS232 interfaces for connection with the laboratory software labworldsoft®
  • Electronic control system for improved process efficiency and higher solvent recovery rate
  • High energy efficiency thanks to device-to-device communication (vacuum controller to recirculating chiller)

For additional safety for users and environment, the use of the VSE 1 vacuum safety emission condenser is recommended, which prevents solvents from being released into the room air. The VSE 1 is available as an accessory.

Scope of delivery

  • VC 10 lite
  • USB Cable - USB A to Micro-B, 2 m

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA VC 10 Lite Vacuum

Connection diameter suction side 8 mm
Connection diameter pressure side 8 mm
Connection diameter venting side 8 mm
Input pressure 1 - 1050 mbar
Solvent library yes
Analog speed vacuum control yes
Display TFT
Pressure unit / scale mbar, hPa, mmHg, Torr
Vacuum sensor yes
Vacuum sensor type ceramic Al2O3
Pressure max. for pressure sensor 1.6 bar
Measurement range (absolute) 1 - 1100 mbar
Control range 1 - 1100 mbar
Resolution pressure 1 mbar
Measurement uncertainty 1 mbar
Medium temperature (gas) 5 - 40 °C
Venting valve yes
Temperature measuring range max. 200 °C
Temperature measurement resolution 1 K
Accuracy of temperature measurement ±1 K
Timer yes
Time setting min. 1 s
Time setting max. 6000 min
Vacuum speed control interface VACSTAR
Material in contact with medium Al2O3, PTFE, FPM, PPS
Housing material PBT
Fastening stand / clamp
Fastening diameter 16 mm
Mode automatic yes
Mode manual yes
Mode pump % yes
Mode program yes
Graph function yes
Chiller control yes
Vacuum leakage test yes
Dimensions (W x H x D) 95 x 150 x 110 mm
Weight 1.284 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 24 W
Power input standby 2 W
DC Voltage 24 V=
Current consumption 1000 mA
