IKA VAN-1 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000407

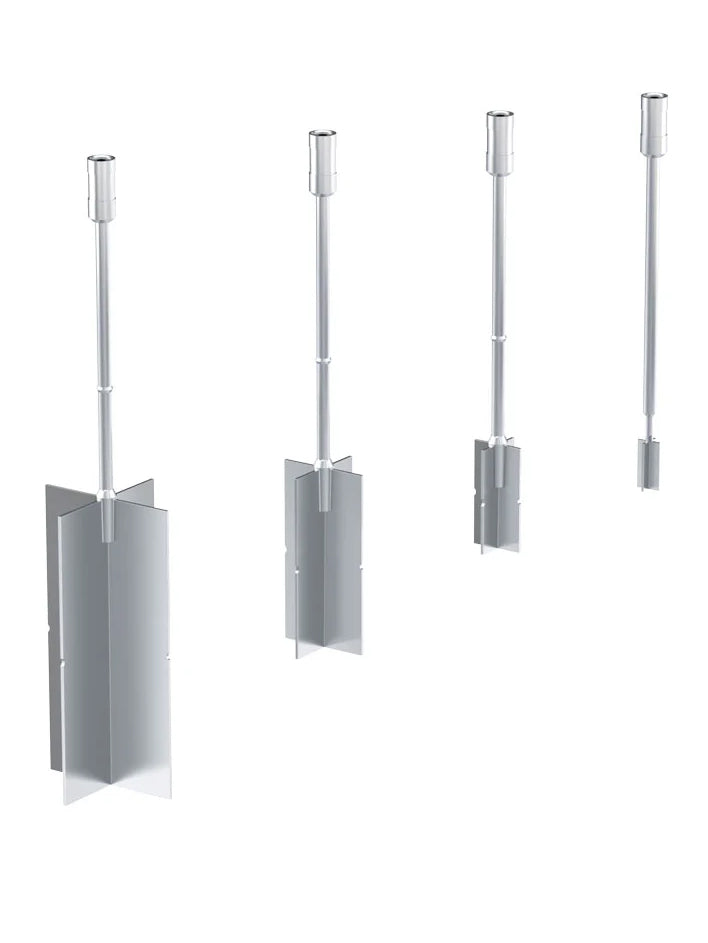

The vane spindle set allows the viscosity measurement of suspensions. Four vane spindles are included in the delivery.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VAN-1 Viscometers
| Spindle geometry | Vane |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Sample volume | 500 ml |
| Sample container: | 600mL beaker low |
| Working temperature max. | 300 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 24.6 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 5100000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 262 mPa.s |
| Max. FSR match ROTAVISC me-vi | 54300000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 524 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 108600000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 2100 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 434000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 160 x 82 x 270 mm |
| Weight | 0.432 kg |
| Permissible ambient temperature | 5 - 40 °C |
