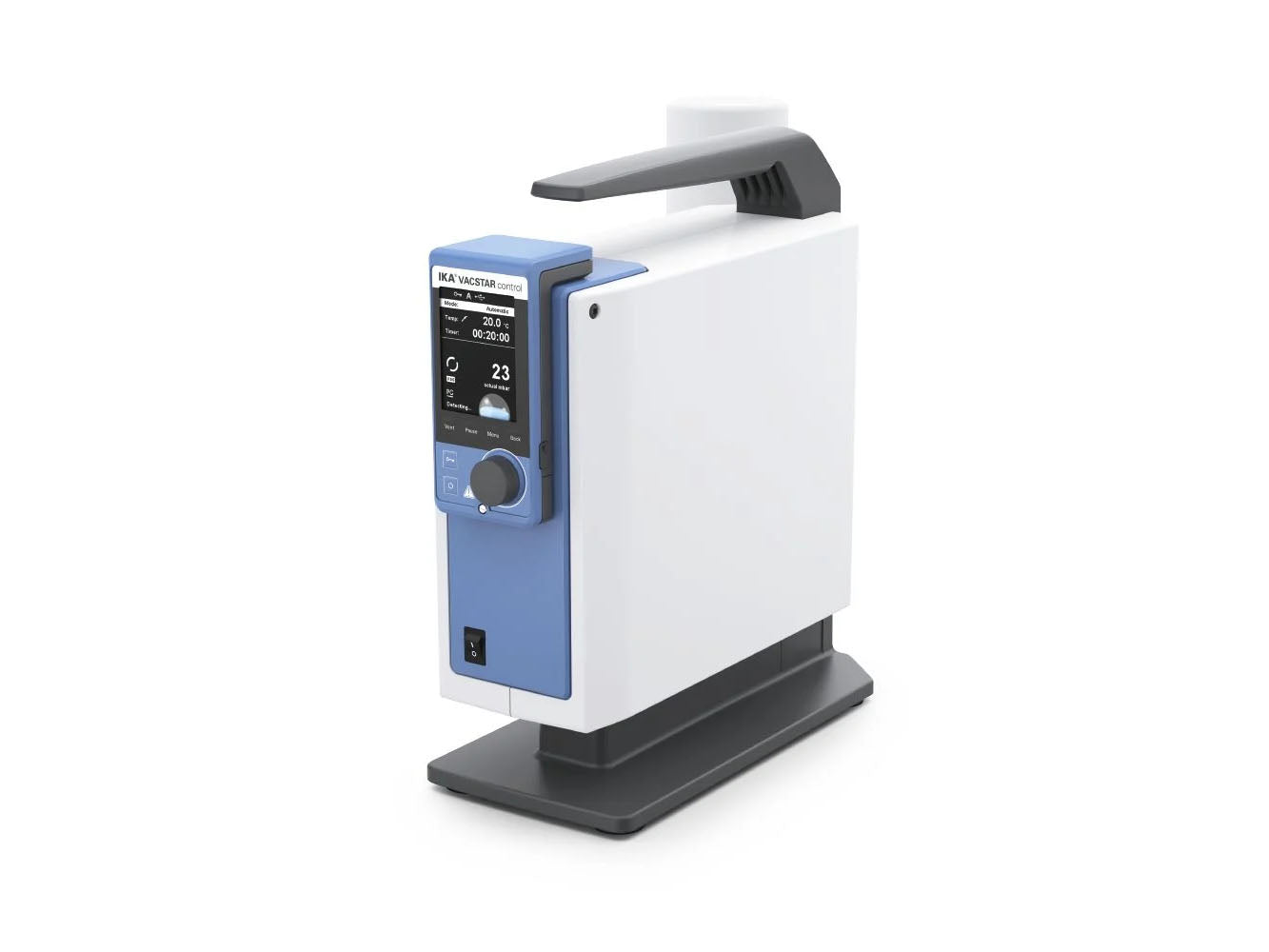

IKA VACSTAR Control Vacuum Pump

  • $ 4,90196

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020109376

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function.

High-performance suction
VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar.

Integrated vacuum controller with removable controller (WiCo)
Depending on the application, you can easily select your operating mode either by using the intuitive operator menu or by remote control.

For additional safety for users and environment, we recommend using the VSE 1 vacuum safety emission condenser, which prevents solvents from being released into the room air. The VSE 1 is available as accessory.

Scope of delivery

  • WiCo VACSTAR control
  • Vacuum hose (1 m)
  • WH11
  • OS 1.0 WiCo power supply unit
  • USB Cable - USB A to Micro-B, 2 m
  • USB A - USB B cable
  • Screw driver

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA VACSTAR Control Vacuum Pump

Pump rate max. (50/60Hz) 1.32 m³/h
Pump rate max. (50/60Hz) 22 l/min
Final pressure without gas ballast 2 mbar
Suction levels 4
Cylinder 4
Connection diameter suction side 8 mm
Connection diameter pressure side 8 mm
Input pressure 2 - 1030 mbar
Boiling point detection yes
Solvent library yes
Analog speed vacuum control yes
Speed adjustment Turning knob
Speed range 285 - 1200 rpm
Display TFT
Pressure unit / scale mbar, hPa, mmHg, Torr
Vacuum sensor yes
Vacuum sensor type ceramic Al2O3
Pressure max. for pressure sensor 1.2 bar
Measurement range (absolute) 1 - 1030 mbar
Control range 1 - 1030 mbar
Resolution pressure 1 mbar
Measurement uncertainty 1 mbar
Venting valve yes
Condensate trap yes
Emission condenser yes
Timer yes
Noise at low. pressure 54 dB(A)
Material in contact with medium Al2O3, PTFE, FPM, PPS
Housing material alu-cast coating / thermoplastic polymer
Mode automatic yes
Mode manual yes
Mode pump % yes
Mode program yes
Dimensions (W x H x D) 270 x 435 x 500 mm
Weight 14 kg
Permissible ambient temperature 5 - 40 °C
Permissible ambient conditions 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 140 W
Power input standby 1.5 W
