IKA UTL 25 Digital Inline ULTRA-TURRAX® Dispersers (25000 rpm) - MSE Supplies LLC

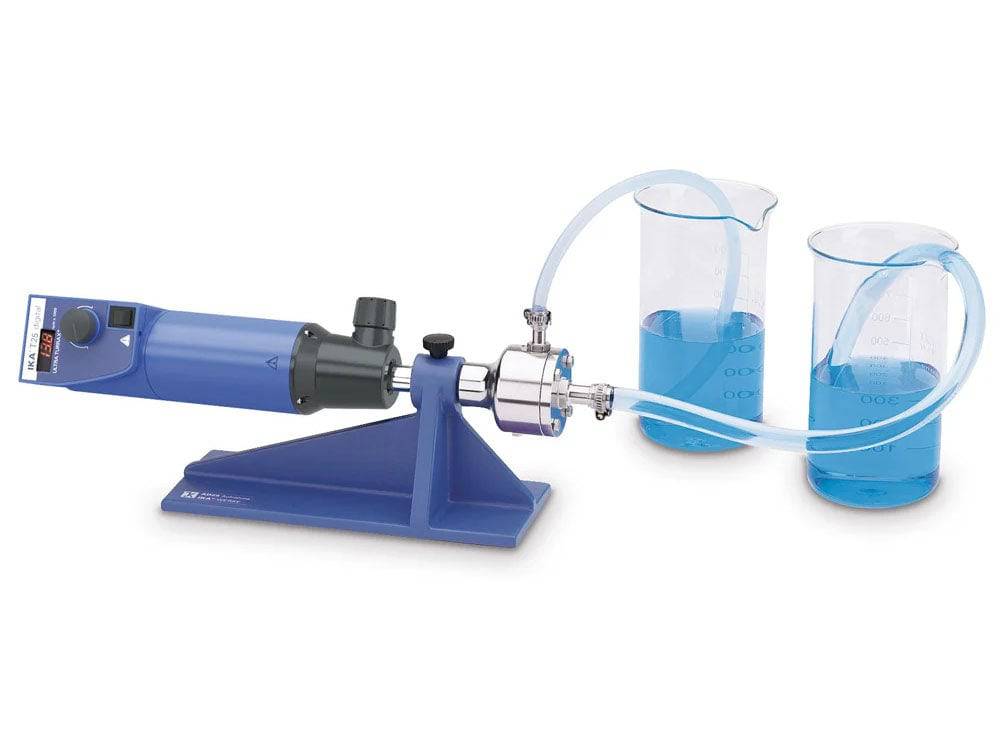

IKA UTL 25 Digital Inline ULTRA-TURRAX® Dispersers

  • $ 11,95100


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010006865

For circulation or flow-through processing in the laboratory.

  • Simple, compact and sturdy modular design
  • Sterilizable, autoclave-compatible
  • Table-top or stand-supported device, low space requirement
  • Easy disassembly
  • Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
  • For air-free, sterile, and inline suspension, emulsifying and deagglomeration
  • For vacuum or pressurized operation (up to 6 bar)
  • If the DK 25.11 is used, air induction is also prevented in batch operation
  • Not self-priming
  • A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
  • Not suitable for continuous operation or cyclical continuous operation

Scope of delivery

  • T 25 digital ULTRA-TURRAX®
  • DK 25.11 flow chamber
  • AD 25 mounting support
  • S 25 KV - 25 G-IL dispersing tool

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA UTL 25 Digital Inline ULTRA-TURRAX® Dispersers

Motor rating input 500 W
Motor rating output 300 W
Pump rate 11.6 l/min
Speed range 3000 - 25000 rpm
Speed display scale
Speed adjustment stepless
Noise without element 73 dB(A)
Extension arm diameter 13 mm
Extension arm length 175 mm
Chamber volume 26 ml
Attainable vacuum 1 mbar
Pressure max. 6 bar
Process type inline
Dimensions (W x H x D) 450 x 120 x 100 mm
Weight 3.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
Voltage 230 V
Frequency 50/60 Hz
Power input 500 W
